🔧 Jetta - Spark Plug Replacement

On your Jetta, the spark plugs sit under the ignition coils on top of the engine. Replacing worn plugs helps prevent misfires, rough idle, and poor fuel economy, and it keeps your turbo engine running smoothly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ Don’t over-tighten spark plugs; the cylinder head is aluminum.
• ⚠️ Battery disconnect is not required, but keep the ignition OFF and the key away from the car while unplugging coils.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 3/8" ratchet
• 3/8" extension set
• Torque wrench (3/8" drive, 5–60 Nm range)
• 14mm thin-wall 12-point spark plug socket (magnetic or rubber insert)
• Torx T30 bit
• Trim/panel removal tool
• Ignition coil puller (specialty)
• Compressed air or air blower
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-equivalent for 1.4L turbo) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1 hour after driving).
• Lay out parts and tools so nothing falls into the engine bay.
• Take one coil off at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use a trim/panel removal tool and your hands to pull the engine cover straight up (it’s held by rubber grommets).
• Use a flashlight to locate the ignition coils (4 coils, one per cylinder).

Step 2: Unplug the ignition coil electrical connectors

• Use a trim/panel removal tool to gently help lift the connector lock (if equipped), then pull the connector off the coil.
• Don’t pull on the wires—only the connector body.

Step 3: Remove the ignition coils

• If your coils have hold-down bolts: use a Torx T30 bit with a 3/8" ratchet to remove the bolt(s) for that coil.
• Use an ignition coil puller (specialty) to pull the coil straight upward. (A coil puller is a tool that grips the coil so you can pull it out without cracking it.)
• Set the coil aside in a clean spot.

Step 4: Blow out the spark plug wells

• Use compressed air or air blower to blow around each spark plug hole before removing the plug.
• This prevents sand/dirt from falling into the cylinder.

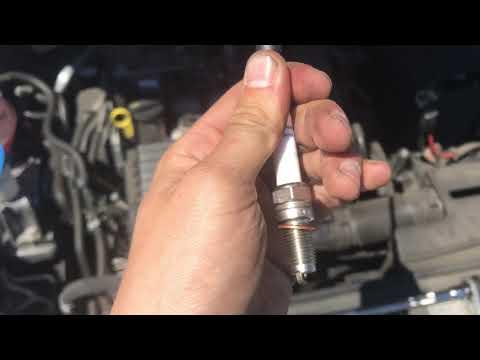

Step 5: Remove the old spark plug

• Install the 14mm thin-wall 12-point spark plug socket on a 3/8" extension and 3/8" ratchet.
• Turn counterclockwise to remove the spark plug, then lift it out with the socket.
• If it feels extremely tight, stop and recheck that the engine is cool.

Step 6: Install the new spark plug (by hand first)

• Put the new plug into the spark plug socket and lower it into the hole.
• Use only the 3/8" extension (no ratchet at first) to thread it in by hand several turns.
• Hand-threading prevents cross-threading.
• Set your torque wrench and tighten the spark plug: Torque to 23 Nm (17 ft-lbs).
• Do not change the gap on fine-wire/iridium plugs unless the plug maker specifically allows it.

Step 7: Reinstall the ignition coil

• Apply a very thin smear of dielectric grease inside the coil boot. (Dielectric grease is a non-conductive grease that helps prevent moisture and makes removal easier later.)
• Push the coil straight down until it fully seats on the spark plug.
• If your coils use hold-down bolts: install the bolt with a Torx T30 bit, then use a torque wrench to tighten: Torque to 8 Nm (71 in-lbs).
• Reconnect the electrical connector until it clicks into place.

Step 8: Repeat for the remaining cylinders

• Repeat Steps 2–7 one cylinder at a time until all 4 plugs are replaced.

Step 9: Reinstall the engine cover

• Align the cover with the mounting points and press down firmly by hand until it snaps into the grommets.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds.
• Listen/feel for a smooth idle (no shaking) and confirm there’s no check engine light.
• If you have a scan tool, check for misfire codes and clear any stored history codes if appropriate.
• Road test for 10–15 minutes and recheck that everything feels normal.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$140 (parts only)

You Save: $110-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
