🔧 Santa Fe XL - Spark Plug Replacement

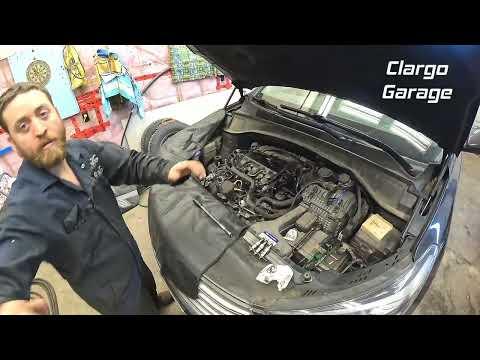

On your Santa Fe XL, replacing spark plugs means removing the ignition coils, then removing and installing six plugs (3 in the front bank, 3 in the rear bank). The rear bank sits under the upper intake manifold (“plenum”), so you’ll remove that to reach the back three plugs.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and damaged threads.
• ⚠️ Disconnect the negative battery terminal before unplugging coils and throttle body connectors.
• ⚠️ Keep dirt out of the intake ports—cover openings with clean shop towels immediately.
• ⚠️ Do not over-tighten spark plugs; aluminum cylinder head threads can strip.
• ⚠️ If a hose feels stuck, don’t yank—twist gently with pliers.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" torque wrench (5–60 Nm range)
• 6" extension (3/8")
• 10"–12" extension (3/8")
• 3/8" wobble extension
• 5/8" spark plug socket (thin-wall, rubber insert)
• Flat trim tool
• Needle-nose pliers
• Pick tool
• Compressed air blow gun
• Shop towels
• Masking tape and marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-spec for Santa Fe XL 3.3L) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease (for coil boots) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1–2 hours).
• Use masking tape and marker to label any hoses/connectors you disconnect. This prevents mix-ups later.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Pull up firmly on the plastic engine cover to release the rubber grommets (no tools).

Step 2: Remove the air intake duct (to create working room)

• Use a 10mm socket to loosen the intake duct clamps (if equipped with clamp bolts).
• Disconnect any small breather hose using needle-nose pliers (squeeze the spring clamp, then slide it back).
• Lift the duct out and set it aside.

Step 3: Replace the FRONT bank spark plugs (radiator-side)

• Unplug each ignition coil connector by pressing the lock tab (use a pick tool gently if the tab is stubborn).
• Remove each coil hold-down bolt with a 10mm socket.
• Twist the coil boot slightly, then pull the coil straight up and out.
• Blow out the spark plug wells using compressed air blow gun so debris can’t fall into the cylinders.
• Remove each plug using a 5/8" spark plug socket, 3/8" ratchet, and a 6" extension.
• Install the new plug by hand first using the spark plug socket and extension (no ratchet) to avoid cross-threading.
• Tighten each spark plug with a 3/8" torque wrench: Torque to 24 Nm (18 ft-lbs).
• Apply a thin smear of dielectric grease inside each coil boot (it helps prevent moisture and eases future removal).
• Reinstall coils and coil bolts using a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Reconnect the coil connectors until they click.

Step 4: Remove the upper intake manifold (plenum) to access the REAR bank

• Label hoses/connectors with masking tape and marker before disconnecting.
• Disconnect the throttle body electrical connector by pressing the lock tab (use a pick tool gently if needed).
• Disconnect vacuum/PCV/EVAP hoses from the plenum using needle-nose pliers where spring clamps are used.
• Remove plenum mounting bolts/nuts using a 12mm socket with a 10"–12" extension.
• Carefully lift the plenum straight up. If it sticks, gently work around it with a flat trim tool—don’t pry hard.
• Immediately cover the exposed intake ports with shop towels so nothing falls in.

Step 5: Replace the REAR bank spark plugs (firewall-side)

• Remove the rear bank coils the same way as the front: unplug connectors, remove coil bolts with a 10mm socket, then pull coils out.
• Blow out the rear plug wells using the compressed air blow gun.
• Remove rear plugs using a 5/8" spark plug socket, 3/8" ratchet, and a wobble extension as needed for angle clearance.
• Hand-start each new plug, then torque with a 3/8" torque wrench: Torque to 24 Nm (18 ft-lbs).
• Reinstall rear coils and coil bolts: Torque to 9 Nm (80 in-lbs).
• Reconnect all rear coil connectors.

Step 6: Reinstall the upper intake manifold (plenum) with new gaskets

• Remove the shop towels from the intake ports.
• Replace the plenum gaskets with the new upper intake manifold gasket set (install them fully seated in their grooves).
• Set the plenum in place carefully without pinching any wiring or hoses.
• Install bolts/nuts finger-tight first, then tighten evenly using a 12mm socket.
• Tighten with a 3/8" torque wrench: Torque to 18 Nm (13 ft-lbs).
• Reconnect all vacuum/PCV/EVAP hoses (match your labels) and all electrical connectors until they click.

Step 7: Reinstall the intake duct and engine cover

• Reinstall the intake duct and tighten clamps using a 10mm socket.
• Reconnect any breather hose using needle-nose pliers for the spring clamp.
• Push the engine cover back onto its mounting grommets.

Step 8: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. It may idle slightly rough for a few seconds while it re-learns.
• Listen for air leaks (hissing) around the intake manifold area.
• If you get a check engine light or misfire, re-check coil connectors, vacuum hoses, and that every plug is fully torqued.
• Test drive 10–15 minutes, then recheck for any loose clamps or hoses.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
