🔧 Ranger - Spark Plug Replacement

On your Ranger’s 2.3L turbo engine, spark plugs wear over time and can cause misfires, rough idle, poor fuel economy, and hard starting. This job is straightforward because it uses coil-on-plug ignition (one ignition coil per cylinder) and the plugs are serviced from the top of the engine.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🧤 Work on a fully cool engine to avoid burns and damaged threads in the aluminum cylinder head.
• 🔌 If you disconnect the battery, use a 10mm socket and isolate the negative cable so it can’t spring back.
• 🔥 Keep tools and rags away from hot turbo/charge pipes if the truck was recently driven.
• ⚠️ Do not use anti-seize on spark plug threads unless the plug manufacturer specifically requires it; Ford-style plated plugs are typically installed dry.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (5-30 ft-lbs range)
• 1/4" drive torque wrench (30-150 in-lbs range)
• 8mm socket
• 5/8" spark plug socket
• 3/8" drive extension set (3" and 6")
• Small flat trim tool
• Compressed air blow gun
• Feeler gauge (spark plug gap gauge)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (2.3L turbo) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1 hour after driving).
• Optional but recommended: disconnect the negative battery terminal using a 10mm socket.
• If you’re chasing a misfire, write down any cylinder-specific code (example: P0302 = cylinder 2) before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Put on safety glasses and nitrile gloves.
• Grip the engine appearance cover and pull upward to release it from the rubber grommets.
• If any corner feels stuck, use a small flat trim tool to gently pry up at the edge.

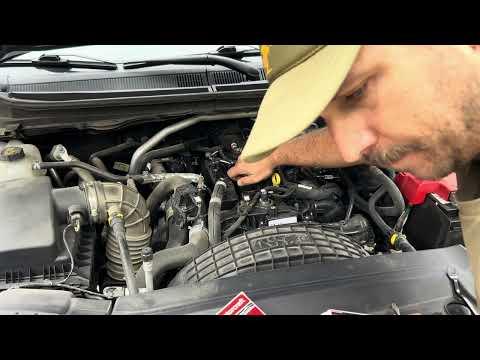

Step 2: Disconnect and remove ignition coil #1

• Locate the first ignition coil on the top of the valve cover.
• Press the electrical connector tab and unplug it (use the small flat trim tool if the tab is stubborn).
• Remove the coil hold-down bolt using an 8mm socket and 1/4" drive ratchet.
• Twist the coil boot slightly, then pull the coil straight up and out.
• Don’t yank on the wiring.
• Torque to 8 Nm (71 in-lbs) when reinstalling the coil bolt.

Step 3: Clean the spark plug well

• Before removing the plug, blow out the tube (spark plug well) using a compressed air blow gun.
• This prevents dirt from falling into the cylinder when the plug comes out.

Step 4: Remove the spark plug

• Install a 5/8" spark plug socket on a 3/8" drive extension (6") and 3/8" drive ratchet.
• Lower the socket straight down onto the plug and loosen it counterclockwise.
• Lift the spark plug out carefully with the socket.
• If it feels unusually tight, stop and work it gently back and forth to avoid thread damage.

Step 5: Check and prep the new spark plug

• Use a feeler gauge (spark plug gap gauge) to verify the plug gap matches the specification for the plug set you bought (many Motorcraft-style plugs come pre-gapped—verify, don’t force-bend).
• Apply a tiny amount of dielectric grease inside the ignition coil boot only (dielectric grease is a silicone grease that helps prevent moisture and boot sticking).
• Do not apply grease to the plug’s electrode or threads.

Step 6: Install the new spark plug

• Start the plug by hand using the 5/8" spark plug socket and extension only (no ratchet at first) to avoid cross-threading.
• Once it’s fully seated, torque it using a 3/8" drive torque wrench (5-30 ft-lbs range).
• Torque to 15 Nm (11 ft-lbs).
• Hand-starting prevents expensive thread damage.

Step 7: Reinstall the ignition coil

• Push the coil straight down until it fully seats on the spark plug.
• Install the coil bolt with an 8mm socket, then torque with a 1/4" drive torque wrench (30-150 in-lbs range).
• Torque to 8 Nm (71 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 8: Repeat for the remaining cylinders

• Repeat Steps 2 through 7 for the other three ignition coils and spark plugs.
• Keep parts organized so each coil bolt goes back to its original location.

Step 9: Reinstall engine cover and reconnect battery (if disconnected)

• Press the engine cover back onto its grommets until it seats evenly.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket and tighten it snug.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• If you had a check-engine light for misfire, recheck for codes if the light returns (a loose coil connector is a common mistake).
• Take a short test drive and confirm normal power under light acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
