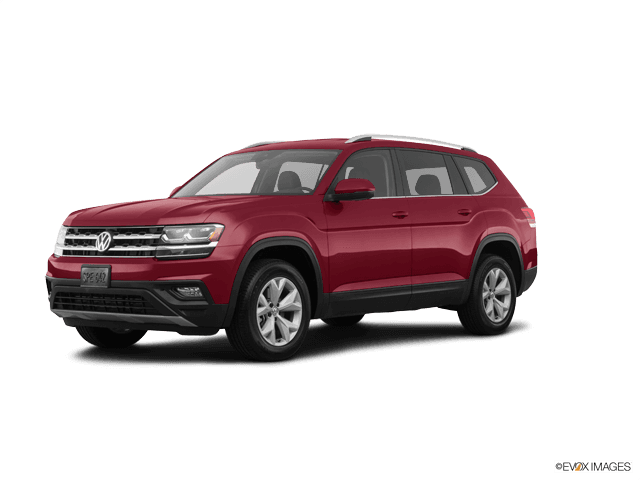

🔧 Atlas - Spark Plug Replacement

Replacing the spark plugs restores strong ignition, smooth idle, and good fuel economy. On your Atlas, you’ll remove the ignition coils (the “stick” units on top of the engine) and swap the plugs underneath them.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• 🧤 Work on a fully cool engine to avoid burns and stripped plug threads.
• 🧯 Keep dirt out of the plug holes—debris can damage the engine.
• 🔌 Do not pull on wiring; press connector locks and pull by the plug body.
• 🔋 Battery disconnect is not required, but keep the key away from the vehicle while unplugging coils.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fender cover
• Scan tool (basic OBD2)
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal joint
• Torque wrench (5–60 Nm range)
• 16mm spark plug socket (thin-wall, rubber insert)
• 10mm socket
• Torx T30 bit socket
• Small flat trim tool
• Needle-nose pliers
• Compressed air blow gun
• Shop vacuum
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-spec for Atlas 3.6L) - Qty: 6
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• ❄️ Let the engine cool completely (at least 1–2 hours after driving).
• 🧹 Use the shop vacuum to clean loose dirt around the engine cover and coil area.
• 🔎 Take a quick photo of coil connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Pull up to remove the engine cover (it’s held by rubber grommets). Use a small flat trim tool gently if it’s stuck.
• If the intake snorkel/ducting blocks access, loosen/remove it using a 10mm socket and/or Torx T30 bit socket (fasteners vary by duct piece).
• Set hardware aside in a tray so nothing gets lost.

Step 2: Unplug the ignition coil connectors

• Each coil has an electrical connector. Use a small flat trim tool to lift the connector lock (if equipped), then unplug by pulling on the connector body.
• Don’t yank on wires.

Step 3: Remove the ignition coils

• Remove coil hold-down fasteners using a Torx T30 bit socket (if equipped) or 10mm socket (some setups use bolts).
• Twist each coil slightly and pull straight up to remove it.
• Uncommon tool note: A “universal joint” is a wobble connector that helps your socket reach bolts at an angle.

Step 4: Clean the spark plug wells

• Before removing any plug, blow out each plug well using compressed air blow gun.
• If needed, use the shop vacuum around the wells to capture debris.
• Clean first to prevent grit entering the engine.

Step 5: Remove the old spark plugs

• Use a 16mm spark plug socket (thin-wall, rubber insert) with a 3/8" drive ratchet and the needed 3/8" drive extensions to loosen and remove each plug.
• If a plug feels extremely tight, stop and work it out slowly (tighten a hair, loosen a hair) to protect the threads.

Step 6: Install the new spark plugs

• Confirm the new plugs match the old ones in length and seat style.
• Start each plug by hand using the 16mm spark plug socket and a 3/8" drive extension (no ratchet at first) to prevent cross-threading.
• Once seated, tighten with a torque wrench: Torque to 30 Nm (22 ft-lbs).
• Do not use anti-seize unless the plug maker specifies.

Step 7: Reinstall ignition coils

• Apply a very small smear of dielectric grease inside each coil boot (the rubber end) to help prevent moisture and ease future removal.
• Push each coil straight down until fully seated.
• Install coil fasteners using a Torx T30 bit socket or 10mm socket, then tighten with a torque wrench: Torque to 9 Nm (80 in-lbs).

Step 8: Reconnect everything and reinstall covers

• Reconnect all coil electrical connectors (make sure locks click into place).
• Reinstall any intake ducting removed using a 10mm socket and/or Torx T30 bit socket.
• Reinstall the engine cover by aligning grommets and pressing down firmly.

---

✅ After Repair

• 🔍 Start the engine and let it idle for 1–2 minutes. It should run smooth with no shaking.
• 🧭 If you have a check engine light or misfire before/after, scan using a basic OBD2 scan tool and note any codes.
• 🚗 Test drive 10–15 minutes, then recheck that nothing is loose and there are no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$650 (parts + labor)

DIY Cost: $60–$140 (parts only)

You Save: $210–$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
