🔧 RAV4 - Spark Plug Replacement

You’ll be replacing all four spark plugs on your RAV4. This helps restore smooth running, better fuel economy, and easier starting as plugs wear out over time.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a completely cold engine; hot engine parts can burn you and hot aluminum threads are easier to damage.
• 🧤 Keep metal tools away from the battery positive terminal to avoid sparks or short circuits.
• 🧯 Do not pull or twist ignition coil wires; always use the connector tab to unplug.
• 🔌 You do not need to disconnect the battery for this job, but do not turn the key on while coils are unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (inch-lb and ft-lb scale)
• 🧰 10mm socket
• 🧰 14mm spark plug socket (magnetic or rubber insert)
• 🧰 3/8" drive extension (6")
• 🧰 Flathead screwdriver (medium size)
• 🧰 Needle-nose pliers
• 🧰 Feeler gauge set
• 🧰 Small wire brush
• 🧰 Compressed air can or air blower
• 🧰 Clean shop rags
• 🧰 Mechanic gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

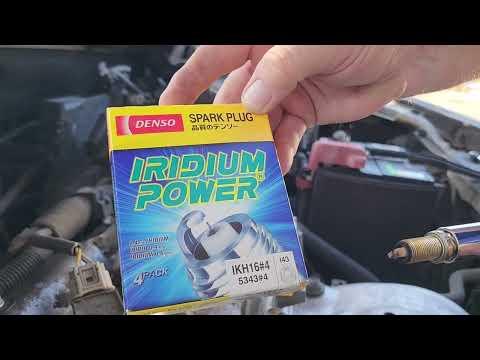

• 🔩 Iridium spark plugs (OEM spec for 2.5L 2AR-FE) - Qty: 4
• 🔩 Dielectric grease (for ignition coil boots) - Qty: 1 small tube
• 🔩 Anti-seize compound (spark plug safe, optional) - Qty: 1 small tube
• 🔩 Throttle body/intake cleaner (for light cleaning, optional) - Qty: 1 can
• 🔩 Shop towels or paper towels - Qty: as needed

---

📋 Before You Begin

• 🅿️ Park the RAV4 on level ground, shift to P, and set the parking brake.
• ⏱️ Let the engine cool for at least 45–60 minutes if it has been running.
• 🔎 Open the hood and use the hood prop rod to secure it.
• 📸 Take a quick photo of the top of the engine so you remember wire and hose routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use your hands to firmly pull up on the plastic engine cover; it is held by rubber grommets that pop off studs.
• If it feels stuck, gently pry up near the corners using the flathead screwdriver with a rag underneath to avoid scratching.
• Set the cover aside in a safe place.

Step 2: Identify the ignition coils

• Look at the top of the engine: you’ll see four black ignition coils in a row, each with an electrical connector. These sit on top of the spark plugs.
• An ignition coil makes high-voltage spark from battery power.
• Blow away any loose dirt around the coils with the compressed air so it does not fall into the spark plug holes later.

Step 3: Unplug the ignition coil connectors

• On the first coil, press down on the plastic tab of the connector with your thumb or the tip of the flathead screwdriver.
• While pressing the tab, pull the connector straight back; do not pull on the wires.
• If stubborn, gently wiggle while pulling. You can use needle-nose pliers carefully on the plastic body, not the wires.
• Repeat for all four coils, one by one.

Step 4: Remove the ignition coils

• Use the 10mm socket and ratchet to remove the single small bolt holding each coil to the valve cover.
• Put the bolts in a small tray so they don’t get lost.
• Grab the first coil at the top and gently twist and pull it straight up. It may feel stuck due to the rubber boot seal.
• Remove all four coils and line them up in order so you know which cylinder they came from (front of vehicle is cylinder #1).

Step 5: Clean around spark plug holes

• Look down into each spark plug well; if you see dirt or debris, blow it out with compressed air before removing the spark plugs.
• Never let dirt fall into the cylinder.

Step 6: Remove the old spark plugs

• Attach the 14mm spark plug socket to the 6" extension and then to the ratchet.
• Lower the socket straight down into the first spark plug hole until it fully seats on the plug.
• Turn the ratchet counterclockwise to loosen the spark plug; it will feel tight at first, then easier.
• Once fully loose, carefully pull the extension and socket up; the spark plug should come out with it (the socket’s rubber/magnet holds it).
• Repeat for all four plugs, one at a time.

Step 7: Check and gap the new spark plugs

• Take one new spark plug and compare it visually to the old one (same length, thread size, reach, and terminal type).
• Use the feeler gauge set to measure the gap between the center electrode and the curved ground strap.
• The typical gap for the 2AR-FE is around 0.039–0.043 in (1.0–1.1 mm). Confirm with the plug box or markings.
• If the gap is off slightly, gently bend the ground strap with the feeler gauge tool until the correct gap fits with a slight drag.
• Do not touch or scratch the center electrode.

Step 8: Prepare the new plugs for installation

• If you choose to use anti-seize, apply a very thin smear on the plug threads only, avoiding the first thread and the electrode. Many iridium plugs come with special coating and do not require anti-seize.
• Keep the insulator (white ceramic) and tip clean and dry.

Step 9: Install the new spark plugs

• Place a new spark plug into the 14mm spark plug socket on the extension.
• Lower it carefully into the spark plug well, keeping it straight.
• Turn the extension by hand (without the ratchet) clockwise several turns to start threading. It should turn smoothly and easily.
• If it feels tight or crunchy immediately, stop and back it out. Then restart by hand. This prevents cross-threading (damaging threads in the aluminum head).
• Once hand-tight, attach the ratchet and snug the plug lightly.
• Now attach the torque wrench and tighten to 18 Nm (13 ft-lbs). Do not overtighten.
• Repeat for all four spark plugs.

Step 10: Prepare ignition coils

• Inspect each coil boot (the long rubber part) for cracks, oil, or heavy carbon build-up.
• Lightly clean dirty boots with a clean rag and the small wire brush if needed.
• Apply a tiny dab of dielectric grease inside the tip of each boot. This helps sealing and future removal and prevents moisture intrusion.

Step 11: Reinstall ignition coils

• Install each coil back into its original cylinder location by inserting the boot straight down over the new plug.
• Press down until you feel it seat on the spark plug.
• Install the 10mm bolt for each coil using the 10mm socket and ratchet; then torque to 9 Nm (80 in-lbs) using the torque wrench set to inch-pounds.

Step 12: Reconnect coil connectors

• Push each electrical connector onto its coil until you hear or feel a “click.”
• Gently tug on each connector to confirm it’s locked in place.

Step 13: Reinstall engine cover

• Align the engine cover’s rubber grommets with the studs on the top of the engine.
• Press down firmly with your hands at each corner until it pops into place.

---

✅ After Repair

• 🔑 Start the engine and let it idle. It should start quickly and run smoothly without misfires or shaking.
• 👂 Listen for any unusual ticking or snapping sounds from the top of the engine that could indicate a loose coil or plug.
• 🚗 Take a short, gentle test drive. Check for smooth acceleration and normal power.
• 💡 If a check engine light appears, have the code read; common issues would be a coil connector not fully seated or a loose plug.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$320 (parts + labor)

DIY Cost: $50–$90 (parts only)

You Save: $130–$270 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours.

---
