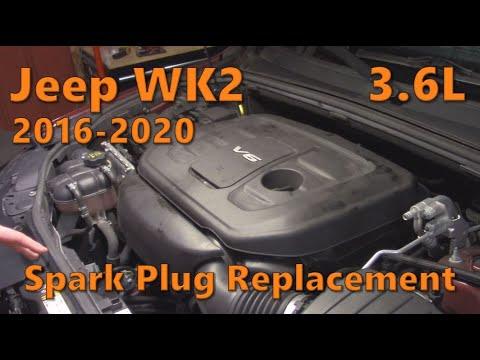

🔧 Grand Cherokee - Spark Plug Replacement

On your Grand Cherokee’s 3.6L V6, spark plugs wear over time and can cause misfires, rough idle, and reduced fuel economy. The front three plugs are easy to reach, but the rear three require removing the upper intake manifold to access them.

Difficulty Level: Advanced | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and stripped threads.
• ⚠️ Disconnect the negative battery cable before unplugging coils and sensors.
• ⚠️ Keep dirt out of the intake ports—cover openings immediately after the manifold is lifted.
• ⚠️ Do not over-tighten spark plugs—aluminum cylinder heads strip easily.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3/8" torque wrench (10-30 ft-lbs range)
• 5/8" spark plug socket
• 3/8" extension set (3", 6", 10")
• 3/8" swivel joint
• Flathead screwdriver
• Trim clip removal tool
• Pick tool
• Compressed air blow gun
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plug set (iridium) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Take photos before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and air intake tube

• Pull up firmly to remove the engine cover (it’s held by rubber grommets).
• Loosen the intake hose clamps using a flathead screwdriver.
• Disconnect any intake tube clips using a trim clip removal tool, then remove the intake tube.

Step 2: Unplug and remove the front ignition coils (front bank)

• Each cylinder has an ignition coil on top of the spark plug.
• Unplug the coil electrical connector(s). If there’s a red lock tab, lift it gently using a pick tool, then press the release and pull off.
• Remove the coil retaining bolt using a 10mm socket and 1/4" ratchet.
• Twist the coil slightly and pull it straight up to remove.
• Keep coils in order—don’t mix locations.

Step 3: Remove the three front spark plugs

• Blow out debris around each plug hole using a compressed air blow gun.
• Remove each spark plug using a 5/8" spark plug socket, 3/8" ratchet, and a 3/8" extension.
• Install the new plug by hand first using the spark plug socket and extension (no ratchet) to avoid cross-threading.
• Tighten with a 3/8" torque wrench: Torque to 17 Nm (13 ft-lbs).
• No anti-seize on these plugs.

Step 4: Remove the upper intake manifold (to reach rear plugs)

• Unplug the throttle body connector and any sensors/hoses attached to the upper intake using a pick tool as needed for clips.
• Remove the throttle body mounting bolts using an 8mm socket and 1/4" ratchet, then move it aside carefully with its wiring still safe.
• Remove the upper intake manifold bolts using a combination of 8mm socket, 10mm socket, 3/8" ratchet, and extensions as needed.
• Lift the upper intake manifold off the engine.
• Immediately place shop rags into the intake ports to keep hardware and dirt out.
• Stuff rags deep enough to not fall in.

Step 5: Unplug and remove the rear ignition coils (rear bank)

• Use a flashlight to see the rear coils clearly.
• Unplug the coil connectors (use a pick tool gently on locking tabs if needed).
• Remove each coil bolt using a 10mm socket and 1/4" ratchet.
• Twist and pull each coil upward to remove.

Step 6: Replace the three rear spark plugs

• Blow out debris around each plug well using a compressed air blow gun.
• Remove plugs using a 5/8" spark plug socket, 3/8" ratchet, extensions, and a 3/8" swivel joint (a swivel joint is a bending connector that helps reach angled fasteners).
• Start each new plug by hand, then tighten with a 3/8" torque wrench: Torque to 17 Nm (13 ft-lbs).

Step 7: Reinstall coils and torque coil bolts

• Add a tiny smear of dielectric grease inside each coil boot (dielectric grease is a non-conductive grease that helps prevent moisture/corrosion).
• Push each coil straight down until it seats on the plug.
• Install coil bolts using a 10mm socket and torque with a 3/8" torque wrench: Torque to 8 Nm (71 in-lbs).
• Reconnect all coil electrical connectors until they click.

Step 8: Reinstall the upper intake manifold with new gaskets

• Remove the old intake gaskets and install the new upper intake manifold gasket set.
• Remove the rags from the intake ports using your hands (count them to confirm all are out).
• Set the upper intake manifold into place.
• Install manifold bolts finger-tight first, then tighten evenly using an 8mm socket / 10mm socket and a 3/8" ratchet.
• Tighten with a 3/8" torque wrench: Torque to 12 Nm (106 in-lbs).
• Install the throttle body with a new throttle body gasket using an 8mm socket, then tighten: Torque to 9 Nm (80 in-lbs).
• Reconnect all hoses and electrical connectors you removed.

Step 9: Reinstall the air intake tube and engine cover

• Reinstall the intake tube and tighten clamps using a flathead screwdriver.
• Reinstall the engine cover by pressing it down onto the grommets.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Turn the key to ON (engine off) for 10 seconds, then OFF; repeat once to let sensors initialize.
• Start the engine and let it idle for 2 minutes. It may stumble briefly while it relearns.
• Check for a check-engine light and listen for vacuum leaks (hissing) around the intake manifold.
• Do a short test drive. If you feel a misfire, re-check coil connectors and coil seating.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $270-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
