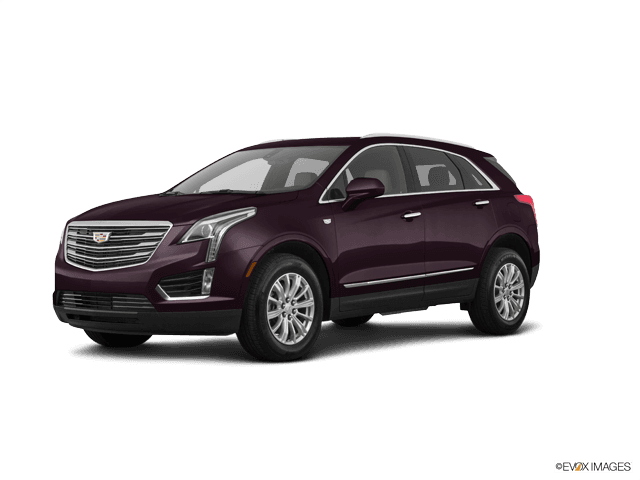

🔧 XT5 - Spark Plug Replacement

On your XT5’s 3.6L V6, replacing the spark plugs restores smooth idle, power, and fuel economy, and helps prevent misfires. The front bank is easy to access; the rear bank requires removing the upper intake manifold to reach the plugs.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and stripped threads.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Keep dirt out of the intake ports; cover openings immediately.
• ⚠️ Do not use anti-seize on these plugs; the threads are coated from the manufacturer.
• ⚠️ Don’t over-tighten spark plugs; aluminum heads strip easily.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• Flat trim tool
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–40 Nm range)
• 5/8" spark plug socket (rubber insert or магнит insert)
• 3" extension
• 6" extension
• Universal joint adapter (swivel)
• Small pick tool
• Compressed air blow gun
• Shop rags
• Dielectric grease

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, pre-gapped) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely (at least 1 hour).
• Disconnect the negative battery cable using a 10mm socket.
• Lay out 6 new plugs and keep them clean (don’t drop them).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Pull up firmly on the engine cover to release it from the ball-studs (use a flat trim tool if needed).
• Set it aside where it won’t get stepped on.

Step 2: Remove the air intake duct (to make room)

• Loosen the intake clamps using an 8mm socket.
• Disconnect any small hose(s) by hand (use a flat trim tool gently if stuck).
• Lift the duct out and set it aside.

Step 3: Remove ignition coils on the front bank (radiator side)

• Unplug each coil electrical connector (use a small pick tool to lift the lock tab if needed).
• Remove each coil bolt using a 10mm socket.
• Twist the coil boot slightly, then pull straight up to remove the coil.
• Blow out debris from each plug well using a compressed air blow gun.
• Clean wells first to protect threads.

Step 4: Replace the front bank spark plugs

• Remove each spark plug using a 5/8" spark plug socket, 6" extension, and 3/8" ratchet.
• Thread the new spark plug in by hand first using the spark plug socket and extension only (no ratchet at first).
• Tighten with a 3/8" drive torque wrench: Torque to 20 Nm (15 ft-lbs).
• Apply a small dab of dielectric grease inside the tip of each coil boot (helps prevent moisture/arc).

Step 5: Reinstall front bank ignition coils

• Push each coil straight down until you feel it seat on the plug.
• Install coil bolts using a 10mm socket, then tighten with a torque wrench (a tool that tightens to an exact spec): Torque to 10 Nm (89 in-lbs).
• Reconnect all coil electrical connectors until they click.

Step 6: Remove the upper intake manifold (to access rear bank)

• Disconnect any visible electrical connectors on the intake/throttle body area using a small pick tool as needed.
• Remove the throttle body fasteners using a 10mm socket.
• Remove the upper intake manifold bolts using a 10mm socket and 3/8" ratchet.
• Carefully lift the upper intake manifold off.
• Immediately stuff clean shop rags into the exposed intake ports so nothing falls in.
• Dropping a bolt into a port is bad.

Step 7: Replace the rear bank spark plugs (firewall side)

• Unplug rear bank coil connectors and remove coil bolts using a 10mm socket.
• Remove coils by twisting and pulling upward.
• Blow out each plug well using a compressed air blow gun.
• Remove the rear plugs using a 5/8" spark plug socket, extensions, and a universal joint adapter (swivel) (a joint that lets the socket bend for tight angles).
• Hand-thread new plugs, then torque with a torque wrench: Torque to 20 Nm (15 ft-lbs).
• Reinstall coils and tighten coil bolts: Torque to 10 Nm (89 in-lbs).
• Reconnect coil connectors.

Step 8: Reinstall the upper intake manifold and throttle body

• Remove the shop rags from the intake ports.
• Replace the upper intake manifold gaskets (do not reuse old ones).
• Set the upper intake manifold back in place.
• Start all intake bolts by hand, then tighten evenly using a 10mm socket.
• Final tighten with a torque wrench: Torque to 25 Nm (18 ft-lbs).
• Install a new throttle body gasket, reinstall the throttle body with a 10mm socket, then torque: Torque to 10 Nm (89 in-lbs).
• Reconnect all hoses and electrical connectors you removed.

Step 9: Reinstall the intake duct and engine cover

• Reinstall the air intake duct and tighten clamps using an 8mm socket.
• Press the engine cover back onto its mounting studs.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes; it should be smooth with no flashing check engine light.
• Listen for hissing (vacuum leak) around the intake; if you hear it, shut down and recheck intake duct/hoses and gasket seating.
• Test drive 10–15 minutes and recheck for any warning lights.
• If the check engine light was on before, clear codes with a scan tool after confirming the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $280-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
