🔧 RAV4 - Spark Plug Replacement

You’ll be replacing the four spark plugs on your RAV4’s 2.5L engine. This restores smooth running, fuel economy, and easier starting, especially as plugs wear with mileage.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Always work on a cool engine; hot parts can burn your hands.
• 🛑 Turn the ignition OFF, remove the key, and wait at least 5 minutes before unplugging ignition coils.
• 🛑 Disconnect the negative battery terminal if you are worried about accidental cranking.
• 🛑 Do not pull on ignition coil wires; only pull on the coil body.
• 🛑 Use the correct spark plug type (iridium) and do not over-tighten; this can damage the aluminum cylinder head.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–60 ft-lbs range)
• 🛠️ 3/8" drive extension (6")
• 🛠️ 14mm spark plug socket (with rubber insert or magnet)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Feeler gauge set (metric and inch)
• 🛠️ Compressed air can or air blower
• 🛠️ Clean shop rags
• 🛠️ Dielectric grease
• 🛠️ Gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Iridium spark plugs (correct for 2.5L 2AR-FE) - Qty: 4
• 🔩 Throttle body/intake cleaner spray - Qty: 1 (optional, for light cleaning around area)
• 🔩 Dielectric grease packet - Qty: 1

---

📋 Before You Begin

• 🚗 Park the RAV4 on level ground, shift to Park, and set the parking brake.
• 🔌 Turn off all accessories and remove the key from the ignition.
• 🔋 Optionally disconnect the negative battery terminal using a 10mm socket to avoid any chance of accidental cranking.
• 🧼 Make sure the engine is cool to the touch before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Open the hood using the interior hood release, then lift the hood and secure it with the prop rod.
• Gently pull up on the plastic engine cover; it’s held by rubber grommets and will pop off with a firm pull. Use your hands; no tools required.
• Set the cover aside in a safe place.

Step 2: Locate ignition coils and connectors

• You will see four black ignition coils on top of the engine, each with an electrical connector. An ignition coil creates high voltage for the spark plug.
• Note the routing of the wiring harness over the coils so you can put it back the same way later. Take a quick photo as reference.

Step 3: Disconnect coil connectors

• Use your fingers or a flathead screwdriver to gently lift the small locking tab on each ignition coil connector and pull the connector straight off the coil.
• Do this for all four coils. Do not force; wiggle gently if stuck.

Step 4: Remove ignition coils

• Use a 10mm socket and 3/8" ratchet to remove the single bolt holding each coil.
• Place the 10mm bolts somewhere safe so they don't get lost.
• Pull each ignition coil straight up by hand; you may need to twist slightly to break the seal.
• Set the coils aside in order (cylinder 1–4) if you like. Keeping order helps if diagnosing later.

Step 5: Clean around spark plug wells

• Use compressed air to blow out any dirt or debris from around each spark plug hole. This prevents dirt from falling into the engine.
• If you do not have air, use a clean shop rag and carefully wipe the area around the holes.

Step 6: Remove old spark plugs

• Attach the 14mm spark plug socket to the 3/8" extension and ratchet.
• Insert the socket straight down into the first spark plug well until it seats on the plug.
• Turn the ratchet counterclockwise to loosen the spark plug. Once loose, spin it out by hand using the extension.
• Carefully pull the plug up; the spark plug socket’s rubber insert or magnet will hold it.
• Repeat for all four spark plugs.

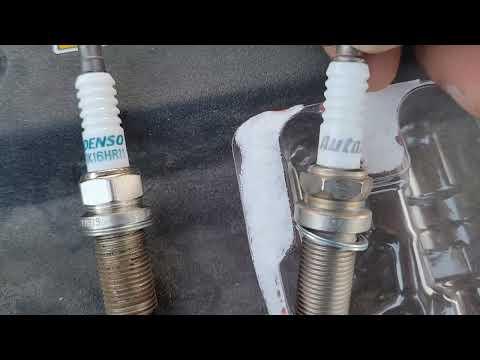

Step 7: Check new spark plug gap

• Use a feeler gauge (a thin metal measuring strip) to check each new plug’s gap.
• For the RAV4 2.5L, the standard gap is 1.0–1.1 mm (0.039–0.043 in).
• Slide the feeler gauge between the center electrode and the side electrode. It should have a slight drag, not loose and not too tight.
• If adjustment is needed, gently bend only the side electrode using the gauge tool or very lightly with needle-nose pliers. Do not touch or bend the thin center electrode.
• Most iridium plugs come pre-gapped; adjust only if clearly off.

Step 8: Install new spark plugs

• Do not use anti-seize on threads; Toyota-plated plugs are designed to be installed dry.
• Place a new spark plug into the 14mm spark plug socket and lower it carefully into the first plug well.
• Thread the plug in by hand using only the extension (no ratchet yet). Turn clockwise several turns to be sure it is not cross-threaded. It must turn smoothly.
• Once finger-tight, attach the torque wrench to the extension.
• Tighten each spark plug to 25 Nm (18 ft-lbs).
• Repeat for all four spark plugs.

Step 9: Reinstall ignition coils

• Inspect each ignition coil boot (the rubber tube) for cracks or heavy oil. Replace any damaged coils if needed.
• Apply a very small amount of dielectric grease inside each coil boot opening. Dielectric grease helps prevent moisture and corrosion.
• Push each coil straight down onto its spark plug until fully seated.
• Install the 10mm bolt for each coil using the 10mm socket and ratchet. Tighten snugly to about 9 Nm (80 in-lbs). Do not over-tighten; they are small bolts.

Step 10: Reconnect coil connectors

• Push each electrical connector back onto its ignition coil until you hear or feel a click.
• Lightly tug on the connector to make sure it’s locked in place.

Step 11: Reinstall engine cover

• Align the engine cover’s mounting grommets with the posts on top of the engine.
• Press down firmly at each corner until the cover snaps into place.

Step 12: Reconnect battery (if disconnected)

• If you disconnected the negative battery terminal earlier, place it back on the battery post.
• Use a 10mm socket to tighten the clamp. Snug, but not overly tight.

---

✅ After Repair

• 🔑 Start the engine and let it idle. It should run smoothly with no misfires or shaking.
• 🚫 Check that the check engine light is off. If it turns on, re-check coil connectors and plug wire seating.
• 🚗 Take a short test drive, listening for any unusual noises and confirming smooth acceleration.
• 📊 You may notice smoother idle and better throttle response after a few drives as the ECU adapts.

---

💰 DIY vs Shop Cost

Shop Cost: $180–$300 (parts + labor)

DIY Cost: $40–$90 (parts only)

You Save: $90–$260 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours.

---
