🔧 Spark Plugs - Replacement

Your XC60 uses six spark plugs, one for each cylinder. This job is straightforward if you work carefully and keep dirt out of the plug wells. Replacing them on time helps restore smooth running, fuel economy, and cold-start performance.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on a cold engine only. Hot aluminum cylinder heads can be damaged by plug removal.
• Do not drop anything into the spark plug wells.
• Use compressed air or a clean brush to clear dirt before removing coils.
• Battery disconnect is not required, but key off and remove the key/fob from the vehicle.
• Tip: Label each ignition coil so they go back in the same order.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• Ratchet
• Extension bar
• Spark plug socket 16mm (5/8")
• Torque wrench
• Trim panel tool
• Compressed air
• Dielectric grease
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plug set - Qty: 6

---

📋 Before You Begin

• Park on level ground and let the engine cool completely.
• Open the hood and remove any loose items near the engine bay.
• Have the new plugs ready before removing the old ones.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use your hands or a trim panel tool to lift off the engine cover.
• Set it aside safely.

Step 2: Remove intake tube parts if needed

• If the front of the engine is blocked, use an 8mm socket to loosen the intake clamp and any nearby fasteners.
• Move the air tube aside enough to reach the ignition coils.

Step 3: Remove the ignition coils

• Use a 10mm socket to remove the coil hold-down bolts.
• Pull each ignition coil straight up.
• Tip: Wiggle gently, do not pry hard.

Step 4: Clean around each spark plug well

• Use compressed air to blow dirt away from each plug well.
• This helps keep debris out of the cylinder.

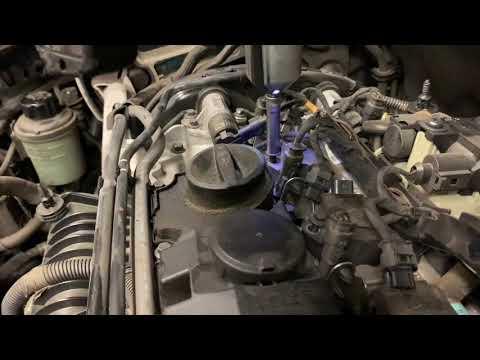

Step 5: Remove the old spark plugs

• Use a 16mm spark plug socket, extension bar, and ratchet to loosen each plug.
• Turn counterclockwise and remove one plug at a time.
• If a plug feels stuck, stop and work it gently to avoid thread damage.

Step 6: Check and install the new spark plugs

• Compare the new plugs to the old ones to confirm they match.
• Install each plug by hand first using the spark plug socket and extension.
• Once finger-tight, tighten with a torque wrench to 23 Nm (17 ft-lbs).
• Tip: Start every plug by hand to avoid cross-threading.

Step 7: Reinstall the ignition coils

• Add a small amount of dielectric grease inside each coil boot if desired.
• Push each coil straight down onto its spark plug.
• Reinstall the coil bolts with a 10mm socket and tighten snugly. If you have a torque spec from service data, use it; otherwise do not overtighten.

Step 8: Reassemble the intake parts and engine cover

• Reinstall any intake tube parts and tighten the clamp with an 8mm socket.
• Press the engine cover back into place.

---

✅ After Repair

• Start the engine and listen for smooth idle.
• Check for warning lights on the dash.
• Take a short test drive and make sure acceleration feels normal.
• If the check engine light stays on, scan for stored misfire codes.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $190-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
