🔧 ProMaster - Spark Plug Replacement

On your ProMaster’s 3.6L V6, the spark plugs fire the air/fuel mix. Replacing worn plugs restores smooth starting, power, and fuel economy, and helps prevent misfires.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

Assumption: This covers the 3.6L V6 layout where the rear-bank plugs require upper intake removal for access.

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and thread damage in the aluminum heads.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils and sensors.
• ⚠️ Keep dirt out of the intake ports—cover openings with clean rags immediately.
• ⚠️ Do not over-tighten spark plugs; stripped threads are expensive to repair.
• ⚠️ Avoid pulling on wires—release connector locks before unplugging.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/4" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal joint
• 5/8" spark plug socket (rubber insert)
• Torque wrench (10–30 ft-lbs range)
• Torque wrench (inch-lb range)
• 8mm socket
• 10mm socket
• Flat-blade screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Compressed air blow gun
• Flashlight
• Magnetic pickup tool
• Feeler gauge set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-spec iridium) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool completely.
• Disconnect the battery: use a 10mm socket to remove the negative battery terminal and move it aside so it can’t spring back.
• Tip: Take photos before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the cover straight up to release the rubber grommets (use a trim clip removal tool gently if it’s stuck).
• Set it aside where it won’t get stepped on.

Step 2: Remove the air intake tube

• Loosen the hose clamps using a flat-blade screwdriver.
• Unclip/unplug any attached sensor connector(s) using a trim clip removal tool as needed.
• Remove the tube and set it aside.

Step 3: Remove the upper intake manifold (for rear-bank access)

• Unplug intake/throttle body related connectors by releasing the lock tabs (use a trim clip removal tool if needed).
• Disconnect any vacuum/PCV hoses using hose clamp pliers.
• Remove the upper intake manifold fasteners using an 8mm socket and 10mm socket.
• Lift the upper intake manifold off carefully.
• Immediately cover the exposed intake openings with clean rags to prevent anything from falling in.
• Tip: Keep bolts in a labeled cup.

Step 4: Remove ignition coil packs (one cylinder at a time)

• Pick one coil to start with so parts don’t get mixed up.
• Unplug the coil connector (press the tab and pull straight off).
• Remove the coil hold-down bolt using a 10mm socket.
• Twist the coil slightly and pull it straight out.
• Blow out the spark plug well using a compressed air blow gun so dirt can’t fall into the engine.

Step 5: Remove the old spark plug

• Install a 5/8" spark plug socket (rubber insert) on a 3/8" drive extension and 3/8" drive ratchet.
• Loosen the plug counterclockwise and remove it.
• If it feels extremely tight, stop and work it back-and-forth gently to avoid thread damage.
• Tip: A universal joint helps tight angles.

Step 6: Prep and install the new spark plug

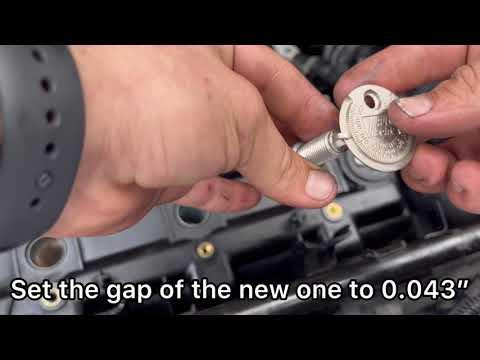

• Check the gap with a feeler gauge set (common spec is around 0.043 in; do not force-bend fine-wire iridium tips).
• Start the new plug by hand using the 5/8" spark plug socket and a 3/8" drive extension only (no ratchet) to prevent cross-threading.
• Tighten with a torque wrench (10–30 ft-lbs range): Torque to 13 Nm (10 ft-lbs).
• Tip: If it won’t hand-thread smoothly, stop.

Step 7: Reinstall the ignition coil

• Apply a small smear of dielectric grease inside the coil boot (this helps prevent moisture-related misfires).
• Push the coil straight down onto the plug until fully seated.
• Install the coil hold-down bolt using a 10mm socket, then tighten with a torque wrench (inch-lb range): Torque to 9 Nm (80 in-lbs).
• Reconnect the coil electrical connector until it clicks.

Step 8: Repeat for all 6 cylinders

• Replace plugs one cylinder at a time to avoid mixing coil locations.
• Use a flashlight to confirm every connector is fully seated.

Step 9: Reinstall the upper intake manifold

• Remove the rags from the intake openings.
• Install new upper intake manifold gasket set (do not reuse flattened gaskets).
• Set the manifold in place and hand-start all fasteners.
• Tighten the fasteners evenly using an 8mm socket and 10mm socket.
• Reconnect all vacuum/PCV hoses using hose clamp pliers.
• Reconnect all electrical connectors until they click.

Step 10: Reinstall the air intake tube and engine cover

• Reinstall the intake tube and tighten clamps using a flat-blade screwdriver.
• Reinstall the engine cover by pressing it down onto the grommets.

Step 11: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It may run rough for a few seconds while it relearns airflow.
• Listen for air leaks (hissing) around the intake manifold and intake tube.
• If the check engine light turns on, re-check coil connectors and vacuum hoses first.
• Test drive 10–15 minutes, then recheck for any loose clamps or smell of fuel/vacuum leak.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $70-$160 (parts only)

You Save: $190-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
