🔧 Versa - Spark Plug Replacement

Your Versa uses 4 spark plugs (one per cylinder) to ignite the air/fuel mixture. Replacing worn plugs helps prevent misfires, rough idle, and poor fuel economy, and it keeps starting smooth.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the spark plug holes; contamination can damage the engine.
• ⚠️ Do not over-tighten spark plugs; stripped threads are expensive to repair.
• ⚠️ Battery disconnect is not required, but disconnecting the negative cable prevents accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 14mm thin-wall spark plug socket (3/8" drive)
• Torque wrench (3/8" drive, 10-40 ft-lbs range)
• Small flathead screwdriver
• Compressed air blow gun
• Shop vacuum
• Dielectric grease
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM-equivalent) - Qty: 4

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (spark plugs thread into the cylinder head).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and set it aside so it can’t spring back.
• Assumption: 1.6L HR16DE engine with coil-on-plug ignition.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Open the hood and locate the plastic engine cover on top of the engine.
• Remove the cover fasteners using a 10mm socket and 3/8" drive ratchet, then lift the cover off.

Step 2: Unplug the ignition coils

• Each spark plug has an ignition coil on top (the coil makes the high voltage spark).
• Press the connector tab and unplug each coil electrical connector; use a small flathead screwdriver gently if the tab is stubborn.

Step 3: Remove the ignition coils

• Remove the coil hold-down bolt with a 10mm socket and 3/8" drive ratchet.
• Twist the coil slightly and pull it straight up to remove it.
• Set coils in order (Cylinder 1-4) so they go back where they came from.

Step 4: Clean around the spark plug wells

• Use a shop vacuum to remove loose dirt around the plug holes.
• Blow out each plug well using a compressed air blow gun while wearing safety glasses.
• Clean first so debris doesn’t fall inside.

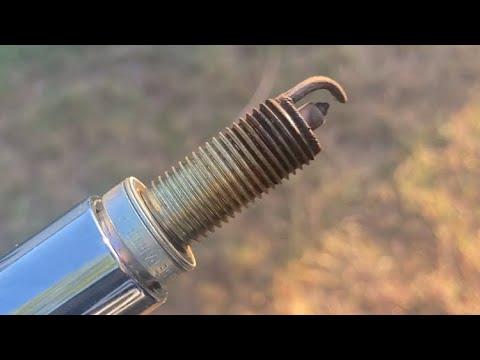

Step 5: Remove the old spark plugs

• Install the 14mm thin-wall spark plug socket on a 3/8" drive extension (6") and 3/8" drive ratchet.
• Lower the socket straight down onto the spark plug and loosen it counterclockwise.
• Once loose, spin it out carefully and lift it out with the socket.

Step 6: Install the new spark plugs (start by hand)

• Compare new and old plugs to make sure the length/style matches.
• Do not change the gap on iridium plugs unless the box specifically says to; they’re typically pre-gapped.
• Place a new plug into the 14mm thin-wall spark plug socket, attach a 3/8" drive extension (6"), and thread it in by hand (no ratchet at first).
• If it doesn’t thread smoothly, back it out and try again—cross-threading damages the cylinder head.

Step 7: Torque the spark plugs

• Switch to a torque wrench (3/8" drive, 10-40 ft-lbs range) with the 14mm thin-wall spark plug socket and extension.
• Tighten each spark plug to Torque to 18 Nm (13 ft-lbs).
• No anti-seize on plated iridium plugs.

Step 8: Reinstall the ignition coils

• Apply a tiny amount of dielectric grease (an electrical insulating grease) inside each coil boot.
• Push each coil straight down until it fully seats on the spark plug.
• Install the coil hold-down bolt using a 10mm socket and 3/8" drive ratchet, then Torque to 8 Nm (71 in-lbs).

Step 9: Plug coils back in and reinstall the engine cover

• Reconnect each coil electrical connector until it clicks.
• Reinstall the engine cover using a 10mm socket and 3/8" drive ratchet.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds; it should run smooth with no shaking.
• If the check engine light comes on or it runs rough, recheck that every coil connector is fully clicked in and every coil is seated.
• Test drive 5-10 minutes and verify normal acceleration and no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
