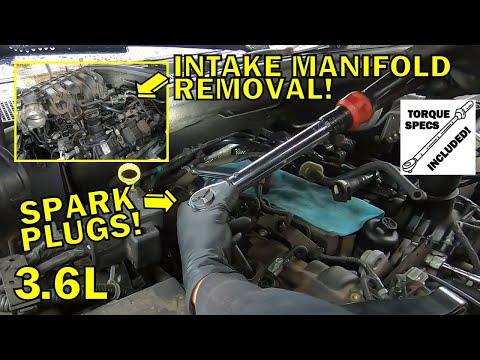

🔧 Grand Cherokee - Spark Plug Replacement

On your Grand Cherokee’s 3.6L V6, the spark plugs wear over time and can cause misfires, rough idle, poor fuel economy, and slow starts. This job involves removing the ignition coils, replacing all 6 plugs, and reinstalling everything with the correct torque.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

Assumption: 3.6L V6 may require upper intake removal for rear plugs.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine to avoid burns and stripped threads.
• ⚠️ Keep dirt out of the plug holes; debris can damage the engine.
• ⚠️ If you remove the intake, don’t drop anything into the intake ports.
• ⚠️ Battery disconnect is recommended if you’ll unplug multiple sensors: use a 10mm wrench to remove the negative terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-30 ft-lbs range)
• 1/4" drive ratchet
• 1/4" drive torque wrench (50-150 in-lbs range)
• Extensions set (3", 6", 10")
• Swivel/universal joint 3/8" drive
• 10mm socket
• 8mm socket
• 13mm socket
• 5/8" spark plug socket
• Flathead screwdriver
• Trim clip tool
• Needle-nose pliers
• Compressed air blow gun
• Shop light
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, correct spec) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully (at least 1 hour).
• If you’ll remove the intake manifold, disconnect the battery negative cable using a 10mm wrench.
• Lay out parts in order. You’ll repeat the same steps 6 times.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and make room

• Pull up to remove the engine cover (it’s held by rubber grommets).
• Use a flathead screwdriver and trim clip tool to loosen/remove any air duct clips in your way.
• Use an 8mm socket to loosen the intake tube clamp(s) and move the intake tube aside if needed.

Step 2: Unplug and remove the ignition coils

• Unplug the coil electrical connector(s). Use a flathead screwdriver gently if the lock tab is stubborn.
• Remove the coil hold-down bolt using a 10mm socket.
• Pull the coil straight up to remove it. Twist slightly if it’s stuck.
• Repeat for each coil you can access.
• Coil = the part that sits on top of the plug. It creates the spark.

Step 3: If rear plugs are blocked, remove the upper intake manifold

• Disconnect the battery negative cable using a 10mm wrench (if not already done).
• Unplug the throttle body connector and any sensors attached to the intake using your fingers and a flathead screwdriver as needed.
• Remove the intake tube from the throttle body using an 8mm socket.
• Remove the throttle body bolts using an 8mm socket, then remove the throttle body.
• Torque to 8 Nm (71 in-lbs) when reinstalling throttle body bolts.
• Remove the upper intake manifold bolts using a 10mm socket with extensions.
• Lift the upper intake manifold straight up and off. Use a shop light to confirm nothing is still connected.
• Cover the exposed intake ports with a clean lint-free cloth so nothing falls in.
• Upper intake manifold = the top air passage assembly. It feeds air to the engine.

Step 4: Clean around each spark plug hole

• Before removing a plug, blow out dirt from the plug well using compressed air blow gun.
• This helps prevent debris from falling into the cylinder.

Step 5: Remove the old spark plugs

• Use a 5/8" spark plug socket with a 3/8" drive ratchet, extensions, and a swivel/universal joint as needed.
• Turn counterclockwise to remove each plug.
• If a plug feels extremely tight, stop and work it slowly to avoid thread damage.

Step 6: Install the new spark plugs (by hand first)

• Put the new plug into the 5/8" spark plug socket.
• Thread it in by hand using only an extension (no ratchet at first). This helps prevent cross-threading (damaging the threads).
• Once seated, tighten with a 3/8" drive torque wrench.
• Torque to 17 Nm (13 ft-lbs).
• Do not add anti-seize unless the plug maker specifically requires it.
• Most iridium plugs are pre-gapped. Don’t force-bend the tip.

Step 7: Reinstall ignition coils

• Add a small dab of dielectric grease inside each coil boot.
• Dielectric grease helps prevent moisture and sticking.
• Push the coil straight down until fully seated.
• Install the coil bolt using a 10mm socket, then torque with a torque wrench.
• Torque to 8 Nm (71 in-lbs).
• Reconnect each coil electrical connector until it clicks.

Step 8: If removed, reinstall the upper intake manifold and throttle body

• Remove the cloths covering the intake ports.
• Install new upper intake manifold gaskets (don’t reuse flattened old ones).
• Set the upper intake manifold in place.
• Install bolts finger-tight, then tighten evenly using a 10mm socket.
• Torque to 12 Nm (105 in-lbs).
• Install the throttle body with a new throttle body gasket using an 8mm socket.
• Torque to 8 Nm (71 in-lbs).
• Reconnect all intake/throttle body electrical connectors.
• Reinstall the intake tube and tighten clamps using an 8mm socket.

Step 9: Reinstall engine cover

• Press the engine cover back onto its mounting grommets.
• Reconnect the battery negative terminal using a 10mm wrench if you disconnected it.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes.
• Listen for vacuum leaks (hissing) if the intake was removed.
• Verify there’s no check-engine light and the idle feels smooth.
• Test drive 10-15 minutes and re-check for any warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
