🔧 QX50 - Spark Plug Replacement

On your QX50, replacing spark plugs means changing all 6 plugs (3 front, 3 rear). The rear bank sits under the upper intake manifold, so you’ll remove it to reach those coils and plugs. Doing this on schedule helps prevent misfires, rough idle, and hard starts.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and stripped aluminum threads.
• ⚠️ Disconnect the negative battery cable before unplugging coils and throttle body connectors.
• ⚠️ Keep dirt out of the intake ports; cover openings with clean shop rags immediately.
• ⚠️ Do not over-torque spark plugs; the cylinder heads are aluminum.
• ⚠️ Use only dielectric grease on coil boots; do not use anti-seize on plug threads unless the plug maker specifically requires it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Ratchet (3/8")
• Torque wrench (3/8", capable of 10–25 ft-lbs)
• Torque wrench (1/4", inch-lb capable)
• 10mm socket
• 12mm socket
• Flathead screwdriver
• Pliers
• Spark plug socket 14mm thin-wall (3/8")
• Extension set (3/8", 3" and 6")
• Wobble extension (3/8")
• Pickup tool (magnetic)
• Compressed air blow gun
• Shop vacuum
• Shop rags
• Painter’s tape
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM-spec) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Let the engine cool completely (ideally 2+ hours).
• Use 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.
• Use painter’s tape and a paint marker to label any vacuum hoses or connectors you remove.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake duct

• Remove the plastic engine cover (pull upward firmly if it’s on grommets).
• Use a flathead screwdriver to loosen the intake tube clamps.
• Unplug the MAF connector using your fingers (press the lock tab), then remove the intake duct.
• MAF is the airflow sensor in the intake tube.

Step 2: Replace the 3 front-bank spark plugs (easiest access)

• Unplug each ignition coil connector (press the tab), one at a time.
• Use a 10mm socket to remove the ignition coil hold-down bolt.
• Pull the coil straight up to remove it.
• Use compressed air blow gun to blow debris out of the spark plug well.
• Use a 14mm thin-wall spark plug socket with a 3/8" extension to remove the spark plug.
• Install the new plug by hand first using the spark plug socket and extension only (no ratchet) to avoid cross-threading.
• Use a torque wrench and tighten: Torque to 18 N·m (13 ft-lbs).
• Apply a small dab of dielectric grease inside the coil boot, then reinstall the coil.
• Reinstall the coil bolt: Torque to 7 N·m (62 in-lbs).

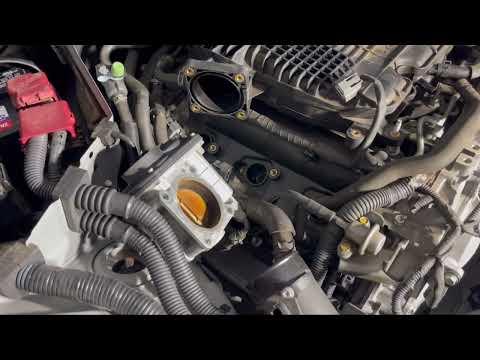

Step 3: Remove the throttle body from the intake (to access the upper intake manifold)

• Unplug the throttle body electrical connector.
• Use pliers to move any small hose clamps as needed and reposition hoses for access.
• Use a 10mm socket to remove the 4 throttle body bolts.
• Carefully move the throttle body aside without straining hoses/wiring.
• Remove and discard the old throttle body gasket.

Step 4: Remove the upper intake manifold (rear plugs are underneath)

• Unplug any intake-mounted connectors and remove any vacuum hoses that prevent lifting the manifold (label them with painter’s tape).
• Use a 12mm socket to remove the upper intake manifold bolts (and nuts if equipped), then lift the manifold off.
• Immediately cover the exposed intake ports with shop rags.
• Remove and discard the old upper intake manifold gaskets.

Step 5: Replace the 3 rear-bank spark plugs

• For each rear cylinder, unplug the ignition coil connector.
• Use a 10mm socket to remove the coil bolt, then pull the coil straight up.
• Use compressed air blow gun to blow out the plug wells.
• Use a 14mm thin-wall spark plug socket with a wobble extension to remove the spark plugs.
• Install new plugs by hand first, then tighten with a torque wrench: Torque to 18 N·m (13 ft-lbs).
• Add a small dab of dielectric grease inside each coil boot, reinstall coils, and tighten coil bolts: Torque to 7 N·m (62 in-lbs).

Step 6: Reinstall the upper intake manifold with new gaskets

• Remove the shop rags from the intake ports.
• Use a shop vacuum to ensure no debris is near the ports before assembly.
• Install the new upper intake manifold gaskets in their grooves.
• Set the manifold in place carefully, making sure no hoses/wires get trapped.
• Hand-start all bolts/nuts, then tighten evenly in a crisscross pattern using a 12mm socket.
• Tighten with a torque wrench: Torque to 25 N·m (18 ft-lbs).

Step 7: Reinstall the throttle body with a new gasket

• Install the new throttle body gasket.
• Reinstall the throttle body and hand-start bolts.
• Use a torque wrench to tighten: Torque to 10 N·m (89 in-lbs).
• Plug the throttle body connector back in until it clicks.

Step 8: Reinstall the intake duct and reconnect the battery

• Reinstall the intake duct and tighten clamps using a flathead screwdriver.
• Reconnect the MAF connector.
• Reconnect the negative battery terminal using a 10mm socket.
• Reinstall the engine cover.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes.
• Listen for vacuum leaks (a hissing sound) around the upper intake manifold and throttle body.
• If idle is high or unstable after throttle body unplugging, perform an idle relearn (it may self-correct after a short drive).
• Test drive 10–15 minutes and confirm no check engine light and smooth acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
