🔧 Sonata - Spark Plug Replacement

On your Sonata, the spark plugs fire the air/fuel mix in each cylinder. Worn plugs can cause rough idle, misfires, poor fuel economy, and hard starts. This job is straightforward because your engine uses coil-on-plug ignition (one coil per plug on top of the engine).

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

Assumption: 2.4L has 4 coils on top under a plastic engine cover.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ Don’t pull on wires; release electrical connectors by the lock tab.
• ⚠️ Battery disconnect is not required, but keep the key off and headlights off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-40 Nm range)
• 3/8" drive extension set (3" and 6")
• 5/8" (16mm) spark plug socket
• Small flathead screwdriver
• Compressed air blow gun
• Feeler gauge set (wire type)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium/platinum, correct fit for 2.4L) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully (at least 1 hour after driving).
• Lay out the new plugs and tools so nothing falls into the engine bay.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

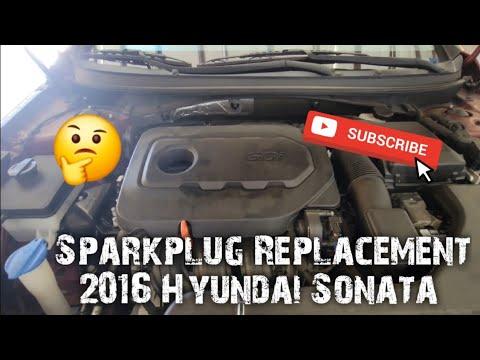

Step 1: Remove the engine cover

• Use your hands to pull the plastic engine cover straight up to pop it off the rubber grommets.
• Use a flashlight to locate the 4 ignition coils on top of the engine.

Step 2: Unplug the first ignition coil

• Use a small flathead screwdriver to gently lift the connector lock tab if needed.
• Press the release and pull the connector straight off (no yanking).
• Do one coil at a time.

Step 3: Remove the coil hold-down bolt and coil

• Use a 10mm socket with a 1/4" drive ratchet to remove the coil bolt.
• Twist the coil slightly, then pull straight up to remove it from the spark plug tube.
• Set the coil someplace clean.

Step 4: Clean the spark plug well

• Use compressed air blow gun to blow out the spark plug hole before loosening the plug.
• This prevents dirt from falling into the cylinder when the plug comes out.

Step 5: Remove the spark plug

• Install the 5/8" (16mm) spark plug socket onto a 3/8" drive extension (6") and 3/8" drive ratchet.
• Lower the socket straight down onto the plug and turn counterclockwise to remove it.
• If it feels stuck, stop and re-try gently after more steady pressure (don’t force it).
• Keep the socket straight to protect threads.

Step 6: Check and prep the new spark plug

• Use a feeler gauge set (wire type) to verify the gap matches the plug manufacturer spec for your Sonata.
• If your plugs are iridium, do not bend the tiny center tip; if the gap is off, exchange the plug instead of forcing it.
• Do not apply anti-seize unless the plug maker specifically says to; most modern plugs are nickel-coated and install dry.

Step 7: Install the new spark plug (start by hand)

• Place the new plug into the 5/8" (16mm) spark plug socket so it holds it securely (the socket’s rubber insert grips the plug).
• Carefully lower it into the hole using a 3/8" drive extension (6").
• Thread it in by hand using only the extension (no ratchet at first) until it seats smoothly.
• If it doesn’t spin in easily, back it out and start again to avoid cross-threading.

Step 8: Torque the spark plug

• Switch to a 3/8" drive torque wrench (10-40 Nm range) and tighten the plug.
• Torque to 25 Nm (18 ft-lbs)

Step 9: Reinstall the ignition coil

• Apply a tiny smear of dielectric grease inside the coil boot (this helps prevent moisture and makes future removal easier).
• Push the coil straight down until it fully seats on the spark plug.
• Install the coil bolt using a 10mm socket and 1/4" drive ratchet.
• Torque to 8 Nm (71 in-lbs)
• Reconnect the electrical connector until it clicks.

Step 10: Repeat for the remaining cylinders

• Repeat Steps 2 through 9 for the other 3 spark plugs.
• Use your flashlight to confirm every connector is plugged in and every bolt is installed.

Step 11: Reinstall the engine cover

• Align the cover over the mounting points, then press down firmly with your hands to snap it into place.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds; it should run smooth with no shaking.
• If you have a check engine light or misfire, re-check each coil connector and coil bolt seating.
• Take a short test drive and confirm normal power and no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
