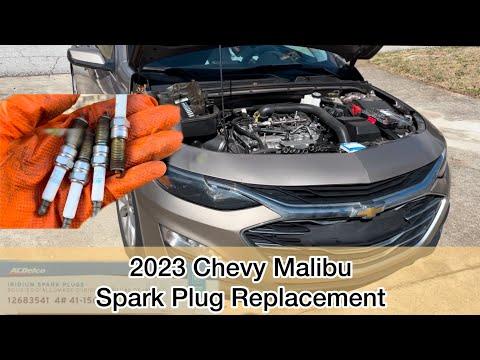

🔧 Malibu - Spark Plug Replacement

Replacing the spark plugs on your Malibu restores strong ignition, smooth idle, and good fuel economy. On the 1.5L turbo engine, fresh plugs also help prevent misfires under boost.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; the aluminum cylinder head strips easily when hot.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ If you disconnect the battery: use a 10mm wrench and remove the negative cable first.
• ⚠️ Do not pull on wiring; release connector locks before unplugging.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 5/8" spark plug socket (rubber insert)
• Torque wrench (3/8" drive, 10-30 Nm range)
• Small flat screwdriver
• Compressed air blow gun
• Feeler gauge (0.028" blade)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, OEM-equivalent) - Qty: 4
• Dielectric grease (silicone) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine fully cool (at least 1 hour after driving).
• Open the hood and remove any loose items around the engine bay.
• A “spark plug well” is the deep tube the plug sits in.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery (recommended)

• Use a 10mm wrench to loosen the negative battery terminal and remove it.
• Tuck the cable aside so it can’t spring back onto the post.

Step 2: Remove the engine cover

• Grasp the cover and pull straight upward to release the rubber grommets.
• Use a flashlight to confirm nothing is still clipped or snagged.

Step 3: Unplug the ignition coil connectors

• Each cylinder has an ignition coil on top (this “coil-on-plug” design puts the coil directly over the plug).
• Use a small flat screwdriver to gently release the connector lock, then unplug each coil connector.

Step 4: Remove the ignition coils

• Use a 10mm socket with a 3/8" drive ratchet to remove the coil hold-down bolt for each coil.
• Pull the coil straight up with a gentle twist.
• Set coils aside in order (so you can put them back in the same cylinder if you’re reusing them).
• When reinstalling coil bolts later: Torque to 10 Nm (89 in-lbs)

Step 5: Clean the spark plug wells

• Use compressed air blow gun to blow out each spark plug well.
• Blow out dirt before removing the plug.

Step 6: Remove the old spark plugs

• Install a 5/8" spark plug socket (rubber insert) on a 3/8" drive extension (6") and 3/8" drive ratchet.
• Turn counterclockwise to loosen, then remove the plug.
• If a plug feels stuck: stop, tighten slightly, then loosen again slowly.

Step 7: Check and set the gap on the new plugs

• Use a feeler gauge (0.028" blade) to check the gap.
• Target gap for the 1.5L turbo is typically 0.028" (0.70 mm).
• If adjustment is needed, adjust carefully; do not pry on the iridium tip.
• Most new plugs are pre-gapped—still verify.

Step 8: Install the new spark plugs

• Place the new plug into the 5/8" spark plug socket so the rubber insert holds it.
• Thread it in by hand using only the extension (no ratchet at first) to avoid cross-threading.
• Once seated, use the torque wrench to tighten: Torque to 18 Nm (13 ft-lbs)
• Do not use anti-seize unless the plug maker specifically requires it.

Step 9: Reinstall coils and connectors

• Apply a tiny dab of dielectric grease inside each coil boot (this helps prevent moisture and makes future removal easier).
• Push each coil straight down until fully seated.
• Install coil bolts with a 10mm socket, then tighten with a torque wrench: Torque to 10 Nm (89 in-lbs)
• Reconnect each electrical connector until it clicks.

Step 10: Reinstall engine cover and reconnect battery

• Press the engine cover back onto its grommets.
• Reconnect the negative battery terminal using a 10mm wrench and snug it firmly.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes.
• Listen/feel for misfires (shaking, flashing check engine light). If the light flashes, shut it off and recheck coil connectors.
• Take a short test drive and confirm smooth acceleration.
• If you have a scan tool, clear any stored misfire codes and recheck for pending codes after the drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumptions: Listed torque and gap are standard for the Malibu 1.5L turbo; use the plug box/service data if your replacement plug specifies different values.
