🔧 Q3 - Spark Plug Replacement

Replacing spark plugs helps your Q3 start easier, idle smoother, and keep fuel economy and power where they should be. On your turbo 2.0L, worn plugs can also cause misfires under load (often feels like hesitation).

Difficulty Level: Beginner | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully; hot aluminum threads strip easily.
• ⚠️ Ignition coils create high voltage; keep key off and hands dry.
• ⚠️ Do not blow debris into cylinders; clean plug wells before removal.
• ⚠️ Battery disconnect is not required, but is safer if you’re nervous around electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 5/8" (16mm) thin-wall spark plug socket
• Torque wrench (3/8" drive, 10-60 Nm range)
• Trim removal tool (plastic pry tool)
• Small pick tool
• Compressed air blow gun
• Shop vacuum
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

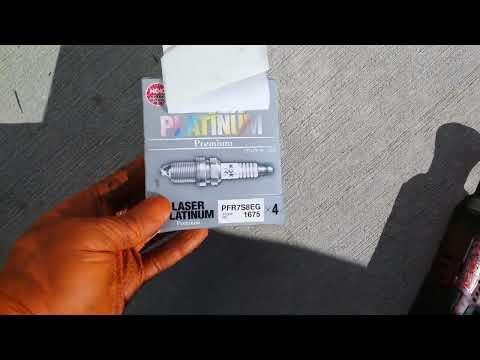

• Spark plugs (OEM-equivalent for 2.0L turbo) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool to room temperature.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and position it so it can’t spring back.
• Tip: Take a photo before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use a trim removal tool (plastic pry tool) and your hands to pull the engine cover straight upward (it’s held by rubber grommets).
• Set it aside where it won’t get stepped on.

Step 2: Unplug the ignition coil connectors

• Locate the 4 ignition coils on top of the engine (one per cylinder).
• Use a small pick tool to gently lift the connector lock (if equipped), then press the tab and pull the connector off.
• Tip: Pull on the connector, not the wires.

Step 3: Remove the ignition coils

• Grab the coil body and pull straight up while gently wiggling.
• If a coil is stuck, use a trim removal tool (plastic pry tool) carefully under the coil flange to help lift it a little at a time.
• Set each coil aside in order (so they go back to the same cylinder).
• Tip: A stuck coil is normal—be patient.

Step 4: Clean the spark plug wells

• Use a shop vacuum to remove loose dirt around the plug wells.
• Use compressed air blow gun to blow out each well.
• This prevents debris from falling into the cylinder when the plug comes out.

Step 5: Remove the old spark plugs

• Insert a 5/8" (16mm) thin-wall spark plug socket with a 3/8" drive extension set and loosen using a 3/8" drive ratchet.
• Once loose, keep turning until the plug lifts out with the socket.
• If a plug feels extremely tight, stop and work it gently back and forth to avoid thread damage.

Step 6: Install the new spark plugs

• Check each new plug matches the old one in length and seat style.
• Do not apply anti-seize unless the plug maker specifically instructs it (most modern plugs are plated and don’t need it).
• Start each plug by hand using the spark plug socket and extension only (no ratchet yet) so it threads in smoothly.
• Tighten with a torque wrench: Torque to 23 Nm (17 ft-lbs).
• Tip: Hand-starting prevents cross-threading.

Step 7: Reinstall the ignition coils

• Add a tiny smear of dielectric grease inside each coil boot (this helps prevent moisture and makes future removal easier).
• Push each coil straight down until fully seated.
• Reconnect each coil connector until it clicks/locks.

Step 8: Reinstall the engine cover

• Line up the cover with the mounting points and press down firmly by hand until it snaps into the grommets.
• If you disconnected the battery, reconnect it using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds; it should run smooth with no shaking.
• Listen for any ticking/air leaks near the top of the engine and re-check coil connectors if it runs rough.
• If the check engine light comes on or flashes, stop driving and re-check coil plugs and coil seating.
• Take a short test drive and do a few gentle accelerations to confirm no hesitation.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$120 (parts only)

You Save: $130-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
