🔧 Sportage - Spark Plug Replacement

On your Sportage’s 2.4L engine, the spark plugs sit under the ignition coils on top of the engine. Replacing them restores smooth starting, fuel economy, and prevents misfires as the plugs wear.

Difficulty Level: Beginner | Estimated Time: 1.0-2.0 hours

Assumption: 2.4L inline-4 (coil-on-plug) with spark plugs accessible from the top.

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and prevent thread damage in the aluminum cylinder head.
• ⚠️ Keep dirt out of the spark plug holes—debris can fall into the cylinder and cause damage.
• ⚠️ Disconnecting the battery is recommended to prevent accidental shorts: remove the negative terminal first.
• ⚠️ Do not overtighten spark plugs—stripped threads in the head are an expensive repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–30 ft-lbs range)
• 6" 3/8" drive extension
• 5/8" spark plug socket (rubber insert or magnetic)
• Small flat trim tool
• Compressed air blow gun
• Feeler gauge set
• Dielectric grease

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-spec type for 2.4L) - Qty: 4

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1 hour after driving).
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.
• Lay out the new plugs in order and keep everything clean.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the cover straight up to pop it off the mounting grommets (use hands; if stuck, gently help with a small flat trim tool).

Step 2: Locate and unplug the ignition coils

• You’ll see 4 ignition coils (one per cylinder) on top of the valve cover.
• Press the connector tab and unplug each coil electrical connector. If the tab is stubborn, gently assist with a small flat trim tool.
• Tip: Don’t pull on the wires.

Step 3: Remove the ignition coils

• Use a 10mm socket and 3/8" ratchet to remove each ignition coil retaining bolt.
• Twist the coil slightly, then pull straight up to remove it.
• Set coils aside in a clean area (keep them in order if possible).

Step 4: Clean the spark plug wells

• Use a compressed air blow gun to blow out dirt around each spark plug hole before removing the plug.
• This prevents grit from falling into the engine.

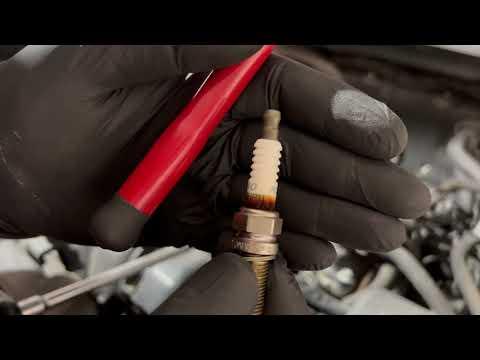

Step 5: Remove the old spark plugs

• Install the 5/8" spark plug socket on a 6" 3/8" drive extension and 3/8" ratchet.
• Turn counterclockwise to loosen, then remove the plug.
• If a plug feels extremely tight, stop and work it gently—tight plugs can strip threads if forced on a warm engine.

Step 6: Check and set the gap on the new plugs

• Use a feeler gauge set to verify the gap matches the OEM specification on the plug box/underhood emission label.
• If adjustment is needed, adjust carefully—do not pry on fine-wire iridium tips.
• Tip: “Gap” is the tiny space at the electrode tip.

Step 7: Install the new spark plugs by hand first

• Place a new plug into the 5/8" spark plug socket and lower it into the hole.
• Thread it in by hand using only the extension/socket (no ratchet at first) to avoid cross-threading.
• Once finger-tight, switch to the 3/8" drive torque wrench to tighten.
• Torque to 18 Nm (13 ft-lbs).
• Tip: Never use anti-seize on plated plugs unless specified.

Step 8: Reinstall the ignition coils

• Add a tiny smear of dielectric grease inside each coil boot (this helps prevent moisture and makes future removal easier). Dielectric grease is a non-conductive silicone grease for electrical boots.
• Push each coil straight down until fully seated on the plug.
• Install coil bolts using a 10mm socket.
• Torque to 9 Nm (80 in-lbs).

Step 9: Reconnect electrical connectors and reassemble

• Plug each coil connector back in until it clicks.
• Reinstall the engine cover (press down to snap into place).
• If disconnected, reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds. It should run smooth with no shaking.
• If the check engine light comes on or it runs rough, shut it off and re-check that every coil connector is fully clicked in.
• Take a short test drive and confirm normal acceleration with no misfire.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
