🔧 Camaro - Spark Plug Replacement

On your Camaro, spark plugs wear over time and can cause misfires, rough idle, poor fuel economy, and hard starts. Replacing them means removing the ignition coils, swapping all 6 plugs, and torquing them correctly so the aluminum cylinder heads aren’t damaged.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine (hot aluminum threads strip easily).
• ⚠️ Disconnect the negative battery cable before unplugging coils/connectors.
• ⚠️ Do not over-tighten spark plugs; always use a torque wrench.
• ⚠️ Keep dirt out of the plug wells and intake ports (blow out debris first).
• ⚠️ If you remove the intake manifold, cover open intake ports immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–50 ft-lbs range)
• 5/8" spark plug socket (rubber insert or magnetic)
• 3/8" drive extension set (3", 6", 10")
• 3/8" drive universal joint (swivel)
• 10mm socket
• 8mm socket
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Compressed air blow gun
• Feeler gauge (wire type)
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

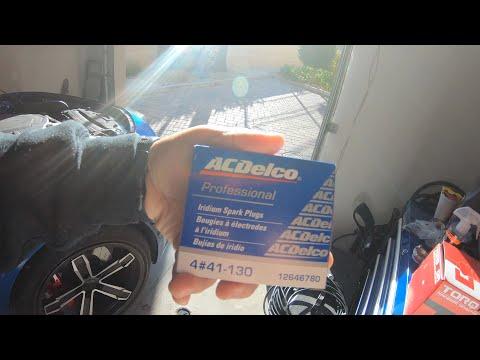

• Spark plugs (iridium) - Qty: 6
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (ideally 2+ hours after driving).
• Open the trunk and disconnect the negative battery cable using a 10mm socket.
• Decide your access path: on some setups you can reach all coils; on others the rear bank is tight and the intake manifold must come off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake duct

• Pull up to remove the engine cover (it’s held by rubber grommets).
• Loosen the intake hose clamps using a flathead screwdriver.
• Remove any intake duct fasteners with an 8mm socket, then lift the duct out.

Step 2: Blow out dirt around the ignition coils

• Use a compressed air blow gun to blow debris away from each coil and plug well.
• Clean first so dirt won’t fall in.

Step 3: Remove ignition coils (front bank first)

• Unplug each coil connector (press the tab, then pull).
• Remove the coil bolt using a 10mm socket.
• Twist the coil boot slightly, then pull the coil straight up.

Step 4: Check rear bank access (choose Path A or Path B)

• If you can clearly reach the rear three coil bolts/connectors with a 10mm socket and extensions, follow Path A.
• If access is too tight, follow Path B (intake manifold removal).

Step 5A (Path A): Remove rear-bank ignition coils

• Unplug the rear coil connectors by hand (use needle-nose pliers only if needed, gently).
• Remove rear coil bolts using a 10mm socket, 3/8" extensions, and a universal joint (swivel).
• Pull each rear coil straight up and set aside in order.

Step 5B (Path B): Remove the intake manifold for rear-bank access

• Disconnect electrical connectors and hoses attached to the manifold area (release clips using a trim clip removal tool as needed).
• Remove the throttle body fasteners using an 8mm socket and move it aside carefully (do not kink hoses/wiring).
• Remove the intake manifold bolts using a 10mm socket.
• Lift the intake manifold off and immediately cover the intake ports with clean shop towels.
• Remove the rear-bank ignition coils using a 10mm socket and 3/8" extensions.

Step 6: Remove the old spark plugs

• Insert a 5/8" spark plug socket with a 3/8" extension and loosen each plug.
• Turn slowly; if a plug feels stuck, tighten slightly then loosen again to avoid thread damage.
• Lift the plug out with the socket (rubber insert/magnet holds it).

Step 7: Verify the new plug gap (and handle plugs correctly)

• Use a feeler gauge (wire type) to verify the gap matches the plug manufacturer’s spec for your Camaro.
• Do not “re-gap” most iridium plugs by prying on the center electrode.
• If one is bent, replace that plug.

Step 8: Install the new spark plugs

• Thread each new plug in by hand first using the 5/8" spark plug socket and extension (no ratchet at first).
• Once finger-tight, torque each plug using a 3/8" drive torque wrench (a torque wrench sets exact tightness). Torque to 18 Nm (13 ft-lbs).
• Avoid anti-seize unless your plug maker specifically requires it (most plated plugs do not).

Step 9: Reinstall ignition coils

• Apply a small dab of dielectric grease inside each coil boot (it helps prevent moisture and makes future removal easier).
• Push each coil straight onto its plug until fully seated.
• Install and tighten each coil bolt with a 10mm socket, then torque with a 3/8" torque wrench. Torque to 10 Nm (89 in-lbs).
• Reconnect each coil electrical connector until it clicks.

Step 10 (Path B only): Reinstall the intake manifold and throttle body

• Install new manifold gaskets (do not reuse crushed gaskets).
• Set the intake manifold in place and hand-start all bolts using a 10mm socket.
• Tighten manifold bolts evenly, then torque with a 3/8" torque wrench. Torque to 25 Nm (18 ft-lbs).
• Install the throttle body with a new gasket using an 8mm socket. Torque to 10 Nm (89 in-lbs).
• Reconnect all hoses/connectors you removed.

Step 11: Reinstall the intake duct and engine cover

• Reinstall the intake duct and tighten clamps using a flathead screwdriver.
• Reinstall any duct fasteners using an 8mm socket.
• Press the engine cover back into its grommets.

Step 12: Reconnect the battery and do a first start

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and let it idle for 1–2 minutes.
• If the check engine light flashes or it runs rough, shut it off and re-check coil connectors.

---

✅ After Repair

• Test drive 5–10 minutes and verify smooth acceleration with no hesitation.
• Recheck for intake/vacuum leaks if you removed the intake manifold (hissing sound, high idle).
• If a check engine light remains on, scan for codes to confirm which cylinder is affected.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $240-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
