🔧 Wrangler - Spark Plug Replacement

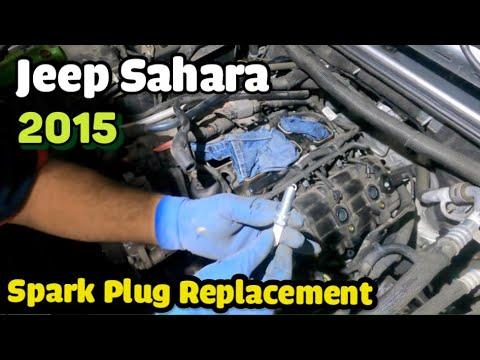

On your Wrangler’s 3.6L V6, spark plugs wear over time and can cause misfires, rough idle, and worse fuel economy. This job replaces all six plugs and re-installs the ignition coils (the coil sits on top of each plug and delivers spark).

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and damaged threads in the aluminum cylinder heads.
• ⚠️ Keep dirt out of the plug holes; debris can damage the engine.
• ⚠️ Do not use anti-seize on modern nickel-plated spark plug threads unless the plug maker specifically requires it.
• ⚠️ Disconnecting the battery is not required, but it’s OK to disconnect the negative terminal if you prefer extra safety around electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4-inch drive ratchet
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench (10-30 ft-lbs range)
• 1/4-inch drive torque wrench (50-120 in-lbs range)
• 5/8-inch spark plug socket
• 3/8-inch drive extension set
• 3/8-inch drive universal joint
• Trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Compressed air nozzle
• Shop vacuum
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-style, 3.6L V6) - Qty: 6
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (cold to the touch).
• Open the hood and remove any loose dirt/leaves near the engine with a shop vacuum.
• Optional: If you want extra safety, disconnect the battery negative cable using a 10mm socket and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Remove the engine cover (it pulls upward) using your hands; if it’s stubborn, gently work side-to-side.
• If the air intake tube/resonator blocks access on your Wrangler, loosen the hose clamp using an 8mm socket or flathead screwdriver, then lift the tube/resonator out of the way.
• Use a flashlight to identify the ignition coils (one per cylinder) on both sides of the engine.

Step 2: Do one cylinder at a time

• Work one coil/plug at a time so you don’t mix anything up.
• One-at-a-time prevents connector mix-ups.

Step 3: Unplug the ignition coil connector

• Press the electrical tab and unplug the coil connector by hand.
• If the connector is stuck, use a trim clip tool gently to help release the tab (don’t pry hard).

Step 4: Remove the ignition coil

• Remove the coil hold-down bolt using a 10mm socket and 1/4-inch drive ratchet.
• Twist the coil slightly, then pull it straight up and out.
• Set the coil where it won’t get dirty.

Step 5: Clean the spark plug well before removing the plug

• Blow out the spark plug well using a compressed air nozzle while wearing safety glasses.
• If you see loose dirt, use a shop vacuum to remove it first.

Step 6: Remove the old spark plug

• Install a 5/8-inch spark plug socket onto a 3/8-inch drive extension and 3/8-inch drive ratchet, then loosen and remove the spark plug.
• If you need extra angle to reach the rear cylinders, add a 3/8-inch drive universal joint (this is a swivel that lets the socket bend to reach tight spots).
• If a plug feels extremely tight, stop and re-check that the engine is fully cool.

Step 7: Install the new spark plug (start by hand)

• Verify the new spark plug matches the old one (same length and tip style).
• Thread the new spark plug in by hand first using the 5/8-inch spark plug socket and a 3/8-inch drive extension (no ratchet at first) to avoid cross-threading.
• Tighten with a 3/8-inch drive torque wrench: Torque to 17 N·m (13 ft-lbs).

Step 8: Reinstall the ignition coil

• Put a small dab of dielectric grease inside the coil boot.
• Push the coil straight down onto the plug until it seats.
• Install the coil hold-down bolt using a 10mm socket, then tighten with a 1/4-inch drive torque wrench: Torque to 8 N·m (71 in-lbs).
• Reconnect the coil electrical connector until it clicks.

Step 9: Repeat for the remaining five cylinders

• Repeat Steps 3–8 for all remaining cylinders.
• Use the universal joint and longer extensions as needed for the rear plugs.

Step 10: Reinstall the intake pieces and engine cover

• Reinstall the intake tube/resonator (if removed) and tighten the clamp using an 8mm socket or flathead screwdriver.
• Reinstall the engine cover by pressing it down evenly by hand until it snaps into place.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should run smooth with no shaking.
• If the check engine light comes on or it runs rough, shut it off and re-check that every coil connector is fully clicked in.
• Take a short test drive and verify normal power and no misfire feel under light acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $200-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
