🔧 Escalade - Spark Plug Replacement

Replacing the spark plugs restores proper ignition, helps prevent misfires, and can improve idle and fuel economy. On your Escalade’s 6.2L V8, you’ll remove the ignition coils, swap the plugs, then reinstall and torque everything correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and to prevent damaging aluminum threads.
• ⚠️ Disconnect the negative battery cable with a 10mm wrench to prevent accidental shorts.
• ⚠️ Do not pull on wires; unplug connectors by the plastic lock/tab.
• ⚠️ Keep dirt out of the spark plug holes; contamination can damage the engine.
• ⚠️ Do not use anti-seize on these plugs unless the plug manufacturer specifically requires it (most modern plugs are nickel-coated).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 3/8" ratchet
• 3/8" torque wrench (10-30 ft-lbs range)
• 5/8" spark plug socket (rubber insert or магнит type)
• 3/8" extension set (3", 6", 10")
• 3/8" universal joint swivel
• Trim clip tool
• Flat-blade screwdriver
• Compressed air blow gun
• Feeler gauge (0.040")
• Dielectric grease
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (correct OEM-equivalent for 6.2L V8) - Qty: 8
• Ignition coil boots - Qty: 8

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool completely (at least 1 hour after driving).
• 🔋 Use a 10mm wrench to disconnect the negative battery cable and move it aside so it can’t spring back.
• 🧼 Have compressed air ready to blow out spark plug wells before removing plugs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Remove the plastic engine cover by pulling upward firmly with both hands.
• If you need more room, loosen the intake duct clamps with a flat-blade screwdriver and move the duct/resonator slightly aside.
• Take a quick photo before disconnecting anything.

Step 2: Unplug and remove one ignition coil (do one cylinder at a time)

• Locate an ignition coil on a valve cover (there are 8 total).
• Unplug the coil electrical connector by releasing the lock/tab by hand (use a trim clip tool gently if needed).
• Remove the coil bolt using a 10mm socket and 3/8" ratchet.
• Twist the coil slightly, then pull it straight up to remove it from the spark plug well.
• Doing one at a time prevents mixing parts up.

Step 3: Clean the spark plug well

• Use compressed air blow gun to blow debris out of the spark plug well before loosening the plug.
• Keep your face back and wear safety glasses.

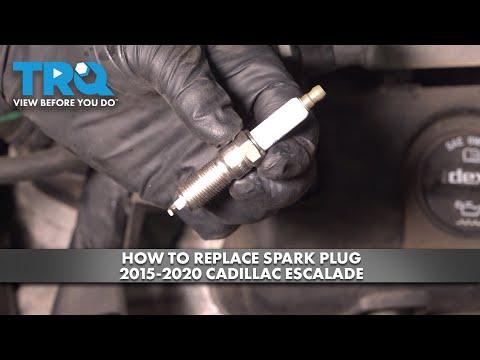

Step 4: Remove the old spark plug

• Install a 5/8" spark plug socket on a 3/8" extension and 3/8" ratchet, then loosen and remove the spark plug.
• For tight rear cylinders, add a 3/8" universal joint swivel to help line up with the plug.
• If it feels unusually tight coming out, stop and work it back-and-forth gently to protect the threads.

Step 5: Check and prepare the new spark plug

• Verify the gap with a feeler gauge (0.040"). Adjust only if the plug manufacturer allows it (many iridium plugs should not be bent/adjusted aggressively).
• Apply a tiny amount of dielectric grease inside the coil boot only (dielectric grease is a non-conductive grease that helps prevent moisture and boot sticking).
• Do not put grease on the spark plug threads.

Step 6: Install and torque the new spark plug

• Thread the new plug in by hand using the spark plug socket and extension only (no ratchet at first) to avoid cross-threading.
• Once seated, torque the spark plug using a 3/8" torque wrench: Torque to 18 Nm (13 ft-lbs).

Step 7: Reinstall the ignition coil

• Push the coil straight down until it seats firmly on the plug.
• Install the coil bolt using a 10mm socket, then torque it with a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the electrical connector until it clicks/locks.

Step 8: Repeat for the remaining 7 spark plugs

• Repeat Steps 2–7 for each cylinder.
• Use the extension set and universal joint swivel as needed for the rear plugs.

Step 9: Reinstall intake pieces and engine cover

• Reposition any intake ducting you moved and tighten clamps with a flat-blade screwdriver.
• Reinstall the engine cover by aligning the grommets and pressing down firmly.
• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• ✅ Start the engine and let it idle for 1–2 minutes. It should run smooth with no shaking.
• ✅ If you have a check engine light or misfire after this job, recheck that every coil connector is fully clicked in.
• ✅ Take a short test drive, then recheck for any loose intake clamps or odd hissing (vacuum leak sound).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
