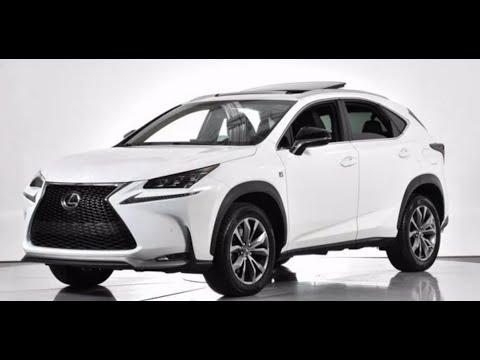

🔧 NX200t - Spark Plug Replacement

On your NX200t, the spark plugs fire the air/fuel mix in each cylinder. Worn plugs can cause rough idle, reduced power, and misfires, so replacing them restores smooth running and fuel economy.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot aluminum threads can strip.
• ⚠️ Disconnect the negative battery terminal to prevent accidental shorting.
• ⚠️ Keep dirt out of the plug holes—debris can damage the engine.
• ⚠️ Do not over-tighten spark plugs; use a torque wrench.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm combination wrench
• 3/8" ratchet
• 3/8" torque wrench (10-30 Nm range)
• 6" 3/8" extension
• 12" 3/8" extension
• 14mm spark plug socket (rubber insert or магнит type)
• Small flat trim tool
• Compressed air blow gun
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM-type for NX200t 2.0L turbo) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully (at least 1 hour).
• Use a 10mm wrench to disconnect the negative battery terminal and move it aside so it can’t spring back.
• Replace plugs one cylinder at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the plastic engine cover and pull upward firmly to release the rubber grommets.
• Use a flashlight to locate the ignition coils on top of the engine.

Step 2: Unplug the ignition coil electrical connectors

• Use a small flat trim tool to gently lift the connector lock tab (a small safety latch) if equipped.
• Press the release and pull the connector straight off each coil.

Step 3: Remove the ignition coils

• Use a 10mm socket with a 3/8" ratchet and 6" extension to remove the coil hold-down bolt.
• Twist the coil slightly, then pull straight up to remove it from the spark plug tube.
• Don’t yank the wiring harness.
• Repeat for all four coils (or do one at a time).
• When reinstalling coil bolts later: Torque to 10 Nm (89 in-lbs).

Step 4: Clean around the spark plug tubes

• Put on safety glasses.
• Use a compressed air blow gun to blow dirt out of each spark plug well (the deep hole the plug sits in).

Step 5: Remove the old spark plugs

• Install a 14mm spark plug socket on a 12" 3/8" extension and 3/8" ratchet.
• Turn counterclockwise to loosen, then spin the plug out the rest of the way.
• Lift the plug out carefully with the socket.

Step 6: Install the new spark plugs (by hand first)

• Verify the new plugs match the old ones (length and tip style). Iridium plugs are typically pre-gapped—do not bend the tiny tip.
• Place the new plug into the 14mm spark plug socket.
• Thread the plug in by hand using only the extension (no ratchet at first). This helps prevent cross-threading (starting the plug crooked).
• Once seated, use a 3/8" torque wrench to tighten: Torque to 18 Nm (13 ft-lbs).
• If it doesn’t thread easily, stop and restart.

Step 7: Reinstall the ignition coils

• Apply a tiny dab of dielectric grease inside the coil boot (the rubber sleeve) before installing. (Dielectric grease helps prevent moisture and makes future removal easier.)
• Push each coil straight down until fully seated.
• Install the coil hold-down bolt using a 10mm socket and 3/8" ratchet.
• Tighten with a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs).

Step 8: Reconnect coil connectors and reinstall the engine cover

• Push each electrical connector on until it clicks/locks.
• Reinstall the engine cover by aligning the grommets and pressing down firmly.
• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; it should run smoothly.
• Check that no warning lights appear and there’s no shaking/misfire.
• If you have a scan tool, clear any stored misfire codes and confirm none return.
• Take a short test drive and recheck for any roughness under acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $50-$120 (parts only)

You Save: $250-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
