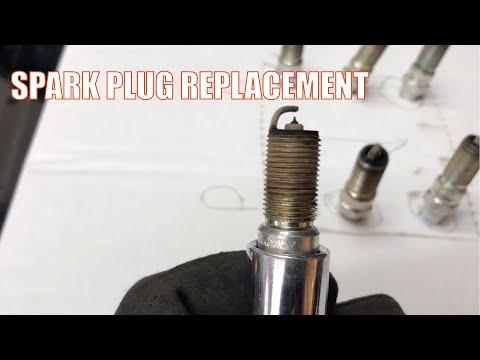

🔧 Canyon - Spark Plug Replacement

Your Canyon’s spark plugs wear over time and can cause misfires, rough idle, poor fuel economy, and hard starts. On the 3.6L V6, the front bank is easy to reach, but the rear bank typically requires removing the upper intake manifold for access.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and to prevent thread damage in the aluminum cylinder heads.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils and removing the intake manifold.
• ⚠️ Keep dirt out of the intake ports; cover openings immediately after the manifold comes off.
• ⚠️ Do not use anti-seize on modern plated spark plug threads; it can cause over-tightening.
• ⚠️ If a plug feels stuck, stop and work it gently to avoid stripping the head.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• 1/4" ratchet
• 3/8" ratchet
• 3/8" torque wrench (10-30 ft-lbs range)
• 1/4" torque wrench (50-150 in-lbs range)
• 10mm socket
• 8mm socket
• 7mm socket
• 3/8" extension set (3", 6", 10")
• 3/8" swivel joint
• 5/8" spark plug socket
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Compressed air blow gun
• Shop towels
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (ACDelco iridium-equivalent, correct for your 3.6L) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease (for coil boots) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and open the hood.
• 🧊 Let the engine cool completely (at least 1 hour after driving).
• 🔋 Disconnect the negative battery cable using a 10mm wrench.
• 🧼 Use compressed air blow gun to blow dirt away from the coil areas before you remove anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and air intake duct

• Pull up on the engine cover to release it from its grommets (use a trim clip removal tool if it’s stubborn).
• Loosen the intake duct clamps using a 7mm socket, then remove the duct.
• Unplug any intake tube sensor connector(s) by lifting the lock tab with a flathead screwdriver, then pulling straight out.

Step 2: Replace the front bank spark plugs (easy access side)

• Unplug each ignition coil connector by releasing the lock with a flathead screwdriver and pulling it off.
• Remove each coil bolt using a 10mm socket, then lift the coil out. (A “coil boot” is the rubber sleeve that seals around the spark plug.)
• Blow out the spark plug well using the compressed air blow gun so debris can’t fall into the cylinder.
• Remove the spark plug using a 5/8" spark plug socket, 3/8" ratchet, and a 3/8" extension.
• Thread the new spark plug in by hand using the spark plug socket and extension only (no ratchet) until fully seated.
• Tighten using a 3/8" torque wrench: Torque to 18 Nm (13 ft-lbs).
• Apply a tiny smear of dielectric grease inside the coil boot, then reinstall the coil.
• Tighten coil bolts using a 1/4" torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the coil electrical connectors until they click.
• Tip: Do one cylinder at a time.

Step 3: Remove the upper intake manifold to access the rear bank

• Disconnect the electrical connector(s) on the throttle body using a flathead screwdriver to release the lock tab.
• Remove the throttle body bolts using an 8mm socket and set the throttle body aside (do not strain the wiring).
• Disconnect vacuum/EVAP lines from the intake using needle-nose pliers where spring clamps are used, and a flathead screwdriver for quick-connect locks.
• Unplug the intake manifold sensor connector(s) (commonly MAP) by hand; use a flathead screwdriver only if the lock is stuck.
• Remove the upper intake manifold bolts using a 10mm socket with a 3/8" extension.
• Lift the manifold straight up and off. Immediately place shop towels into the intake ports to keep anything from falling in.
• Tip: Stuff towels deep enough to stay put.

Step 4: Replace the rear bank spark plugs

• Unplug each rear-bank ignition coil connector (use a flathead screwdriver to release the lock tab if needed).
• Remove coil bolts with a 10mm socket and lift the coils out.
• Blow out each spark plug well using the compressed air blow gun.
• Remove spark plugs using a 5/8" spark plug socket, 3/8" ratchet, 3/8" extension, and 3/8" swivel joint. (A “swivel joint” lets the socket bend to reach tight angles.)
• Install new plugs by hand first, then tighten with a 3/8" torque wrench: Torque to 18 Nm (13 ft-lbs).
• Add a small amount of dielectric grease inside each coil boot, reinstall coils, then tighten coil bolts: Torque to 10 Nm (89 in-lbs).
• Reconnect all coil connectors.

Step 5: Reinstall the upper intake manifold and throttle body

• Remove the shop towels from the intake ports (count them to ensure none are left behind).
• Replace the upper intake manifold gaskets with the new set.
• Set the manifold in place and start all bolts by hand.
• Tighten the upper intake manifold bolts using a 3/8" torque wrench: Torque to 25 Nm (18 ft-lbs).
• Install the throttle body with a new gasket and tighten bolts using a 1/4" torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect all vacuum/EVAP lines and all electrical connectors.

Step 6: Reinstall the air intake duct and engine cover

• Reinstall the intake duct and tighten clamps using a 7mm socket.
• Reconnect any sensor connector(s) on the intake duct.
• Press the engine cover back onto its grommets until it seats.
• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• 🔍 Double-check every coil connector is fully clicked in and every hose is reattached.
• 🚗 Start the engine and let it idle for 2-3 minutes; it should run smooth with no check engine light.
• 🧯 If you hear a loud hissing, shut it off and re-check for a vacuum hose left off or an intake gasket pinched.
• 🛠️ If a check engine light appears, scan for codes and re-check coil connectors (most common issue after this job).

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹28,000 (parts + labor)

DIY Cost: ₹3,000-₹10,000 (parts only)

You Save: ₹9,000-₹18,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,000/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
