🔧 RAV4 - Spark Plug Replacement

You’ll be replacing the four spark plugs on your RAV4’s 2.5L engine. This helps restore smooth starting, better fuel economy, and power if the old plugs are worn.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a completely cool engine to avoid burns from hot metal and plastic parts.
• ⚠️ Disconnect the negative battery terminal to avoid accidental short circuits or check-engine lights.
• ⚠️ Do not overtighten spark plugs; the cylinder head is aluminum and threads can be damaged.
• ⚠️ Keep dirt out of the spark plug holes; debris inside the cylinder can cause engine damage.
• ⚠️ Only pull on connector plugs, not on the wires, to avoid breaking coil wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 14mm spark plug socket (with rubber insert or magnet)
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive extension (6" length)
• 🛠️ Torque wrench (3/8" drive, 5–60 ft-lbs range)
• 🛠️ Flathead screwdriver (small)
• 🛠️ Needle-nose pliers
• 🛠️ Compressed air can or hand air blower
• 🛠️ Clean rag
• 🛠️ Dielectric grease (for ignition coils)
• 🛠️ Fender cover or old towel
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Iridium spark plugs (Toyota-spec, 2.5L 2AR-FE) - Qty: 4
• 🔩 Anti-seize compound (high-temp, optional, very small amount) - Qty: 1
• 🔩 Battery terminal protector spray (optional) - Qty: 1

---

📋 Before You Begin

• 🧾 Park the RAV4 on level ground, shift to Park, and set the parking brake.
• 🧾 Turn off the engine and remove the key; let the engine cool at least 30–45 minutes.
• 🧾 Open the hood and support it with the hood prop rod.
• 🧾 Disconnect the negative (black) battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• 🧾 Lay a fender cover or towel over the front bumper to protect paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the plastic engine cover

• Use your hands to gently pull up on the plastic engine cover in the center; it is held by rubber grommets that pop off metal posts.
• If it feels stuck, gently pry up near the corners with your flathead screwdriver, being careful not to crack the cover.
• Lift the cover off and set it aside in a safe place.

Step 2: Locate the ignition coils

• You will see four black ignition coils on top of the engine, each with an electrical connector and a small 10mm bolt.
• Each coil sits directly above one spark plug.
• Blow away any loose dirt around the coils with your compressed air before opening anything.

Step 3: Disconnect ignition coil connectors

• Pick one coil to start with; always work one cylinder at a time so you do not mix parts.
• On the connector, press the small plastic locking tab with your thumb or a flathead screwdriver and gently pull the connector straight back.
• If it is stuck, wiggle it gently while pressing the tab; do not pull on the wires.

Step 4: Remove the ignition coil

• Use a 10mm socket and ratchet to remove the single bolt holding the coil to the valve cover.
• Set the bolt aside where it will not roll away.
• Grip the coil body and pull it straight up; you may need to twist it slightly to break the rubber seal loose.
• Place the coil somewhere clean; this will go back in the same hole.

Step 5: Clean around the spark plug well

• Look down into the spark plug tube; check for dirt or debris at the top.
• Use compressed air to blow out the area so nothing falls into the cylinder when you remove the plug.
• Always clean before loosening the plug.

Step 6: Remove the old spark plug

• Attach the 14mm spark plug socket to your 3/8" extension and ratchet.
• Carefully lower the socket straight down into the spark plug tube until it fully seats on the plug.
• Turn the ratchet counterclockwise to break the plug loose. It may be snug at first, then spin more easily.
• Once loose, spin the plug out by hand using the extension only, no ratchet.
• Lift out the plug; the rubber insert or magnet in the socket should hold it.

Step 7: Check and prepare the new spark plug

• Take one new iridium plug out of the box and compare it to the old one to confirm same length and thread size.
• The plug should be pre-gapped to about 1.1 mm (0.043 in); if you check the gap, do it gently and do not bend the fine iridium tip.
• If you choose to use anti-seize, apply a very tiny smear to the plug threads only, then wipe off excess with a clean rag. Many manufacturers say it is not required on modern plugs.

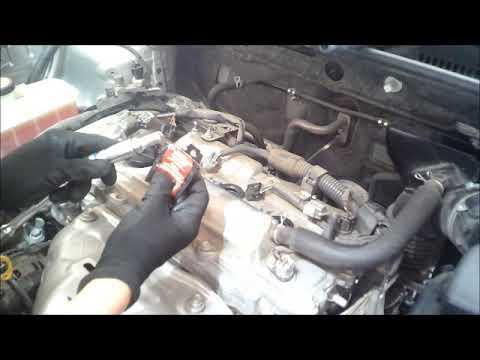

Step 8: Install the new spark plug

• Place the new plug into the 14mm spark plug socket so it is held straight.
• Carefully lower it into the spark plug tube and start threading it by hand using only the extension (no ratchet yet).
• Turn clockwise by hand at least 6–7 full turns. If you feel resistance or cross-threading, stop, back it out, and start again.
• Once hand-tight, attach the ratchet and lightly snug the plug.
• Attach the torque wrench set to 18 Nm (13 ft-lbs) and tighten the plug until the wrench clicks. Do not go past the click.

Step 9: Reinstall the ignition coil

• Put a tiny amount of dielectric grease inside the rubber boot of the coil; this helps prevent moisture and makes future removal easier.
• Slide the coil straight down onto the new spark plug until it fully seats.
• Reinstall the 10mm coil bolt by hand first, then tighten with a 10mm socket and ratchet.
• If you use a torque wrench, tighten the coil bolt to about 9 Nm (80 in-lbs). This is just snug; do not overtighten.
• Reconnect the electrical connector; push until you hear or feel a click.

Step 10: Repeat for the remaining cylinders

• Repeat Steps 3–9 for the remaining three ignition coils and spark plugs, doing them one at a time.
• Same process for all four plugs.
• Double-check that each coil bolt is snug and each connector is fully clicked in.

Step 11: Reinstall the engine cover

• Position the plastic engine cover over the engine so its holes line up with the mounting posts.
• Press down firmly with your hands at each corner and in the middle until it snaps into place.

Step 12: Reconnect the battery

• Reattach the negative (black) battery cable to the battery post using your 10mm socket.
• Tighten until snug; do not overtighten. The clamp should not move if you twist it by hand.
• Remove your fender cover or towel and close the hood.

---

✅ After Repair

• ✅ Start the engine and let it idle. It should start quickly and run smoothly without misfires or shaking.
• ✅ If the engine light comes on or it runs rough, turn it off and recheck each coil connector and coil bolt.
• ✅ Take a short test drive, listening for smooth acceleration and normal power.
• ✅ If your radio presets or clock reset when the battery was disconnected, re-enter them from the infotainment menu.

---

💰 DIY vs Shop Cost

Shop Cost: $180–$280 (parts + labor)

DIY Cost: $40–$80 (parts only)

You Save: $140–$200 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours.

---
