🔧 Transit Connect - Spark Plug Replacement

Replacing the spark plugs helps your Transit Connect start easier, idle smoother, and prevent misfires under load. On your 2.5L, the plugs sit under the ignition coils on top of the engine, so it’s a straightforward “remove coil → remove plug → install new plug” job.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: 2.5L uses coil-on-plug with top-access plugs.

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and prevent thread damage in the aluminum cylinder head.
• ⚠️ Keep dirt out of the spark plug holes—debris can damage the engine if it falls inside.
• ⚠️ If you disconnect the battery, use a 10mm wrench and remove the negative terminal first.
• ⚠️ Do not use anti-seize unless the plug maker specifically requires it—most modern plugs are nickel-plated and can over-tighten if anti-seize is added.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• 10mm wrench
• 8mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• 6" extension (1/4" drive)
• 5/8" spark plug socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Compressed air blow gun
• Small pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (correct OEM-equivalent type for 2.5L) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely.
• If you choose to disconnect the battery: use a 10mm wrench to remove the negative terminal and set it aside so it can’t spring back.
• Have compressed air ready—this is used to blow dirt away from the spark plug wells before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use your hands to lift the cover straight up (some covers are push-on grommets).
• If your cover uses fasteners, remove them with an 8mm socket and 1/4" drive ratchet.

Step 2: Unplug and unbolt the ignition coils

• Locate the ignition coils on top of the engine (one coil per cylinder). An ignition coil is the pencil-shaped part that snaps onto the spark plug.
• Release each electrical connector lock using a small pick tool, then unplug the connector by hand.
• Remove the coil hold-down bolt using an 8mm socket, 1/4" drive ratchet, and a 3" extension (1/4" drive).
• Twist the coil slightly, then pull it straight up to remove it.
• Tip: Do one cylinder at a time.

Step 3: Clean around the spark plug wells

• Blow compressed air down into the spark plug tube using a compressed air blow gun.
• This prevents sand/grit from falling into the cylinder when the plug comes out.

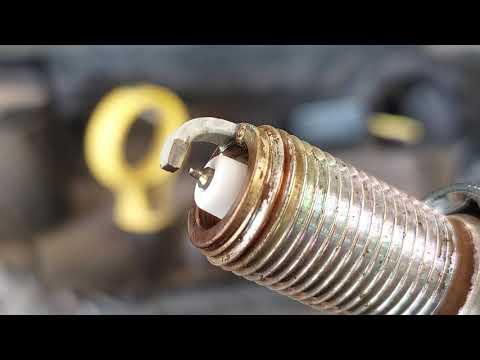

Step 4: Remove the old spark plugs

• Install the 5/8" spark plug socket onto a 6" extension (3/8" drive) and 3/8" drive ratchet.
• Lower the socket straight onto the plug and loosen it counterclockwise.
• Once loose, spin it out carefully and lift it out.
• If a plug feels extremely tight: stop, tighten slightly, then loosen again slowly to avoid thread damage.

Step 5: Check and prep the new spark plugs

• Compare the new plugs to the old ones (same length and seat style).
• Do not change the gap unless your plug manufacturer instructs you to—many modern plugs are pre-gapped and can be damaged by bending.
• Put a small dab of dielectric grease inside the ignition coil boot (the rubber inside the coil). Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.

Step 6: Install and torque the new spark plugs

• Thread each new plug in by hand first using the 5/8" spark plug socket and extension (no ratchet at first) to avoid cross-threading.
• Once seated, torque each plug with a torque wrench (inch-pound): Torque to 106 in-lb (12 Nm).
• Tip: If it doesn’t thread easily, back out and restart.

Step 7: Reinstall the ignition coils

• Push each coil straight down onto its plug until you feel it seat.
• Install the coil hold-down bolt using an 8mm socket and 1/4" drive ratchet, then tighten with a torque wrench (inch-pound): Torque to 62 in-lb (7 Nm).
• Reconnect each coil electrical connector by hand until it clicks/locks.

Step 8: Reinstall the engine cover and reconnect battery (if disconnected)

• Reinstall the engine cover (push down into grommets, or tighten fasteners with an 8mm socket).
• If battery was disconnected, reconnect the negative terminal using a 10mm wrench and tighten snugly.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should run smooth with no flashing check engine light.
• Listen for a “ticking” sound near the plugs/coils—if present, shut off and re-check coil seating and plug torque.
• If the check engine light is on, scan for codes (misfire codes like P0300–P0304 may indicate a connector not fully latched or a coil not seated).
• Take a short test drive and verify normal power and smooth acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
