🔧 Camry - Spark Plug Replacement

On your Camry, the spark plugs sit under the ignition coils on top of the engine. Replacing them helps prevent misfires, rough idle, and poor fuel economy as the plugs wear with mileage.

Difficulty Level: Beginner | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine to avoid burns and to protect aluminum threads in the cylinder head.
• ⚠️ Keep dirt out of the spark plug holes—debris can damage the engine.
• ⚠️ If you disconnect the battery, use a 10mm wrench and remove the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" ratchet
• 3/8" extension (6")
• 3/8" extension (10")
• 14mm spark plug socket (rubber insert)
• Torque wrench (3/8", 5–80 Nm range)
• Trim clip tool
• Compressed air nozzle
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM-spec) - Qty: 4
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully (at least 1 hour after driving).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a 10mm socket and 3/8" ratchet to remove any cover fasteners, or lift straight up if it’s held by grommets.
• Set the cover aside.

Step 2: Unplug the ignition coil connectors

• Each cylinder has an ignition coil on top.
• Use a trim clip tool to gently help release the connector lock tab if it’s stubborn.
• Pull the connector straight off (don’t pull on the wires).

Step 3: Remove the ignition coils

• Use a 10mm socket with a 3/8" extension (6") and 3/8" ratchet to remove the coil hold-down bolt.
• Twist the coil slightly, then pull straight up to remove it.
• Tip: Do one cylinder at a time.

Step 4: Clean the spark plug wells

• Put on safety glasses.
• Use the compressed air nozzle to blow out each spark plug well.
• This prevents dirt from falling into the cylinder when the plug comes out.

Step 5: Remove the old spark plugs

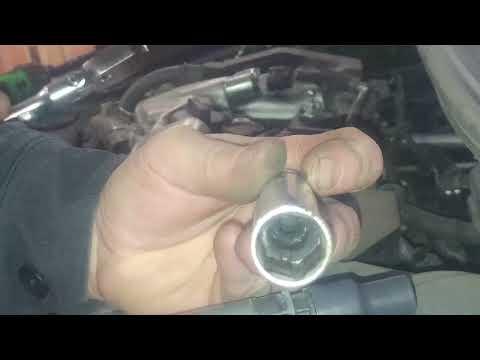

• A spark plug socket is a deep socket with a rubber insert that grips the plug so it lifts out easily.
• Use a 14mm spark plug socket (rubber insert) with a 3/8" extension (10") and 3/8" ratchet to loosen and remove the spark plug.
• Lift the plug out with the socket.

Step 6: Install the new spark plugs

• Compare the new plug to the old one to confirm matching length and seat type.
• Start the new plug by hand using the 14mm spark plug socket (rubber insert) and 3/8" extension (10") only (no ratchet at first) to avoid cross-threading.
• Once it’s fully threaded by hand, use the torque wrench (3/8", 5–80 Nm range) to tighten: Torque to 18 Nm (13 ft-lbs).
• Tip: Don’t use anti-seize on these plugs.

Step 7: Reinstall the ignition coils

• Put a tiny smear of dielectric grease inside the rubber coil boot (this helps prevent moisture sticking; use very little).
• Push the coil straight down until it seats.
• Install the hold-down bolt using a 10mm socket and 3/8" ratchet, then tighten with a torque wrench (3/8", 5–80 Nm range): Torque to 10 Nm (89 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 8: Reinstall the engine cover and reconnect the battery (if disconnected)

• Reinstall the engine cover using a 10mm socket if applicable.
• If disconnected, reconnect the negative battery terminal using a 10mm socket and tighten snugly.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds. It should run smooth.
• If the check engine light is on or it runs rough, recheck that every coil connector is fully clicked in.
• Take a short test drive and confirm no hesitation under light acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$120 (parts only)

You Save: $200-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
