🔧 Wrangler - Spark Plug Replacement

On your Wrangler’s 3.6L V6, replacing the spark plugs restores strong ignition, smooth idle, and good fuel economy. This job includes removing a few components for access, then installing new plugs to the correct tightness.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and to prevent damaging aluminum threads in the cylinder heads.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts while working around wiring.
• ⚠️ Keep dirt out of the engine: do not let debris fall into spark plug holes or the intake manifold.
• ⚠️ Do not overtighten spark plugs—aluminum threads can strip.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3/8" torque wrench (10-30 ft-lbs range)
• 5/8" spark plug socket
• 3/8" extension set (3", 6", 10")
• Universal joint swivel adapter (3/8")
• Flat-blade screwdriver
• Needle-nose pliers
• Trim clip remover
• Compressed air blow gun
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OE-spec) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your Wrangler on level ground, shift to neutral, and set the parking brake.
• Let the engine cool completely (at least 1-2 hours after driving).
• Open the hood and disconnect the negative battery cable using a 10mm socket.
• Lay out parts in order (front-to-back) so nothing gets mixed up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

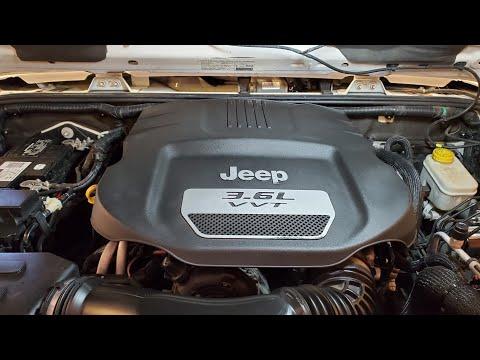

Step 1: Remove the engine cover and air inlet parts

• Remove the engine cover by pulling it upward firmly (it’s held by grommets). Use gloves for grip.
• Loosen intake tube clamps using a flat-blade screwdriver.
• Unclip/remove any intake ducting as needed to create working room.

Step 2: Label and unplug ignition coil connectors

• Each cylinder has an ignition coil on top of the spark plug.
• Press the electrical connector tab and unplug each coil using your fingers or needle-nose pliers gently if tight.
• Take a quick photo before unplugging everything.

Step 3: Remove ignition coils

• Remove the coil retaining bolt using an 8mm socket and 1/4" ratchet.
• Twist the coil slightly and pull it straight up to remove it.
• Keep coils in order (so each goes back to the same cylinder if reusing).
• Reinstall torque later: Torque to 8 Nm (71 in-lbs)

Step 4: Remove the upper intake manifold (needed for access)

• Disconnect any vacuum/PCV hoses from the intake using needle-nose pliers (squeeze clamps and slide them back).
• Unplug any sensors attached to the intake by pressing the release tab by hand.
• Remove the intake manifold fasteners using an 10mm socket with a 3/8" ratchet and extensions.
• Lift the intake manifold up and off carefully. Use shop towels to cover the intake ports immediately so nothing falls in.
• When reinstalling later: Torque to 12 Nm (106 in-lbs)

Step 5: Clean around each spark plug well

• Blow out dirt from each spark plug well using a compressed air blow gun.
• Wipe any remaining grit with shop towels.
• This prevents debris from falling into the cylinder.

Step 6: Remove old spark plugs

• Use a 5/8" spark plug socket with a 3/8" ratchet, extensions, and a universal joint swivel adapter (3/8") as needed.
• Turn counterclockwise to loosen, then remove the plug.
• If a plug feels stuck, stop and work it gently back and forth—don’t force it.

Step 7: Install new spark plugs (hand-start first)

• Confirm plugs are OE-spec and pre-gapped (typical spec is about 0.043 in (1.1 mm)); don’t bend the tip on fine-wire plugs.
• Start each plug by hand using the 5/8" spark plug socket and an extension only (no ratchet at first) to avoid cross-threading.
• Tighten with a 3/8" torque wrench (10-30 ft-lbs range). A torque wrench measures how tight you’re tightening.
• Torque to 17.5 Nm (13 ft-lbs)

Step 8: Reinstall ignition coils

• Apply a tiny amount of dielectric grease inside each coil boot (the rubber sleeve that seals to the plug).
• Push each coil straight down until it seats.
• Install coil bolts using an 8mm socket and tighten with a 3/8" torque wrench.
• Torque to 8 Nm (71 in-lbs)
• Reconnect each coil electrical connector until it clicks.

Step 9: Reinstall the upper intake manifold and air inlet parts

• Remove the shop towels covering the intake ports.
• Install new intake gaskets if removed/damaged, then set the intake manifold in place.
• Hand-start all intake fasteners, then tighten evenly using a 10mm socket.
• Final tighten using a 3/8" torque wrench: Torque to 12 Nm (106 in-lbs)
• Reconnect all hoses and electrical connectors.
• Reinstall intake ducting and tighten clamps with a flat-blade screwdriver.
• Reinstall the engine cover by pressing it down into the grommets.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start your Wrangler and let it idle for 1-2 minutes. It should run smooth with no flashing check-engine light.
• Listen for hissing/whistling (could indicate an intake air leak from a hose or gasket not seated).
• Test drive 5-10 minutes and recheck for warning lights.
• If you get a misfire code after the job, recheck coil connectors and that each coil is fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $210-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
