🔧 Escape - Spark Plug Replacement

You’ll be removing the ignition coils on top of your engine, then swapping the spark plugs underneath them. Fresh plugs help restore smooth idle, fuel economy, and strong acceleration—especially on the turbo engine.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ No smoking/open flames; you’ll be working around fuel vapors in the engine bay.
• ⚠️ Battery disconnect is not required, but if you’re nervous around electrical connectors, disconnect the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8" drive ratchet
• 3/8" drive torque wrench (10–30 ft-lbs range)
• 5/8" spark plug socket
• 3/8" drive extension (6")
• 3/8" drive extension (10")
• 7mm socket
• 8mm socket
• Small flathead screwdriver
• Compressed air blow gun
• Feeler gauge set (0.020"–0.040")
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, OEM-equivalent for Escape 2.0L turbo) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground and let the engine cool completely.
• 🧰 If disconnecting the battery, use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• 🧰 Lay out the new plugs in order; you’ll install one cylinder at a time to avoid mixing parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use your hands to pull the engine cover straight up off its rubber grommets.
• Pull evenly from both sides.

Step 2: Unplug the ignition coils

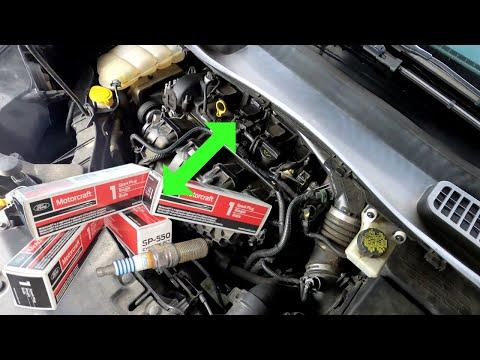

• Locate the 4 ignition coils on top of the valve cover.
• Use a small flathead screwdriver only if needed to gently help release the connector lock (don’t pry hard).
• Press the tab and pull each electrical connector straight off.
• Never pull on the wires.

Step 3: Remove the ignition coils

• Use a 7mm socket or 8mm socket (whichever fits your coil hold-down bolts) to remove the bolt from each coil.
• Twist the coil slightly, then pull straight up to remove it.
• Set coils aside in order so they go back to the same cylinder.
• Reinstall torque when done: Torque to 7 Nm (62 in-lbs).
• “Ignition coil” = the part that makes spark.

Step 4: Clean the spark plug wells

• Use a compressed air blow gun to blow out each plug well before removing the plug.
• Wipe any loose dirt with clean shop towels.

Step 5: Remove the old spark plugs

• Install the 5/8" spark plug socket onto a 3/8" drive extension (10") and 3/8" drive ratchet.
• Turn counterclockwise to break the plug loose, then spin it out.
• Lift the plug out with the socket.
• If a plug feels extremely tight, stop and work it out gently to avoid thread damage.

Step 6: Check and prepare the new spark plugs

• Use a feeler gauge set to confirm the plug gap is correct for your Escape (common spec is 0.028"–0.031").
• Do not force-bend the tiny center electrode on iridium plugs.
• Apply a very small amount of dielectric grease inside each coil boot (the rubber sleeve that seals on the plug).
• Dielectric grease helps prevent boot sticking.

Step 7: Install the new spark plugs

• Place a new plug into the 5/8" spark plug socket.
• Thread it in by hand using the 3/8" drive extension (10") only (no ratchet at first) to prevent cross-threading.
• Once finger-tight, use a 3/8" drive torque wrench to tighten: Torque to 15 Nm (11 ft-lbs).
• Repeat for all 4 cylinders, one at a time.

Step 8: Reinstall coils and connectors

• Push each coil straight down onto its plug until fully seated.
• Install the coil bolt using a 7mm socket or 8mm socket, then tighten with a 3/8" drive torque wrench: Torque to 7 Nm (62 in-lbs).
• Reconnect each electrical connector until it clicks.

Step 9: Reinstall the engine cover

• Align the cover with the grommets and press down firmly by hand until seated.

---

✅ After Repair

• ✅ Start your Escape and let it idle for 30–60 seconds; it should run smooth.
• ✅ Take a short test drive and verify no misfire, hesitation, or flashing check-engine light.
• ✅ If the check-engine light stays on, a scan tool code read is the next step (misfire codes usually start with P0300–P0304).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
