🔧 Rio - Spark Plug Replacement

On your Rio, the spark plugs sit under the ignition coils on top of the engine. Replacing them restores smooth starting, idle, fuel economy, and helps prevent misfires.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

Assumption: 1.6L coil-on-plug layout (4 individual coils).

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns and stripped threads.
• ⚠️ Do not over-tighten spark plugs; the cylinder head is aluminum.
• ⚠️ Keep dirt out of the plug holes; blow out debris before removing plugs.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal reduces accidental short risk.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 5/8" (16mm) spark plug socket
• Torque wrench (3/8" drive, 10-30 Nm range)
• Small flat trim tool
• Compressed air blower or canned air
• Feeler gauge set (metric/inch)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium/platinum, correct heat range) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Let the engine cool fully (ideally 1+ hour after driving).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside.
• Lay out parts in order and keep the work area clean so nothing drops into the plug wells.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

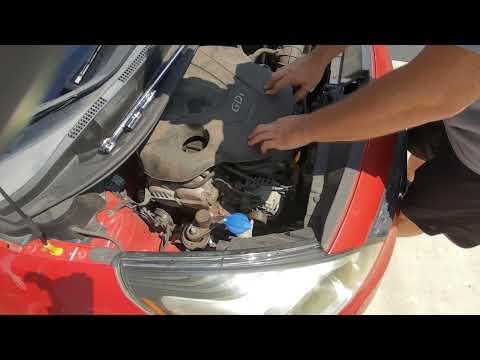

Step 1: Remove the engine cover (if equipped)

• If there’s a plastic cover, pull up carefully by hand; if it uses fasteners, remove them with a 10mm socket.

Step 2: Unplug and remove the ignition coils

• Unclip each coil’s electrical connector using a small flat trim tool (press the lock tab, then pull straight back).
• Remove each coil hold-down bolt with a 10mm socket.
• Twist the coil slightly and pull it straight up to remove it.
• Coil-on-plug means one coil per cylinder.
• When reinstalling the coil bolts: Torque to 9-11 Nm (80-97 in-lbs).

Step 3: Clean the spark plug wells

• Blow compressed air into each plug well using a compressed air blower or canned air.
• This prevents dirt from falling into the cylinder when the plug comes out.

Step 4: Remove the old spark plugs

• Install a 5/8" (16mm) spark plug socket on a 3/8" drive extension and 3/8" drive ratchet.
• Turn counterclockwise to loosen, then spin out by hand using the ratchet/extension.
• Lift the plug out carefully with the spark plug socket.

Step 5: Check and prepare the new spark plugs

• Use a feeler gauge set to verify the gap matches spec for your Rio’s 1.6L plugs (many OEM-style iridium plugs are pre-gapped).
• Do not use anti-seize unless the plug maker specifically requires it; most modern plugs are nickel-plated and are installed dry.

Step 6: Install the new spark plugs

• Thread each new plug in by hand first using the spark plug socket and extension (no ratchet at first) to avoid cross-threading.
• Once seated, tighten with a torque wrench: Torque to 18-22 Nm (13-16 ft-lbs).
• If it doesn’t thread easily, stop immediately.

Step 7: Reinstall ignition coils and connectors

• Apply a very small amount of dielectric grease inside each coil boot (the rubber inside the coil that touches the plug). It helps prevent sticking and moisture.
• Push each coil straight down until fully seated on the plug.
• Install coil bolts with a 10mm socket, then use a torque wrench: Torque to 9-11 Nm (80-97 in-lbs).
• Reconnect each electrical connector until it clicks.

Step 8: Reinstall the engine cover and reconnect battery (if disconnected)

• Reinstall the engine cover by pressing it into place or tightening fasteners with a 10mm socket.
• If disconnected, reinstall the negative battery cable using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds; it should run smooth with no shaking.
• Listen for ticking or puffing sounds near the plug area (can indicate a loose plug).
• Take a short test drive and confirm normal acceleration and no check engine light.
• If a check engine light appears, re-check that every coil connector is fully clicked in.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $30-$90 (parts only)

You Save: $150-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
