🔧 Impala - Spark Plug Replacement

On your Impala’s 3.6L V6, the front three spark plugs are easy to access, but the rear three sit under the intake manifold (the big plastic “air chamber” on top of the engine). You’ll remove the intake manifold, swap all 6 plugs, then reassemble and verify it runs smoothly with no misfires.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• 🧯 Let the engine cool fully; hot aluminum threads strip easily.
• 🧤 Disconnect the negative battery cable to prevent accidental throttle movement and electrical shorts.
• 🧼 Keep dirt out of the intake ports; even small debris can damage the engine.
• ⛽ Avoid open flames; you’ll be working around fuel vapor lines.
• 🧠 Do not use anti-seize on these plugs unless the plug maker specifically says to; most modern plugs are nickel-plated and anti-seize can cause over-tightening.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• 1/4" drive ratchet
• 3/8" drive ratchet
• 10mm socket (1/4" drive)
• 10mm socket (3/8" drive)
• 8mm socket (1/4" drive)
• 13mm socket (3/8" drive)
• 3/8" extension set (3", 6", 10")
• 3/8" universal joint swivel
• 5/8" spark plug socket (3/8" drive, rubber insert)
• Torque wrench (inch-pound)
• Torque wrench (ft-lb)
• Trim clip removal tool
• Flat-blade screwdriver
• Pliers
• Shop vacuum
• Clean shop towels
• Dielectric grease

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, correct for 3.6L) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose items around the engine bay.
• Use a 10mm wrench to disconnect the negative battery cable and isolate it so it can’t spring back.
• Use a shop vacuum to clean dust/leaves around the intake manifold and coil areas.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Pull up firmly on the engine cover to pop it off its rubber grommets (no bolts on most setups).
• Set it aside where it won’t get stepped on.

Step 2: Remove the intake air duct

• Use an 8mm socket (1/4" drive) to loosen the hose clamps at the air box and throttle body.
• Disconnect any small breather/PCV hoses using pliers (squeeze clamp, slide it back).
• Lift out the duct and set it aside.

Step 3: Label and disconnect connectors and vacuum lines on the intake manifold

• Use shop towels and simple tape labels so each connector goes back to the same place. Labels prevent “mystery plugs” later.
• Disconnect the throttle body connector and any MAP/EVAP connectors by hand (press the lock tab first).
• Use a flat-blade screwdriver only if needed to gently lift a stubborn lock tab.

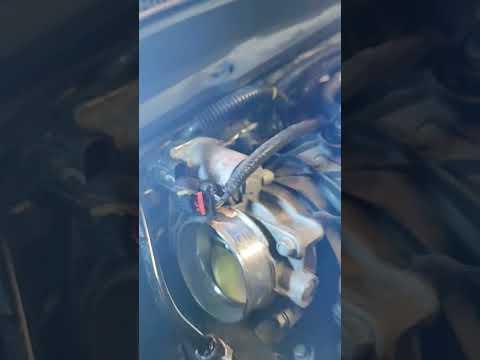

Step 4: Remove the throttle body (to access intake bolts easier)

• Use a 10mm socket (1/4" drive) to remove the throttle body bolts.
• Remove the throttle body and the old gasket.
• Cover the opening with a clean shop towel so nothing falls inside.

Step 5: Remove the upper intake manifold

• Double-check that all hoses/connectors are unplugged.
• Use a 10mm socket (3/8" drive) with extensions to remove the intake manifold bolts.
• Lift the intake manifold straight up and off.
• Immediately place clean shop towels into the intake ports to keep debris out.
• Remove the old intake manifold gaskets.

Step 6: Remove ignition coils (front bank and rear bank)

• Each coil sits on top of a spark plug.
• Unplug each coil electrical connector (press tab, pull straight off).
• Use a 10mm socket (1/4" drive) to remove the coil bolt.
• Twist the coil boot gently, then pull the coil straight up.
• Coil boot = the rubber “sock” on the coil.

Step 7: Remove the old spark plugs

• Use a shop vacuum to clean around each spark plug well before removing the plug.
• Use a 5/8" spark plug socket with a 3/8" ratchet, extensions, and a universal joint swivel as needed to loosen and remove each plug.
• If a plug feels extremely tight, stop and work it back and forth slowly to avoid thread damage.

Step 8: Install the new spark plugs

• Verify the new plugs match the old ones in length and seat style.
• Do not adjust the gap on iridium plugs unless the plug instructions specifically allow it.
• Thread each plug in by hand first using the spark plug socket and an extension (no ratchet yet). This helps prevent cross-threading.
• Tighten using a torque wrench (ft-lb): Torque to 20 Nm (15 ft-lbs).

Step 9: Reinstall ignition coils

• Put a small dab of dielectric grease inside each coil boot (helps prevent moisture and makes future removal easier).
• Push each coil straight down until fully seated.
• Install coil bolts using a 10mm socket: Torque to 10 Nm (89 in-lbs).
• Reconnect all coil electrical connectors.

Step 10: Reinstall the intake manifold with new gaskets

• Remove the shop towels from the intake ports.
• Install the new upper intake manifold gaskets into the manifold grooves.
• Set the intake manifold in place carefully.
• Install bolts finger-tight, then tighten evenly in a crisscross pattern using a torque wrench: Torque to 10 Nm (89 in-lbs).

Step 11: Reinstall the throttle body and intake duct

• Install the new throttle body gasket.
• Install throttle body bolts using a 10mm socket: Torque to 10 Nm (89 in-lbs).
• Reconnect the throttle body electrical connector.
• Reinstall the intake air duct and tighten clamps using an 8mm socket.
• Reconnect any breather/PCV hoses using pliers.

Step 12: Reconnect the battery and reinstall the engine cover

• Reconnect the negative battery cable using a 10mm wrench.
• Press the engine cover back onto its mounting grommets.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. A slightly rough idle for the first few seconds can be normal while the throttle re-learns.
• Listen for hissing (vacuum leak) around the intake manifold and throttle body area.
• If the check engine light comes on or it runs rough, re-check that every coil connector is fully clicked in and every intake/vacuum hose is connected.
• If you have a scan tool, clear any stored misfire codes and confirm none return.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $280-$730 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
