🔧 Camry - Spark Plug Replacement

You’ll remove the ignition coils, take out the old spark plugs, and install new plugs with the correct torque. On your Camry, the plugs sit on top of the engine, so access is straightforward, but careful handling matters to avoid thread damage in the aluminum cylinder head.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting to avoid burns and thread damage.
• ⚠️ Hybrid safety: Make sure the car is OFF (not in READY) and keep the key fob at least 10 feet away.
• ⚠️ Do not drop anything into the spark plug holes; debris can damage the engine.
• ⚠️ Battery disconnect is not required for this job, but never work with the car in READY mode.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 14mm thin-wall spark plug socket (rubber insert)
• Torque wrench (3/8" drive, 5–30 ft-lb range)
• Small flathead screwdriver
• Compressed air blow gun
• Flashlight
• Dielectric grease

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM-type for Camry Hybrid) - Qty: 4

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Confirm the vehicle is OFF (no dash “READY” light) and keep the key fob away from the car.
• Open the hood and let the engine cool completely.
• Set your new spark plugs nearby and keep them clean; don’t touch the electrode tip.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use a 10mm socket and 3/8" drive ratchet (if equipped with nuts/bolts) to remove the fasteners, then lift the cover off.
• Some covers pull straight up.

Step 2: Unplug the ignition coil connectors

• Locate the 4 ignition coils on top of the engine (one per cylinder).

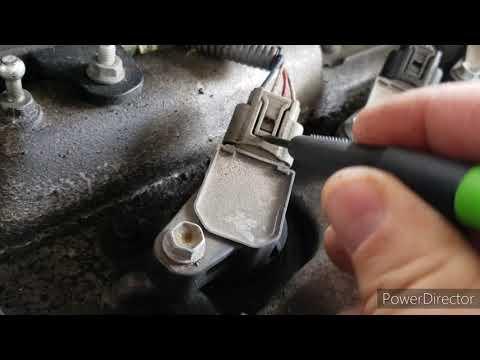

• Use a small flathead screwdriver only if needed to gently lift the connector lock tab, then pull the connector straight off by hand.
• Pull on the connector, not the wires.

Step 3: Remove the ignition coils

• Use a 10mm socket with a 3/8" drive ratchet to remove the coil hold-down bolt from each coil.
• Twist the coil slightly, then pull it straight up and out.
• Set coils aside in order so they go back into the same cylinder.
• When reinstalling later: Torque to 9 Nm (80 in-lbs).

Step 4: Clean around the spark plug wells

• Use a compressed air blow gun to blow out dirt around each spark plug hole.
• This prevents grit from falling into the engine when the plug comes out.

Step 5: Remove the old spark plugs

• Insert the 14mm thin-wall spark plug socket (rubber insert) with a 3/8" drive extension set (3" and 6") and 3/8" drive ratchet.
• Turn counterclockwise to loosen, then remove the plug carefully.
• If a plug feels stuck, stop and work it gently—don’t force it in an aluminum head.

Step 6: Install the new spark plugs (by hand first)

• Check each new plug is the correct type; iridium plugs are typically pre-gapped—do not bend the tip.
• Place the new plug into the 14mm thin-wall spark plug socket (rubber insert) and lower it into the hole using a 3/8" drive extension set (3" and 6").
• Thread it in by hand using the extension only (no ratchet at first) until fully seated to avoid cross-threading.
• Use a torque wrench (3/8" drive, 5–30 ft-lb range) to tighten each plug: Torque to 18 Nm (13 ft-lbs).
• No anti-seize needed on new plated plugs.

Step 7: Reinstall the ignition coils

• Put a tiny smear of dielectric grease inside each coil boot (this helps moisture protection; it is not a conductor).
• Push each coil straight down until it fully seats on the spark plug.
• Install the coil bolt using a 10mm socket and snug it.
• Use a torque wrench (3/8" drive, 5–30 ft-lb range): Torque to 9 Nm (80 in-lbs).

Step 8: Reconnect coil connectors and reinstall the engine cover

• Push each connector on until it clicks in place.
• Reinstall the engine cover and tighten any fasteners using a 10mm socket and 3/8" drive ratchet.

---

✅ After Repair

• Start the car normally and confirm it runs smoothly (no shaking/misfire).
• If you see a check engine light, re-check that all 4 coil connectors are fully clicked in.
• Take a short test drive and re-check for any new warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$120 (parts only)

You Save: $130-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
