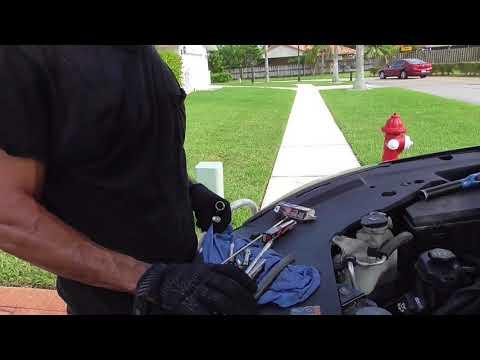

🔧 Acadia - Spark Plug Replacement

On your Acadia’s 3.6L V6, spark plugs wear over time and can cause misfires, rough idle, poor MPG, and a flashing check-engine light. The front-bank plugs are easy, but the rear-bank plugs require removing the upper intake manifold to reach them.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine to avoid burns and thread damage in the cylinder heads.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Keep dirt out of the intake ports—stuff them with clean shop towels once the intake is off.
• ⚠️ Do not over-tighten spark plugs; over-torque can strip aluminum threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• Ratchet (3/8")
• Extension set (3/8")
• Swivel/universal joint (3/8")
• Torque wrench (3/8", inch-lb and ft-lb capable)
• 5/8" spark plug socket
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Compressed air blow gun
• Feeler gauge (0.043" / 1.1 mm)
• Shop towels
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, correct for 3.6L V6) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔋 Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• 🧼 Use compressed air to blow debris off the engine top before removing anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: This covers the common 3.6L transverse V6 layout where the rear spark plugs require upper intake manifold removal.

Step 1: Remove the engine cover and air inlet duct

• Pull up on the engine cover to release the rubber grommets (it’s a press-fit cover).
• Use an 8mm socket and ratchet to loosen the hose clamps on the air intake duct.
• Disconnect any small breather/PCV hoses using needle-nose pliers (squeeze the clamp, then slide it back).
• Lift the intake duct out and set it aside.

Step 2: Replace the front-bank spark plugs (easy side)

• Blow around each ignition coil with a compressed air blow gun to keep dirt out.
• Unplug one ignition coil electrical connector (press the tab, then pull off).
• Use a 10mm socket to remove the coil bolt.
• Twist and pull the coil straight up to remove it. Coil = the spark plug “top.”
• Use a 5/8" spark plug socket with a 3/8" extension and ratchet to remove the spark plug.
• Check the new plug gap using a feeler gauge: Gap to 0.043 in (1.1 mm) unless your plug is labeled “do not gap.”
• Thread the new spark plug in by hand using the spark plug socket and extension only (no ratchet at first).
• Tighten with a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Add a small dab of dielectric grease inside the coil boot (dielectric grease helps prevent moisture and eases removal).
• Reinstall the coil and bolt: Torque to 10 Nm (89 in-lbs).
• Reconnect the coil connector.
• Repeat for the other front-bank cylinders, one at a time.

Step 3: Remove the upper intake manifold to access the rear-bank plugs

• Disconnect the intake resonator/airbox connections still attached to the throttle body area (use a flathead screwdriver or 8mm socket for clamps, as equipped).
• Unplug the throttle body electrical connector (press tab, pull off).
• Disconnect vacuum/PCV hoses connected to the intake manifold using needle-nose pliers.
• Use a 10mm socket and ratchet to remove the upper intake manifold bolts.
• Carefully lift the upper intake manifold straight up and out.
• Immediately place clean shop towels into the exposed intake ports. Do not drop anything inside.

Step 4: Replace the rear-bank spark plugs (hard side)

• Blow around each rear ignition coil with compressed air.
• Unplug each coil connector, then use a 10mm socket to remove each coil bolt.
• Remove each coil by twisting and pulling upward.
• Use a 5/8" spark plug socket, swivel/universal joint, and extensions to remove each rear spark plug.
• Set the new plug gap to 0.043 in (1.1 mm) unless labeled otherwise.
• Hand-thread each spark plug fully, then torque: Torque to 15 Nm (11 ft-lbs).
• Apply a small amount of dielectric grease inside each coil boot.
• Reinstall coils and bolts: Torque to 10 Nm (89 in-lbs).
• Reconnect coil connectors.

Step 5: Reinstall the upper intake manifold with new gaskets

• Remove the shop towels from the intake ports.
• Remove the old upper intake manifold gaskets and install the new gasket set (make sure each gasket is fully seated).
• Set the upper intake manifold back in place without pinching any wires/hoses.
• Start all intake manifold bolts by hand.
• Tighten intake manifold bolts evenly in a crisscross pattern using a torque wrench: Torque to 10 Nm (89 in-lbs).
• If the throttle body was removed, install a new throttle body gasket and tighten bolts evenly: Torque to 10 Nm (89 in-lbs).
• Reconnect all vacuum/PCV hoses and electrical connectors (especially the throttle body connector).

Step 6: Reinstall the air intake duct and reconnect the battery

• Reinstall the air intake duct and tighten clamps using an 8mm socket: snug, not stripped.
• Reinstall the engine cover (press down into the grommets).
• Reconnect the negative battery cable using a 10mm socket: snug and secure.

---

✅ After Repair

• 🔍 Start the engine and let it idle for 1–2 minutes; it should run smooth.
• 🔎 Check for a hissing sound (vacuum leak) around the intake; recheck any loose hoses/clamps.
• 🧪 Road-test for 10–15 minutes and confirm no check-engine light or misfire.
• 🧰 If a check-engine light stays on, scan for codes—misfire codes often point to a loose coil connector.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$520 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
