🔧 Equinox - Spark Plug Replacement

On your Equinox, the spark plugs sit under the ignition coil pack on top of the engine. Replacing them restores smooth starting, idle quality, and fuel economy, especially if you have a misfire or rough running.

Difficulty Level: Beginner | Estimated Time: 0.75-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and stripped threads.
• ⚠️ Keep dirt out of the spark plug holes—debris can damage the engine.
• ⚠️ Do not over-tighten spark plugs; aluminum threads strip easily.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal is safer if you might bump electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 5/8" spark plug socket
• Torque wrench (3/8" drive, 10-40 ft-lbs range)
• Flat trim tool
• Compressed air blow gun
• Feeler gauge set
• Small pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium/platinum, correct for 2.4L) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1 hour if it was hot).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take a quick photo of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the cover straight up by hand, or use a flat trim tool to gently pry at the corners if it’s tight.

Step 2: Unplug the ignition coil pack connector

• Locate the ignition coil pack on top of the engine (it runs across all 4 plugs).
• Use a small pick tool to lift the connector lock (if present), then pull the connector off by hand.

Step 3: Remove the ignition coil pack bolts

• Use a 10mm socket with a 3/8" drive ratchet and extension to remove the coil pack mounting bolts.
• Set the bolts aside where they won’t get lost.

Step 4: Lift off the ignition coil pack

• Lift the coil pack straight up and off the spark plugs by hand.
• If it feels stuck, gently wiggle it—don’t force or pry hard.
• Keep the boots clean; don’t drop dirt into the holes.

Step 5: Clean around the spark plug wells

• Use compressed air blow gun to blow out dust/debris around each spark plug hole.
• This prevents grit from falling into the cylinder when the plug comes out.

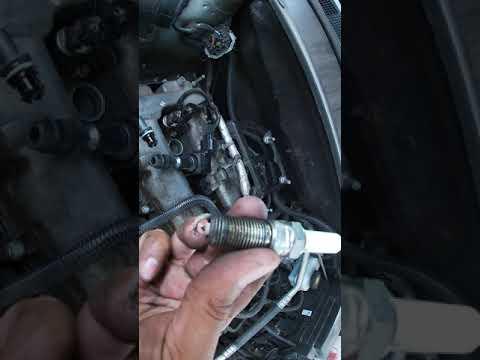

Step 6: Remove the old spark plugs

• Use a 5/8" spark plug socket with a 3/8" drive extension and ratchet to loosen and remove each plug.
• Turn counterclockwise. If one feels extremely tight, stop and re-check that the engine is fully cool.

Step 7: Check the gap on the new spark plugs

• Use a feeler gauge set to verify the gap matches the spec on the under-hood emissions label or the plug box listing for your engine.
• Don’t pry on iridium tips; they’re fragile.

Step 8: Install the new spark plugs (start by hand)

• Place a new plug into the 5/8" spark plug socket.
• Lower it into the hole using a 3/8" drive extension and thread it in by hand (no ratchet at first) to avoid cross-threading.
• Once finger-tight, use a torque wrench to tighten: Torque to 25 Nm (18 ft-lbs).
• Do not use anti-seize unless plug maker requires it.

Step 9: Add a tiny amount of dielectric grease to the boots

• Apply a small pea-sized dab of dielectric grease inside each coil boot.
• Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.

Step 10: Reinstall the ignition coil pack

• Set the coil pack straight down onto the plugs.
• Install the mounting bolts by hand first, then snug with a 10mm socket and ratchet.
• If you have a torque wrench that can measure low torque, tighten to: Torque to 10 Nm (89 in-lbs).

Step 11: Reconnect the electrical connector and reinstall the cover

• Push the coil pack connector on until it clicks; re-engage the lock if equipped.
• Reinstall the engine cover by pressing it back into place by hand.
• If you disconnected the battery, reconnect it using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no misfire shaking.
• If the check engine light was on for a misfire, it may take a few drive cycles to turn off, or you can clear codes with a scan tool.
• Take a short test drive and re-check for any roughness or warning lights.
• If it runs worse, re-check the coil connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$400 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $165-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
