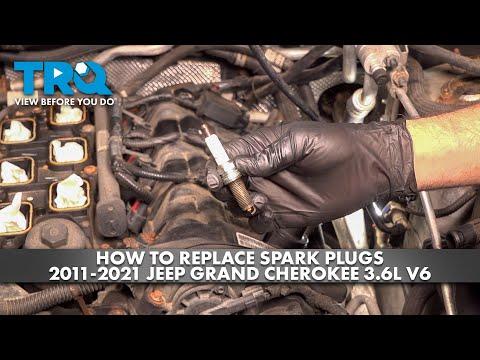

🔧 Grand Cherokee - Spark Plug Replacement

On your Grand Cherokee’s 3.6L V6, spark plugs fire the air/fuel mixture. Worn plugs can cause rough idle, misfires, poor fuel economy, and hard starts. This job is mostly remove-and-replace: engine cover off, ignition coils out, then swap all 6 plugs.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and to prevent damaging aluminum threads.
• ⚠️ Keep dirt out of the spark plug holes; debris can fall into the cylinder.
• ⚠️ Do not pull on wiring—release electrical connector locks first.
• ⚠️ Avoid anti-seize on modern plated spark plugs unless the plug maker specifically calls for it.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal can prevent accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-30 ft-lbs range)
• 3/8" drive extension set (3", 6", 10")
• 3/8" drive wobble extension (specialty)
• 3/8" drive universal joint (specialty)
• 5/8" spark plug socket
• Small flathead screwdriver
• Trim clip removal tool
• Compressed air blow gun (specialty)
• Shop vacuum
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (3.6L V6 correct type) - Qty: 6
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1-2 hours after driving).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and keep it from touching the post.
• Label parts as you go. Keep bolts from each coil with that coil.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grab the cover with both hands and pull upward firmly to pop it off the mounting grommets.
• Use a flashlight to identify the three ignition coils on each side.

Step 2: Create working room (air intake tube/resonator if needed)

• If access is tight, loosen intake clamps using an 8mm socket and move the intake tube/resonator out of the way.
• Use a trim clip removal tool for any plastic retainers that are holding the ducting in place.

Step 3: Unplug an ignition coil connector

• Use a small flathead screwdriver to gently release the connector lock (don’t pry hard).
• Pull the connector straight off the coil.

Step 4: Remove the ignition coil

• Remove the coil hold-down bolt using a 10mm socket.
• Twist the coil slightly, then pull straight up to remove it from the spark plug tube.
• Wiggle, don’t yank the wiring.

Step 5: Clean the spark plug well

• Use a shop vacuum around the spark plug tube opening.
• Blow out remaining debris using a compressed air blow gun (specialty).
• A wobble extension is an extension that flexes slightly to reach bolts at an angle.

Step 6: Remove the spark plug

• Install a 5/8" spark plug socket onto a 3/8" drive extension and 3/8" drive ratchet.
• For tight rear cylinders, use a 3/8" drive wobble extension (specialty) or 3/8" drive universal joint (specialty) to get the angle.
• Turn counterclockwise to remove the plug. Lift it out carefully with the socket.

Step 7: Install the new spark plug (start by hand)

• Check the new plug matches the old one in size and reach.
• Do not “re-gap” fine-wire plugs unless the plug instructions specifically allow it.
• Place the new plug into the 5/8" spark plug socket and lower it into the hole.
• Thread it by hand first using only the extension (no ratchet at first) to avoid cross-threading.
• Tighten with a 3/8" drive torque wrench (10-30 ft-lbs range): Torque to 17 Nm (13 ft-lbs).

Step 8: Reinstall the ignition coil

• Apply a very small dab of dielectric grease inside the coil boot (helps prevent moisture; do not smear on plug threads).
• Push the coil straight down until fully seated.
• Install the coil bolt using a 10mm socket, then torque with a torque wrench: Torque to 8 Nm (71 in-lbs).
• Reconnect the electrical connector until it clicks/locks.

Step 9: Repeat for the remaining 5 cylinders

• Work one coil/plug at a time so nothing gets mixed up.
• Use the flashlight to confirm every connector is fully seated.

Step 10: Reassemble and reinstall the engine cover

• Reinstall any intake tube/resonator removed earlier using an 8mm socket on the clamps.
• Press the engine cover back onto its grommets until it snaps in place.
• If disconnected, reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds. It should be smooth with no shaking.
• Listen for a ticking/air hiss near the intake tube area (could indicate a loose clamp).
• If the check engine light is on or it runs rough, recheck coil connectors and coil seating.
• Road test for 10 minutes, then recheck that everything is secure.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $150-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
