🔧 X5 - Spark Plug Replacement

Replacing spark plugs restores strong ignition, smooth idle, and proper power. On your X5’s turbo inline-6, worn plugs can cause misfires, rough running, and poor fuel economy.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: stock coil-on-plug setup with cowl/microfilter access panel.

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and thread damage in the aluminum cylinder head.
• ⚠️ Keep the key/fob away from the vehicle so the ignition can’t be turned on while coils are unplugged.
• ⚠️ Do not pull on wiring—only pull on connectors (the plastic plugs).
• ⚠️ If you disconnect the battery, you may lose some settings; use proper battery-safe procedures.
• ⚠️ Do not use anti-seize on BMW-style plated spark plug threads unless the plug maker explicitly requires it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• Ratchet (3/8")
• Torque wrench (3/8", 10-60 Nm range)
• Torx T20 screwdriver
• Torx T25 screwdriver
• External Torx E10 socket
• 14mm thin-wall 12-point spark plug socket (BMW style)
• 6" extension (3/8")
• Universal joint (3/8")
• Trim clip remover
• Small flat screwdriver
• Compressed air or shop air blower
• Magnetic pickup tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (correct heat range for X5 turbo inline-6) - Qty: 6
• Dielectric grease - Qty: 1
• Engine cover grommets - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Let the engine cool completely (at least 1 hour after driving).
• Optional but safer: disconnect the negative battery terminal using a 10mm socket.
• Set your tools out in order so nothing falls into the engine bay.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the upper cowl/microfilter area (access panel)

• Use a trim clip remover to release any plastic clips holding the cowl seal/trim.
• Use a 10mm socket and Torx T20 screwdriver to remove the fasteners for the microfilter housings (the plastic trays at the back of the engine bay).
• Lift out the housings to open up working space above the engine.

Step 2: Remove the engine cover

• Grip the engine cover at the corners and pull straight upward to pop it off the rubber grommets.
• If it’s stubborn, use a small flat screwdriver gently at a corner to start it.

Step 3: Unplug and remove the ignition coils

• Each cylinder has an ignition coil (the “coil pack,” which makes high voltage for the spark plug).
• Use a small flat screwdriver to help lift the connector locking tab (if equipped), then unplug the coil connector.
• Remove any coil hold-down fasteners (if equipped) using an 8mm socket or E10 socket.
• Pull the coil straight upward to remove it. Wiggle gently—don’t yank wires.

Step 4: Clean around the spark plug wells

• Blow out debris around each plug hole using compressed air or shop air blower.
• This prevents dirt from falling into the cylinder when the plug comes out.

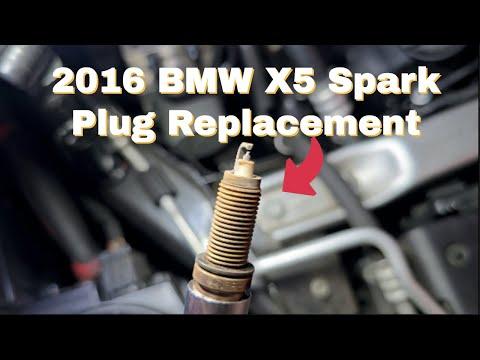

Step 5: Remove the old spark plugs

• Install a 14mm thin-wall 12-point spark plug socket with a 6" extension on your ratchet (3/8").
• Lower the socket straight onto the plug, then loosen and remove it.
• If access is tight, add a universal joint (3/8") to keep the socket straight.
• Lift the plug out; use a magnetic pickup tool only if needed (avoid hitting the electrode).

Step 6: Install the new spark plugs (by hand first)

• Start each new plug by hand using the spark plug socket and extension only (no ratchet at first) to avoid cross-threading.
• Once finger-tight, switch to a torque wrench (3/8", 10-60 Nm range) and tighten each plug: Torque to 23 Nm (17 ft-lbs).
• Do not over-tighten—aluminum threads can strip.

Step 7: Reinstall the ignition coils

• Add a tiny smear of dielectric grease inside each coil boot (the rubber tip) if you have it.
• Push each coil straight down until fully seated on the plug.
• Reinstall coil fasteners (if equipped) using an 8mm socket or E10 socket: Torque to 5 Nm (44 in-lbs).
• Reconnect each coil connector until it clicks/locks.

Step 8: Reassemble the cowl/microfilter area and engine cover

• Reinstall the engine cover by lining up the grommets, then press down firmly.
• Reinstall the microfilter housings using a 10mm socket and Torx T20 screwdriver.
• Reinstall any clips using the trim clip remover to line them up, then press to lock.

---

✅ After Repair

• If you disconnected the battery, reconnect it using a 10mm socket.
• Start the engine and let it idle for 60 seconds. It should run smooth with no shaking.
• Test drive gently for 10 minutes, then recheck for warning lights.
• If you had a misfire/check-engine light before, you may need to clear stored codes with a scan tool (a code reader that reads BMW codes works best).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
