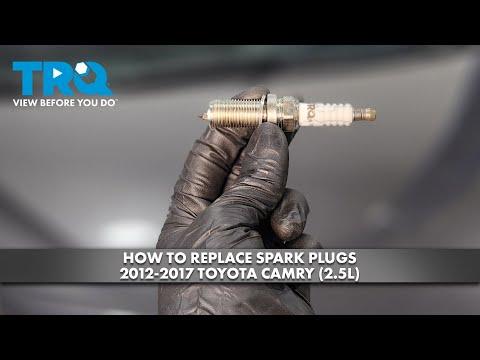

🔧 Camry - Spark Plug Replacement

Replacing the spark plugs on your Camry restores strong ignition, smooth idle, and good fuel economy. On the 2.5L engine, the plugs sit under the ignition coils on top of the engine, so this is a straightforward remove-and-replace job.

Difficulty Level: Intermediate | Estimated Time: 1.0-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Do this on a fully cool engine to avoid stripped threads and burns.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ Do not over-tighten spark plugs; use a torque wrench (a tool that clicks at the set tightness).
• ⚠️ Battery disconnect is not required, but keep the key away from the car while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-30 ft-lbs range)
• 5/8" spark plug socket
• 6" extension (3/8" drive)
• Small flathead screwdriver
• Compressed air blow gun
• Shop vacuum
• Clean shop towels
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM equivalent) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1 hour after driving).
• Lay tools out in order and keep a clean towel nearby to cover openings.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grab the plastic engine cover with both hands and pull straight upward to pop it off the rubber grommets.
• Set it aside where it won’t get stepped on.

Step 2: Unplug ignition coil connectors

• Use a flashlight to see each ignition coil connector.
• Use a small flathead screwdriver only if needed to gently help lift the lock tab, then pull the connector straight off. Don’t pull on the wires.

Step 3: Remove the ignition coils

• Use a 10mm socket with a 3/8" drive ratchet to remove the single 10mm bolt holding each coil.
• Twist the coil slightly, then pull it straight up to remove it.
• Keep coils in order (line them up on a towel) so they go back to the same cylinder.
• When reinstalling coil bolts later: Torque to 9 Nm (80 in-lbs).

Step 4: Clean around the spark plug wells

• Use a shop vacuum to remove loose dirt around the plug holes.
• Use compressed air blow gun to blow out each spark plug well before removing the plug. Protect your eyes.

Step 5: Remove the old spark plugs

• Insert a 5/8" spark plug socket with a 6" extension and 3/8" drive ratchet into the first plug well.
• Turn counterclockwise to loosen and remove the spark plug.
• Lift the plug out carefully; the spark plug socket has a rubber insert to “grab” the plug.

Step 6: Install the new spark plugs

• Compare the new plug to the old one to ensure the same length and thread size.
• Do not adjust the gap on iridium plugs; the tiny tip can be damaged.
• Start each new plug by hand first: place the plug in the 5/8" spark plug socket and carefully thread it in using the extension only (no ratchet at first). This helps prevent cross-threading (threads going in crooked).
• Once it seats, use a 3/8" drive torque wrench to tighten: Torque to 18 Nm (13 ft-lbs).
• Do not use anti-seize unless your plug maker specifically requires it.

Step 7: Reinstall coils and connectors

• Put a tiny smear of dielectric grease inside each coil boot (the rubber spark plug “boot”) to help prevent moisture and make future removal easier.
• Push each coil straight down until fully seated.
• Install each coil bolt using a 10mm socket, then finish with a 3/8" drive torque wrench: Torque to 9 Nm (80 in-lbs).
• Reconnect each coil connector until it clicks into place.

Step 8: Reinstall the engine cover

• Line up the cover with the grommets and press down firmly until it snaps in.
• Use a flashlight for a final check that no tools are left behind.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds; it should run smooth with no shaking.
• If the check engine light comes on or it runs rough, shut it off and re-check coil connectors (a loose connector is the most common issue).
• Take a short test drive, then re-check for any unusual smell or sounds.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$120 (parts only)

You Save: $200-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
