🔧 LaCrosse - Spark Plug Replacement

On your LaCrosse’s 3.6L V6, the front-bank plugs are easy to reach, but the rear-bank plugs sit under the intake manifold (upper plenum). You’ll remove the ignition coils, replace all six plugs, and reassemble carefully to avoid vacuum leaks and misfires.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot aluminum threads strip easily.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Keep dirt out of the plug holes and intake; contamination can damage the engine.
• ⚠️ Do not over-tighten spark plugs; use a torque wrench.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 8mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-40 Nm range)
• 6" extension (3/8" drive)
• 10" extension (3/8" drive)
• Spark plug socket 5/8" (16mm)
• Trim clip removal tool
• Flat blade screwdriver
• Needle-nose pliers
• Compressed air blow gun
• Feeler gauge set
• Magnetic pickup tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (ACDelco equivalent, iridium recommended) - Qty: 6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Use a 10mm socket to disconnect the negative battery cable and move it aside.
• Label hoses/connectors with tape as you go.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Pull up to remove the engine cover (it’s held by rubber grommets).
• Use a trim clip removal tool to release any plastic retainers that block access near the intake ducting.
• Use a flat blade screwdriver to loosen intake hose clamps, then move the intake tube/ducting out of the way as needed.

Step 2: Replace the front-bank spark plugs (radiator side)

• Unplug each ignition coil electrical connector by lifting the lock and pulling straight off (use needle-nose pliers gently if needed).
• Remove each coil retaining bolt using a 10mm socket, then pull the coil straight up and out.
• Blow out the plug well using compressed air blow gun so debris can’t fall into the cylinder.
• Remove the spark plug using a 5/8" (16mm) spark plug socket with a 3/8" ratchet and extension.
• Check the new plug gap with a feeler gauge set and set it to the specification supplied with the plug/underhood emissions label. Do not pry on iridium tips.
• Install the new plug by hand first (use the socket/extension without the ratchet) to prevent cross-threading.
• Tighten each new plug with a 3/8" torque wrench: Torque to 20 Nm (15 ft-lbs).
• Apply a thin smear of dielectric grease inside the coil boot (this helps prevent moisture-related misfires).
• Reinstall the coil and coil bolt using a 10mm socket: Torque to 10 Nm (89 in-lbs).
• Reconnect the coil electrical connector until it clicks.

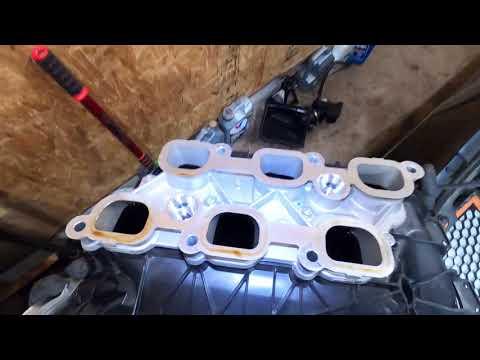

Step 3: Remove the upper intake manifold to reach the rear-bank plugs

• Disconnect the intake ducting and any resonator pieces still attached using a flat blade screwdriver and 8mm socket as equipped.
• Unplug the throttle body connector and any MAP/EVAP connectors on the intake using your hands (use needle-nose pliers only if a clip is stubborn).
• Disconnect vacuum/PCV hoses carefully. Use a flat blade screwdriver to gently break a hose loose if it’s stuck.
• Remove the intake manifold bolts using an 8mm socket and ratchet, then lift the upper intake manifold off.
• Immediately cover the intake ports with a clean lint-free rag (prevents dropped parts from entering the engine).
• Remove and discard the old upper intake manifold gaskets and throttle body gasket.

Step 4: Replace the rear-bank spark plugs (firewall side)

• Unplug each rear ignition coil connector and remove the coil bolts using a 10mm socket.
• Pull coils straight up to remove.
• Use compressed air blow gun to blow debris out of each plug well.
• Remove each rear spark plug using a 5/8" (16mm) spark plug socket, 3/8" ratchet, and a longer extension.
• Install each new plug by hand first, then torque with a 3/8" torque wrench: Torque to 20 Nm (15 ft-lbs).
• Apply a small amount of dielectric grease inside each coil boot, reinstall coils, and tighten coil bolts: Torque to 10 Nm (89 in-lbs).
• Reconnect all coil connectors until they click.

Step 5: Reinstall the upper intake manifold with new gaskets

• Install the new upper intake manifold gaskets into the manifold grooves (make sure they sit flat and aren’t twisted).
• Position the upper intake manifold back onto the engine.
• Start all intake bolts by hand first, then snug them evenly using an 8mm socket.
• Tighten the intake manifold bolts evenly (crisscross pattern) using a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs).
• Install the new throttle body gasket, reconnect the throttle body, and tighten fasteners (as equipped) using an 8mm socket: Torque to 10 Nm (89 in-lbs).
• Reconnect all vacuum/PCV hoses and electrical connectors.
• Reinstall the intake ducting and tighten clamps using a flat blade screwdriver.

Step 6: Reconnect battery and reassemble

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall the engine cover by lining it up and pressing down firmly.
• Use a flashlight to do a final visual check for unplugged connectors or leftover tools.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It may stumble briefly while the intake relearns.
• Listen for hissing (vacuum leak). If you hear it, recheck intake hoses and that the manifold is fully seated.
• Test drive 10-15 minutes. Verify no check engine light and smooth acceleration.
• If a misfire occurs, recheck coil connectors first.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
