🔧 Savana - Spark Plug Replacement

On your Savana, spark plugs wear out over time and can cause rough idle, misfires, hard starts, and poor fuel economy. Replacing them restores proper spark and helps the engine run smooth.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and stripped threads.
• ⚠️ Disconnect the negative battery cable if you’ll be unplugging coils/wiring for a while.
• ⚠️ Do not over-tighten spark plugs—aluminum cylinder heads strip easily.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal joint swivel
• 5/8" spark plug socket (3/8" drive)
• 10mm socket (3/8" drive)
• Flat trim tool
• Torque wrench (3/8" drive, 10-30 ft-lbs range)
• Feeler gauge set (inch)
• Compressed air blow gun
• Shop vacuum
• Magnetic pickup tool
• Small flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium/platinum, correct for 4.8L V8) - Qty: 8
• Dielectric grease - Qty: 1
• Spark plug wire set - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1-2 hours after driving).

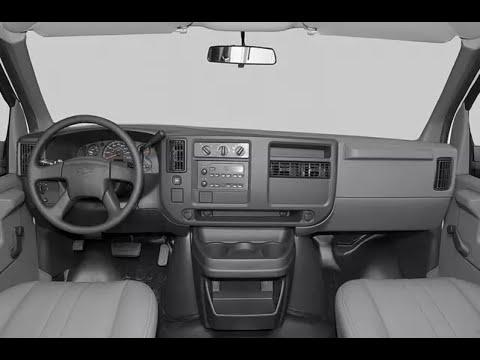

• Open the hood for front access, and plan to use the interior engine cover (“doghouse”) for best access to the rear plugs.
• Doghouse = the engine cover inside the cab.
• Assumption: Stock 4.8L V8 with coil packs and short plug wires.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior engine cover (doghouse)

• Use a flat trim tool to gently pop off any plastic covers over fasteners (if equipped).
• Use a 10mm socket to remove the doghouse retaining bolts/nuts.
• Lift the cover up and out. Use a small flashlight to check for any wiring clips still attached.

Step 2: Identify and label plug wires before removal

• Use your flashlight to locate the plug wires running from the coil packs to the spark plugs.
• Pull and replace one wire and one plug at a time so nothing gets mixed up.
• One-at-a-time prevents wrong firing order.

Step 3: Remove the first spark plug wire

• Grab the rubber boot (not the wire) and twist it left-right to break it loose.
• Pull the boot straight off the spark plug.
• If the wire routing is clipped to brackets, release it carefully using a flat trim tool.
• Boot = the thick rubber end of the wire.

Step 4: Clean around the spark plug hole

• Use a shop vacuum to remove loose dirt around the plug hole.
• Use compressed air blow gun to blow out the area (aim away from your face; wear safety glasses).

Step 5: Remove the spark plug

• Install the 5/8" spark plug socket on a 3/8" drive extension and 3/8" drive ratchet.
• Use a 3/8" drive universal joint swivel as needed for angled access (common on rear cylinders).
• Turn counterclockwise to loosen and remove the plug.
• If the plug feels extremely tight, stop and work it gently back and forth to avoid thread damage.

Step 6: Check the new spark plug gap (if required)

• Use a feeler gauge set (inch) to verify the plug gap matches the plug maker’s spec for your Savana.
• Do not forcefully bend the center electrode on fine-wire iridium plugs.
• Gap = the tiny space the spark jumps across.

Step 7: Install the new spark plug by hand first

• Place the new plug into the 5/8" spark plug socket and lower it into the hole using a 3/8" drive extension.
• Thread it in by hand using only the extension (no ratchet at first) to prevent cross-threading.
• If it doesn’t thread smoothly, back it out and try again.
• Cross-threading = threads cut incorrectly and ruin the head.

Step 8: Torque the spark plug

• Use a torque wrench (3/8" drive, 10-30 ft-lbs range) with the 5/8" spark plug socket.
• Torque to 13 ft-lbs (18 Nm).
• Do not use anti-seize unless your plug manufacturer specifically requires it (many modern plugs are coated and don’t need it).

Step 9: Install the plug wire (or replace the wire with the new one)

• Put a small amount of dielectric grease inside the wire boot (a thin smear).
• Push the boot onto the plug until you feel it fully seat.
• Route the wire the same way as before and snap it back into any holders.
• Dielectric grease helps prevent moisture and sticking.

Step 10: Repeat for all 8 spark plugs

• Work cylinder-by-cylinder to avoid mixing wires.
• Use the universal joint swivel and longer extension set for rear plugs through the doghouse opening.
• Use the hood area access for front plugs if it’s easier.

Step 11: Reinstall the doghouse

• Set the cover back in place carefully (watch for pinched wiring).
• Install fasteners with a 10mm socket and snug them evenly.

---

✅ After Repair

• Start the engine and let it idle 1-2 minutes. It should be smooth with no shaking.
• Listen for a ticking sound near the plugs (can indicate a loose plug or boot not fully seated).
• Road test for 10 minutes and verify no Check Engine Light returns.
• If you had a misfire code before, clearing codes may require a scan tool after the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
