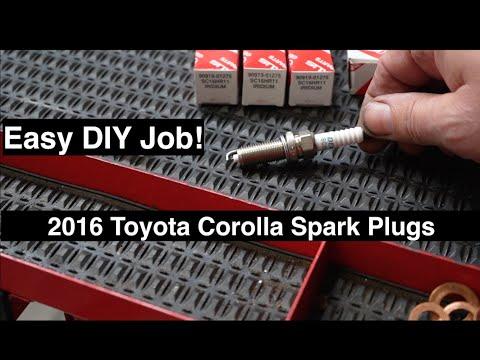

🔧 Spark Plugs - Replacement

The spark plugs on your Corolla ignite the air-fuel mixture in each cylinder. Replacing them helps restore smooth idle, easier starts, and proper fuel economy if the plugs are worn out.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on a cool engine only. Hot aluminum cylinder heads can damage threads.
• Disconnect the negative battery cable before removing ignition components.
• Keep dirt out of the spark plug wells.
• Do not use anti-seize on the plug threads unless the plug maker specifically calls for it.
• Use a torque wrench. Over-tightening can strip the cylinder head.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• 6-inch extension
• 14mm spark plug socket
• Torque wrench
• Flat trim tool
• Compressed air or air blower
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plug set - Qty: 4

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Disconnect the negative battery cable with a 10mm socket.
• Clean the top of the engine before opening the plug wells.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Lift the plastic engine cover straight up by hand. If it is tight, use a flat trim tool gently.
• Set the cover aside.

Step 2: Disconnect the ignition coils

• Use a 10mm socket and ratchet to remove the ignition coil hold-down bolts.
• Press the connector locks and unplug each ignition coil.
• Pull the coils straight up and out.
• Keep the coils in cylinder order.

Step 3: Clean the spark plug wells

• Use compressed air or an air blower to remove dirt from each plug well.
• This keeps debris from falling into the cylinder.

Step 4: Remove the old spark plugs

• Use a 14mm spark plug socket, ratchet, and 6-inch extension to remove each spark plug.
• Turn counterclockwise and remove one plug at a time.
• Check each old plug for heavy wear, oil, or unusual deposits.

Step 5: Install the new spark plugs

• Start each new spark plug by hand using the extension only.
• Thread them in carefully so you do not cross-thread the cylinder head.
• Use a torque wrench and 14mm spark plug socket to tighten each plug to 18 Nm (13 ft-lbs).
• Hand-starting prevents costly thread damage.

Step 6: Reinstall the ignition coils

• Push each ignition coil straight down onto its spark plug.
• Reconnect the electrical connectors.
• Install and tighten the coil bolts with a 10mm socket to 9 Nm (80 in-lbs).

Step 7: Reinstall the engine cover and battery

• Push the engine cover back into place by hand.
• Reconnect the negative battery cable with a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle.
• Listen for misfires, rough idle, or ticking noises.
• Check that the check engine light stays off.
• If the engine runs rough, recheck all coil connectors.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
