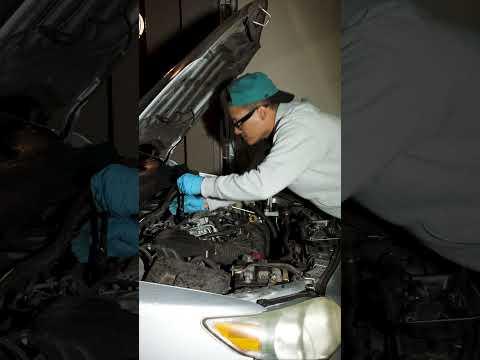

🔧 Corolla - Spark Plug Replacement

On your Corolla, the spark plugs sit under the ignition coils on top of the engine. Replacing them restores smooth starts, fuel economy, and helps prevent misfires as the plugs wear with age.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ Do not over-tighten spark plugs; aluminum threads can strip.
• ⚠️ Battery disconnect is not required, but if you disconnect it, use a 10mm wrench and remove the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" ratchet
• 3/8" extension set (3" and 6")
• 14mm thin-wall spark plug socket (rubber insert or магнит insert)
• 3/8" torque wrench (10-30 ft-lb range)
• Small flat trim tool
• Compressed air blow gun
• Shop vacuum
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (OEM-style) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully (best: sit 1+ hour).
• Have your new plugs ready and keep them in the box until install.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grab the cover and pull upward evenly to release it from the rubber grommets. If it feels stuck, use a small flat trim tool to gently help lift at a corner.

Step 2: Unplug the ignition coil connectors

• Each spark plug has an ignition coil on top. The coil is the pencil-shaped part with an electrical connector.
• Press the connector tab and pull the connector straight off. If the tab is stubborn, use a small flat trim tool gently. Don’t yank on wires.

Step 3: Remove the ignition coils

• Use a 10mm socket with a 3/8" ratchet to remove the bolt holding each coil.
• Twist the coil slightly, then pull it straight up and out.
• Set coils aside in order (so they go back in the same holes).

Step 4: Clean around the spark plug wells

• Use a shop vacuum to remove loose dirt around the holes.
• Use a compressed air blow gun to blow out each spark plug well before removing the plug.

Step 5: Remove the old spark plugs

• Install the 14mm thin-wall spark plug socket on a 3/8" extension and 3/8" ratchet.
• Turn counterclockwise to loosen and remove each spark plug.
• If a plug feels extremely tight, stop and work it slowly back-and-forth using the 3/8" ratchet. Slow is safer for threads.

Step 6: Install the new spark plugs (avoid cross-threading)

• Put a new plug into the 14mm spark plug socket.
• Lower it into the hole using only the extension and your fingers to start threading (no ratchet yet).
• Turn clockwise by hand until it seats. If it won’t turn easily, back it out and restart (this prevents cross-threading).
• Torque each spark plug using a 3/8" torque wrench: Torque to 18 N·m (13 ft-lbs).
• Do not add anti-seize to the plug threads unless the plug maker specifically says to (most iridium plugs come with a special coating).

Step 7: Reinstall the ignition coils

• Optional (recommended): put a tiny smear of dielectric grease inside each coil boot opening (this helps prevent moisture sticking). Dielectric grease is a non-conductive grease made for electrical boots.
• Push each coil straight down onto the spark plug until fully seated.
• Install coil bolts using a 10mm socket and tighten with a 3/8" torque wrench: Torque to 9 N·m (80 in-lbs).

Step 8: Reconnect coil connectors and reinstall the engine cover

• Push each electrical connector on until it clicks.
• Reinstall the engine cover by lining it up and pressing down firmly at the grommets.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds. It should run smooth with no shaking.
• If you get a check engine light or rough running, re-check that every coil connector is fully clicked in and every coil is seated.
• If you have a scan tool, check for misfire codes and clear any stored codes after the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$350 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $110-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
