🔧 Spark Plugs - Replacement

This job means removing the ignition coils, taking out the old spark plugs, and installing new ones with the correct gap and torque. On your Sentra, the plugs are on top of the engine and are straightforward to reach, so this is a good beginner repair if you work carefully.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work on a completely cool engine. Hot aluminum threads can be damaged easily.
• Keep dirt out of the spark plug wells. Debris can fall into the engine if you are not careful.
• Disconnect the negative battery cable before removing ignition coils.
• Do not overtighten the new spark plugs. Over-tightening can strip the cylinder head.
• Use only the correct plug type and pre-gap if needed. Do not force the plugs into the threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• 6-inch extension
• 5/8-inch spark plug socket
• Torque wrench
• Gap gauge
• Flat screwdriver
• Trim clip tool
• Needle-nose pliers
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs - Qty: 4
• Dielectric grease - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before starting.
• Open the hood and remove the engine cover if equipped.
• Disconnect the negative battery cable before unplugging ignition coils.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use your hands to pull up on the engine cover if it is clipped on.
• If it feels stuck, use a trim clip tool gently under the edge.
• Set the cover aside.

Step 2: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal.
• Move the cable aside so it cannot touch the terminal.
• Keep the cable from springing back.

Step 3: Remove the ignition coil connectors

• Unplug each coil connector by pressing the release tab and pulling straight back.
• If a connector is tight, use a flat screwdriver gently on the lock tab.
• Do not yank the wires.

Step 4: Remove the ignition coils

• Use a 10mm socket and ratchet to remove the coil hold-down bolts.
• Pull each ignition coil straight up out of the spark plug well.
• Place the coils in order so they go back in the same locations.

Step 5: Clean around the spark plugs

• Use compressed air if available, or carefully wipe the area clean.
• Keep dirt from falling into the plug tubes.
• A clean well helps prevent engine damage.

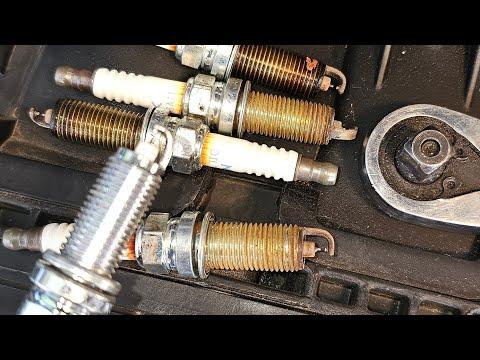

Step 6: Remove the old spark plugs

• Use a 5/8-inch spark plug socket, ratchet, and extension to loosen each plug.
• Turn counterclockwise until the plug comes free.
• Lift the plug out slowly so it does not drop debris into the cylinder.

Step 7: Check and prepare the new spark plugs

• Compare the new plugs to the old ones to confirm they match.
• Use a gap gauge to verify the gap if the plugs are not pre-gapped.
• Apply a tiny amount of anti-seize compound only if the plug maker allows it.

Step 8: Install the new spark plugs

• Thread each plug in by hand first using the socket and extension only.
• If a plug does not thread easily, back it out and start again.
• Torque each spark plug to 18-22 Nm (13-16 ft-lbs).
• Hand-threading prevents cross-thread damage.

Step 9: Reinstall the ignition coils

• Add a small amount of dielectric grease inside each coil boot if desired.
• Slide each coil straight down onto its spark plug.
• Install the coil bolts with a 10mm socket.
• Torque the coil bolts to 8-10 Nm (71-89 in-lbs).

Step 10: Reconnect the wiring and battery

• Reconnect each coil electrical connector until it clicks.
• Reconnect the negative battery cable using a 10mm socket.
• Make sure the terminal is snug.

Step 11: Reinstall the engine cover and verify operation

• Snap the engine cover back into place.
• Start the engine and let it idle.
• Listen for smooth running and check for warning lights.

---

✅ After Repair

• Start the engine and confirm it idles smoothly.
• If the check engine light is on, scan for misfire codes.
• Test drive gently and make sure acceleration feels normal.
• Recheck that all coil connectors are fully locked.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $140-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
