🔧 Malibu - Spark Plug Replacement

On your Malibu, the spark plugs sit under the ignition coils on top of the engine. Replacing them helps prevent misfires, rough idle, and poor fuel economy as the plugs wear over time.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and prevent thread damage in the cylinder head.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ Do not over-tighten spark plugs—stripped threads are a serious repair.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal is safer if you’re worried about accidentally shorting something.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Torque wrench (ft-lb/Nm)
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 5/8" spark plug socket (rubber insert or магнит insert)
• Small flathead screwdriver
• Compressed air blow gun
• Spark plug gap gauge (wire style)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium/platinum, correct for 2.5L) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely (at least 1 hour if it was running).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use your hands to pull the engine cover straight upward to release the rubber grommets.
• Set it aside where it won’t get stepped on.

Step 2: Locate the ignition coils

• The ignition coils are the 4 coil units on top of the engine, one per cylinder.
• Do one cylinder at a time.

Step 3: Unplug the coil electrical connector

• Use a small flathead screwdriver only if needed to gently lift the lock tab.
• Pull the connector straight off (do not pull on the wires).

Step 4: Remove the ignition coil

• Use a 10mm socket and 3/8" drive ratchet to remove the coil hold-down bolt.
• Twist the coil slightly, then pull it straight up to remove it.
• If it feels stuck, wiggle—don’t pry hard.

Step 5: Clean around the spark plug well

• Use a compressed air blow gun to blow out dirt from the spark plug hole area.
• This helps keep debris from falling into the cylinder.

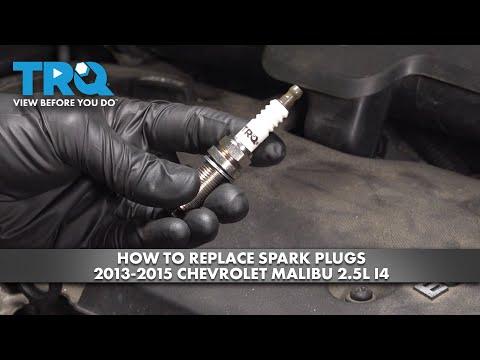

Step 6: Remove the old spark plug

• Install the 5/8" spark plug socket on a 3/8" drive extension and 3/8" drive ratchet.
• Turn counterclockwise to remove the spark plug, then lift it out carefully with the socket.
• If it feels extremely tight, stop and work it gently to avoid thread damage.

Step 7: Check and prep the new spark plug

• Use a spark plug gap gauge (wire style) to verify the gap matches spec for your 2.5L plug application (many are pre-gapped).
• Do not bend the tiny center electrode; only adjust if the plug manufacturer says it’s allowed.
• Apply a very small amount of dielectric grease inside the coil boot (this helps prevent the boot from sticking later). Dielectric grease is a silicone grease that repels moisture.
• Skip anti-seize unless the plug maker requires it.

Step 8: Install the new spark plug and torque it

• Place the new plug into the 5/8" spark plug socket and lower it into the hole.
• Thread it in by hand using only the extension/socket at first (no ratchet) to prevent cross-threading.
• Once seated, use a torque wrench to tighten: Torque to 18 Nm (13 ft-lbs).

Step 9: Reinstall the ignition coil and torque the bolt

• Push the coil straight down until fully seated on the spark plug.
• Install the bolt by hand, then tighten with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 10: Repeat for the remaining cylinders

• Repeat Steps 3–9 for the other 3 spark plugs.
• Keep parts grouped so nothing gets mixed up.

Step 11: Reinstall engine cover and reconnect battery (if disconnected)

• Press the engine cover back down until it snaps into the grommets.
• If you disconnected the battery, reinstall the negative terminal using a 10mm socket and tighten snugly.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds.
• Listen/feel for a smooth idle (no shaking) and make sure the check engine light stays off.
• If you had a misfire code before, scan and clear codes after confirming it runs smoothly.
• Test drive 10–15 minutes and re-check for any warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$400 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $160-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
