🔧 Sierra 1500 - Spark Plug Replacement

On your Sierra 1500, replacing spark plugs restores smooth idle, power, and fuel economy, and helps prevent misfires. The job is mostly about careful access around the ignition coils and installing the new plugs with the correct gap and torque.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cold engine to avoid burns and thread damage in the cylinder heads.
• 🧤 Keep dirt out of the plug holes; blow them out before removing plugs.
• 🔌 Disconnect the negative battery cable if you’ll be unplugging multiple coils at once.
• 🧯 Keep flames/sparks away; fuel vapors can be present in the engine bay.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 5/8" spark plug socket (rubber insert or magnetic)
• Torque wrench (3/8" drive, 10–30 ft-lbs range)
• Flat-blade screwdriver
• Compressed air blow gun
• Feeler gauge set
• Anti-seize compound
• Dielectric grease
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (5.3L V8) - Qty: 8
• Ignition coil boots - Qty: 8

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully (at least 1 hour after driving).
• If you plan to unplug several coils at once, disconnect the battery using a 10mm socket on the negative terminal.
• Clean around the coils and plug wells so debris can’t fall into the engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify your 2007 body style (quick check)

• If your truck says “Classic” on the door/cluster, it’s the older body style; if not, it’s the newer body style. The plug steps are the same, but a couple access points can differ.
• Reply with: Classic or Not Classic and I’ll tailor the access tips exactly.

Step 2: Remove the engine cover (if equipped)

• Use a trim clip removal tool or your hands to release the cover fasteners (varies by setup), then lift it off.

Step 3: Do one cylinder at a time

• This prevents mixing up connectors and parts. Start on the easiest front cylinder and work backward.
• One-at-a-time prevents wiring mix-ups.

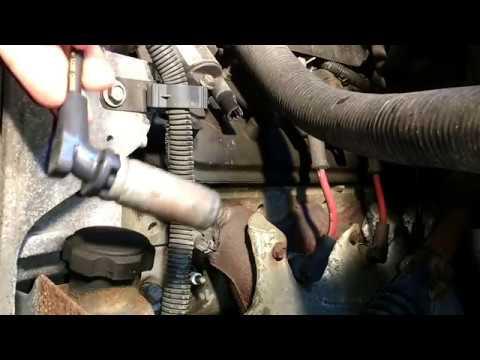

Step 4: Unplug the ignition coil connector

• Use a flat-blade screwdriver to gently release the connector lock (if present), then pull the connector straight off.
• An ignition coil is the small module on the valve cover that sends high voltage to the spark plug.

Step 5: Remove the ignition coil

• Use a 10mm socket with a 3/8" drive ratchet and extension to remove the coil mounting bolts.
• Lift the coil upward to pull the rubber boot off the spark plug.
• Apply a tiny amount of dielectric grease inside the boot when reinstalling; it helps seal out moisture and makes future removal easier.

Step 6: Blow out the spark plug well

• Use a compressed air blow gun to blow debris out around the spark plug before removal.
• This helps keep dirt from falling into the cylinder.

Step 7: Remove the old spark plug

• Use a 5/8" spark plug socket with a 3/8" drive ratchet and the needed extension to loosen and remove the plug.
• If it feels stuck, stop and work it back and forth gently; don’t force it on an aluminum head.

Step 8: Check and set the new spark plug gap

• Use a feeler gauge set to check the gap.
• Gap spec depends on the exact plug/engine calibration. If you tell me Classic vs Not Classic, I’ll give the exact plug gap spec for your Sierra 1500.

Step 9: Install the new spark plug by hand first

• Thread the new plug in by hand using the 5/8" spark plug socket and an extension only (no ratchet) to avoid cross-threading.
• Once it seats, torque it with a torque wrench: Torque to 20 Nm (15 ft-lbs).
• Use anti-seize compound very sparingly (a tiny smear on the first 1–2 threads only) if you choose to use it; too much can change torque accuracy.

Step 10: Reinstall the coil and connector

• Push the coil boot straight down onto the plug until it feels fully seated.
• Install coil bolts using a 10mm socket and snug evenly, then torque with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the coil electrical connector until it clicks/locks.

Step 11: Repeat for all 8 cylinders

• Repeat Steps 4–10 for each cylinder.
• Use longer 3/8" drive extensions for rear cylinders as needed.

Step 12: Reinstall engine cover and reconnect battery (if disconnected)

• Reinstall the engine cover fasteners by hand, then press into place.
• If you disconnected the battery, reconnect the negative cable using a 10mm socket and tighten securely.

---

✅ After Repair

• Start the engine and listen for a smooth idle (no shaking or ticking).
• Check that the Check Engine light stays off.
• Take a short test drive and verify power feels normal.
• If you get a misfire after the job, re-check coil connectors and that each coil boot is fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $190-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
