🔧 Silverado 1500 - Spark Plug Replacement

Replacing the spark plugs helps your A4— (Correction) your Silverado 1500 start easier, idle smoother, and maintain fuel economy. On your 5.3L V8, the plugs sit along both valve covers and are accessed by moving the ignition coils and plug wires out of the way.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the plug holes; debris can damage the engine.
• ⚠️ Disconnect the negative battery cable to prevent accidental sparks.
• ⚠️ Do not over-tighten spark plugs; the cylinder heads are aluminum.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (0–30 ft-lbs range)
• 6" socket extension (3/8" drive)
• 12" socket extension (3/8" drive)
• 5/8" spark plug socket (rubber insert)
• Pick tool
• Compressed air blow gun
• Spark plug gap gauge (wire style)
• Small flathead screwdriver
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (5.3L V8 spec, iridium or OEM-equivalent) - Qty: 8
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully (at least 1 hour).
• Use a 10mm socket to disconnect the negative battery cable and move it aside.
• Do one cylinder at a time to avoid mix-ups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the cover upward to release it from the mounting grommets (use your hands).
• If your cover uses fasteners, remove them with a 10mm socket.

Step 2: Locate the ignition coil and plug wire for cylinder #1

• Each cylinder has an ignition coil mounted near the valve cover, with a short plug wire going to the spark plug.
• Replace one plug at a time to stay organized.

Step 3: Unplug the coil electrical connector

• Use a small flathead screwdriver to gently help lift the connector lock if needed.
• Press the tab and pull the connector straight off by hand (don’t pull on the wires).

Step 4: Remove the ignition coil

• Remove the coil mounting bolts using a 10mm socket and 3/8" drive ratchet.
• Lift the coil out and set it aside.
• When reinstalling later: Torque to 10 Nm (89 in-lbs).

Step 5: Remove the plug wire from the spark plug

• Grab the boot (the thick rubber end), twist it slightly, then pull it off.
• If it’s stubborn, use a pick tool carefully at the edge of the boot to help break the seal.
• Never yank the wire itself.

Step 6: Clean the spark plug well

• Blow out dirt around the plug using a compressed air blow gun.
• Wipe nearby areas with shop rags so nothing falls into the hole.

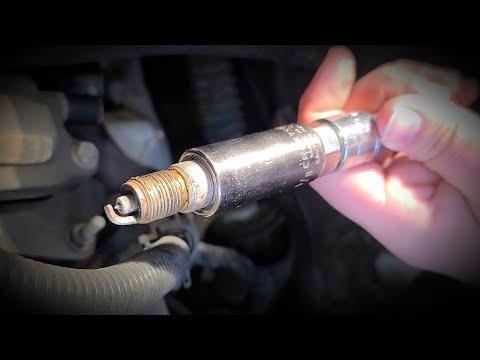

Step 7: Remove the old spark plug

• Install a 5/8" spark plug socket (rubber insert) on a 6" socket extension (3/8" drive) and 3/8" drive ratchet.
• Turn counterclockwise to loosen, then spin it out carefully.
• If access is tight, switch to a 12" socket extension (3/8" drive).

Step 8: Check and set the new spark plug gap

• Use a spark plug gap gauge (wire style) to verify the gap matches the plug spec for your 5.3L (many plugs come pre-gapped).
• If adjustment is needed, change the gap gently—don’t pry on the center electrode.

Step 9: Install the new spark plug by hand first

• Place the new plug into the 5/8" spark plug socket and lower it into the hole using the extension.
• Turn the extension by hand clockwise several full turns to ensure it’s not cross-threaded.
• If it doesn’t thread easily, back out and retry.
• Important: Avoid anti-seize unless the plug maker specifically requires it (most modern plated plugs do not).

Step 10: Torque the spark plug

• Use a 3/8" drive torque wrench (0–30 ft-lbs range) with the 5/8" spark plug socket.
• Torque to 15 Nm (11 ft-lbs).

Step 11: Reinstall the plug wire and coil

• Apply a small amount of dielectric grease inside the plug wire boot (this helps prevent sticking and moisture).
• Push the boot onto the spark plug until you feel it seat.
• Reinstall the coil and bolts using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Reconnect the coil electrical connector by hand until it clicks.

Step 12: Repeat for the remaining 7 spark plugs

• Follow the same process on each cylinder, one at a time.
• Use a flashlight to confirm every connector is fully latched.

Step 13: Reconnect the battery and reinstall the engine cover

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall the engine cover by pressing it back onto the grommets (or tighten fasteners with a 10mm socket).

---

✅ After Repair

• Start the engine and listen for a smooth idle (no misfire shaking).
• Check that no check-engine light appears.
• Take a short test drive, then recheck that all coil connectors are fully seated.
• If you get a misfire right away, recheck the plug wire seating on that cylinder first.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $190-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
