🔧 RAV4 - Spark Plug Replacement

On your RAV4, the spark plugs sit under the ignition coils on top of the engine. Replacing them restores smooth starts, good fuel economy, and helps prevent misfires.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and damaged threads.
• ⚠️ Keep dirt out of the spark plug holes—debris can damage the engine.
• ⚠️ Do not over-tighten spark plugs; aluminum threads strip easily.
• ⚠️ Battery disconnect is optional, but recommended if you’re worried about bumping the starter: remove the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 5/8" spark plug socket (rubber insert or magnetic)
• 3/8" torque wrench (10-30 ft-lbs range)
• Small flathead screwdriver
• Needle-nose pliers
• Compressed air blow gun
• Feeler gauge set (0.043")
• Dielectric grease
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, OEM-equivalent) - Qty: 4
• Ignition coil boot (optional, if torn/swollen) - Qty: 4

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool completely (at least 1 hour after driving).
• 🧹 Have compressed air ready to blow out each plug well before removing the plug.
• 🔋 Optional: Use a 10mm socket to disconnect the negative battery terminal and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a 10mm socket and 3/8" drive ratchet to remove the engine cover fasteners.
• Lift the cover straight up and set it aside.

Step 2: Unplug the ignition coil connectors

• Find the 4 ignition coils on top of the engine.
• Use a small flathead screwdriver to gently lift the connector lock tab (if present), then pull the connector off by hand.
• Tip: Pull the connector body, not the wires.

Step 3: Remove the ignition coils

• Use a 10mm socket and 3/8" drive ratchet to remove the bolt holding each coil.
• Twist the coil slightly, then pull it straight up to remove it.
• Reinstall torque later: Torque to 9 Nm (80 in-lbs).
• Tip: Keep coils in order, one per cylinder.

Step 4: Clean the spark plug wells

• Put on safety glasses.
• Use a compressed air blow gun to blow dirt out around each spark plug.
• If you see sand/grit, take extra time here—this matters.

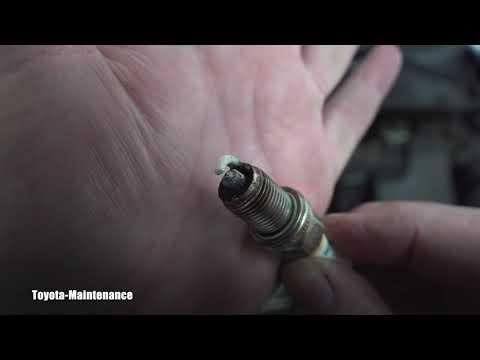

Step 5: Remove the old spark plugs

• Install a 5/8" spark plug socket onto a 3/8" drive extension and 3/8" drive ratchet.
• Turn counterclockwise to loosen, then remove the plug the rest of the way.
• If a plug feels very tight, stop and work it gently back and forth to avoid thread damage.

Step 6: Check and prep the new spark plugs

• Use a feeler gauge set (0.043") to confirm the gap is about 1.1 mm (0.043").
• Do not bend the tiny center electrode on iridium plugs (it can crack).
• Do not apply anti-seize unless the plug maker specifically requires it (it can cause over-tightening).

Step 7: Install the new spark plugs (by hand first)

• Place a new plug into the 5/8" spark plug socket (the insert helps hold it).
• Use only the 3/8" drive extension (no ratchet) to thread the plug in by hand clockwise several turns.
• If it doesn’t thread easily, back it out and try again—this prevents cross-threading.

Step 8: Torque the spark plugs

• Set your 3/8" torque wrench to 18 Nm (13 ft-lbs).
• Tighten each spark plug to: Torque to 18 Nm (13 ft-lbs).

Step 9: Reinstall ignition coils and connectors

• Add a tiny smear of dielectric grease inside each coil boot (dielectric grease is a silicone grease that helps prevent moisture and makes future removal easier).
• Push each coil straight down until fully seated on the plug.
• Install each coil bolt using a 10mm socket and 3/8" drive ratchet, then final-tighten with a 3/8" torque wrench: Torque to 9 Nm (80 in-lbs).
• Reconnect each electrical connector until it clicks.

Step 10: Reinstall the engine cover

• Set the cover back in place and start fasteners by hand.
• Use a 10mm socket and 3/8" drive ratchet to snug them down (do not over-tighten plastic covers).

---

✅ After Repair

• 🔋 If disconnected, reconnect the negative battery terminal using a 10mm socket.
• 🚗 Start the engine and let it idle for 30-60 seconds; it should run smooth with no shaking.
• 👂 Listen for clicking/air leaks around the coils (usually means a coil not fully seated).
• 🛣️ Take a short test drive. If the check engine light flashes or it runs rough, stop and re-check coil connectors and coil seating.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $160-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
