🔧 Camry - Spark Plug Replacement

Your Camry uses 4 spark plugs (one per cylinder). Replacing them restores smooth starting, idle quality, and fuel economy, especially if the plugs are old or you’re getting a misfire.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a fully cool engine to avoid burns and damaged threads.
• 🛑 Do not over-tighten spark plugs; stripped threads in the cylinder head are expensive.
• 🛑 Keep dirt out of the plug holes—debris can fall into the cylinder.
• 🛑 Battery disconnect is recommended: remove the negative terminal to prevent accidental shorting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 5/8" spark plug socket (rubber insert or magnet)
• Torque wrench (3/8" drive, 10-30 ft-lbs range)
• Flathead screwdriver (small)
• Compressed air blow gun
• Shop vacuum
• Feeler gauge set (metric or inch)
• Dielectric grease
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs (pre-gapped to 1.1 mm / 0.043") - Qty: 4

---

📋 Before You Begin

• Park on level ground, put the transmission in neutral, and set the parking brake.
• Let the engine cool completely (at least 1 hour after driving).
• Use a 10mm socket to disconnect the negative battery terminal and move it aside.
• Lay out the new plugs and keep them in their boxes until install to avoid cracking the porcelain.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a 10mm socket with a 3/8" drive ratchet to remove the engine cover fasteners.
• Lift the cover off and set it aside.

Step 2: Unplug and remove ignition coils

• Locate the 4 ignition coils on top of the engine (one coil per plug).
• Use a flathead screwdriver (small) to gently lift the connector lock tab (if tight), then unplug the coil connector.
• Use a 10mm socket to remove the bolt holding the coil down.
• Twist the coil slightly, then pull it straight up to remove it.
• Keep coils in order, left to right.

Step 3: Clean the spark plug wells

• Put on safety glasses.
• Use a shop vacuum around the plug wells first.
• Then use compressed air blow gun to blow out each spark plug well.
• This prevents dirt from dropping into the engine when the plug comes out.

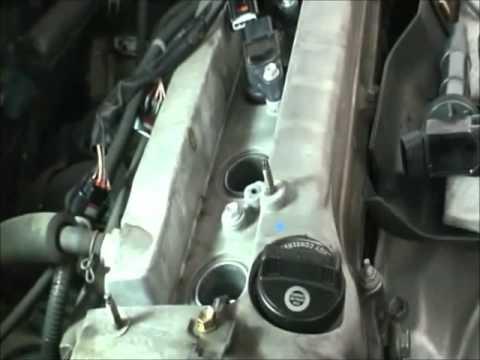

Step 4: Remove the old spark plugs

• A 5/8" spark plug socket is a deep socket made to grip spark plugs safely.
• Install the 5/8" spark plug socket on a 3/8" drive extension (6") and 3/8" drive ratchet.
• Lower it straight into the plug well and loosen the spark plug counterclockwise.
• Once loose, spin it out carefully and lift it out.
• If a plug feels stuck, stop and work it gently—don’t force it.

Step 5: Check the new plug gap (quick verification)

• Use a feeler gauge set to verify the gap is about 1.1 mm (0.043").
• Do not bend the fine tip on iridium plugs—if one is way off, exchange it.

Step 6: Install the new spark plugs

• Start each plug by hand using the 5/8" spark plug socket and a 3/8" drive extension (6") only (no ratchet at first).
• Thread it in until it seats. It should turn smoothly; if it binds, back it out and try again.
• Attach the torque wrench (a torque wrench clicks when the correct tightness is reached) and tighten each plug: Torque to 25 Nm (18 ft-lbs).
• No anti-seize on plated plugs.

Step 7: Reinstall ignition coils

• Put a tiny smear of dielectric grease inside each coil boot (the rubber part that touches the plug).
• Push each coil straight down until fully seated.
• Install the coil hold-down bolt using a 10mm socket, then tighten: Torque to 8 Nm (69 in-lbs).
• Plug the electrical connectors back in until they click/lock.

Step 8: Reinstall engine cover and reconnect battery

• Reinstall the engine cover using a 10mm socket.
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds.
• Listen/feel for a smooth idle (no shaking) and confirm no warning lights appear.
• Take a short test drive and re-check for any hesitation under light acceleration.
• If you get a misfire after this job, the most common cause is a coil connector not fully clicked in.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$350 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $120-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
