🔧 Sierra 1500 - Side View Mirror Replacement

We’ll remove the interior door trim at the mirror area, unplug the mirror wiring, unbolt the mirror, and install the new one. This restores proper visibility and keeps all features (heat, power adjust, cameras, etc.) working.

Difficulty Level: Intermediate | Estimated Time: 1–1.5 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging mirror or door harness connectors to avoid short circuits or airbag warning lights.
• ⚠️ Your Sierra has side air bags in the doors—do not probe or pierce the door panel with sharp tools.
• ⚠️ Support the mirror with one hand while removing the last nut so it does not fall and damage the paint.
• ⚠️ Work with the truck in Park, engine off, parking brake applied, on level ground.
• ⚠️ Use plastic trim tools to avoid scratching the interior door panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 7mm socket
• 🛠️ 1/4" drive ratchet
• 🛠️ 1/4" drive extension (3–6")
• 🛠️ T15 Torx screwdriver
• 🛠️ T20 Torx screwdriver
• 🛠️ Plastic trim removal tool set
• 🛠️ Small flathead screwdriver (3–4 mm tip)
• 🛠️ Needle-nose pliers
• 🛠️ Panel clip removal tool
• 🛠️ Torque wrench (inch-pound, 20–200 in-lbs range)
• 🛠️ Work light or flashlight
• 🛠️ Protective gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Left side power door mirror assembly (matching SLT options) - Qty: 1
• 🔩 Right side power door mirror assembly (matching SLT options) - Qty: 1
• 🔩 Mirror mounting nuts (M6, if not included with mirror) - Qty: 3 per side
• 🔩 Door trim panel clips - Qty: 6–10 per door
• 🔩 Butyl or foam sealing strip for mirror mounting area - Qty: enough for 2 mirrors
• 🔩 Electrical contact cleaner - Qty: 1 can
• 🔩 Painter’s tape - Qty: 1 roll

---

📋 Before You Begin

• Park the Sierra on level ground, shift to Park, and set the parking brake.
• Make sure windows are fully raised; this protects the glass while removing the door panel.
• Open the door you’ll be working on fully for room to move.
• Turn ignition off, remove the key/fob from the vehicle.
• Disconnect the negative battery terminal using a 10mm socket, and secure the cable so it cannot spring back to contact.
• Apply painter’s tape along the base of the mirror and door edge to protect paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Prepare the work area

• Open the front door fully and switch on your work light.
• Lay a clean towel on the door sill to protect the paint and to rest tools.
• Wear safety glasses and gloves before starting.

Step 2: Remove the sail panel trim at the mirror

• The sail panel is the small triangular plastic cover inside the door, behind the mirror.
• Use a plastic trim removal tool to gently pry along the top edge of the sail panel.
• Work your way around until the clips pop free; pull the panel straight away from the door.
• If there is a small foam pad or sound deadening, set it aside to reuse.
• Pry gently; clips break easily if twisted.

Step 3: Remove hidden screws from the door panel

• Use a small flathead screwdriver to pop off the trim cover behind the interior door handle (small plastic cap).
• Remove the screw behind the handle using a T15 Torx screwdriver.
• In the door pull/armrest pocket, locate the screw and remove it with a 7mm socket and 1/4" ratchet.
• Check along the bottom edge of the door panel for any additional 7mm screws and remove them.
• Keep all screws in a small cup so none get lost.

Step 4: Release the door panel clips

• Starting at the bottom rear corner of the door panel, slide a plastic trim removal tool between the panel and the metal door.
• Pry outward to release the first clip—you will hear it pop.
• Move along the bottom and sides, using the panel clip removal tool if needed, to pop all clips around the edge of the panel.
• When all clips are loose, lift the entire door panel straight up to unhook it from the window channel.
• Do not pull the panel too far away; wiring is still attached behind it.

Step 5: Disconnect door panel wiring

• Support the panel with one hand or rest the bottom edge on your knee.
• Unplug the main window/lock switch connector by pressing the tab with a small flathead screwdriver and pulling straight out.
• Unplug any courtesy light or speaker connectors using your fingers or needle-nose pliers if needed.
• Once all connectors are free, set the door panel in a safe place, face up.

Step 6: Access and disconnect the mirror connector

• Look near the top front corner of the door (behind the sail area) for the mirror wiring harness.
• Use a small flathead screwdriver to lift the locking tab on the connector.
• Pull the connector apart by hand; do not pull on the wires.
• If the connector is dusty, spray lightly with electrical contact cleaner and let it dry.

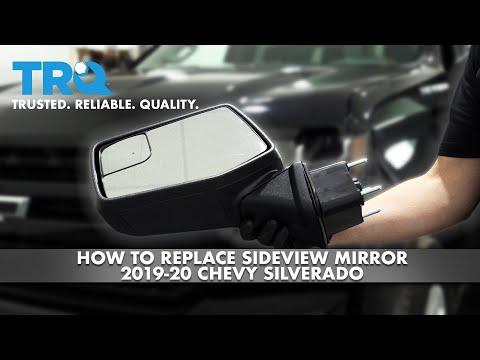

Step 7: Remove the old mirror

• From inside the door, locate the three mirror mounting studs with nuts near the sail area.
• Use a 10mm socket, extension, and ratchet to loosen and remove the lower nuts first.
• Before removing the last top nut, hold the mirror from the outside with your other hand so it does not fall.
• Remove the final nut and carefully pull the mirror straight away from the door from outside.
• Guide the wiring harness and grommet out through the hole.

Step 8: Clean and prepare the mounting surface

• Clean the paint and sealing surface around the mirror holes with a clean rag.
• Remove any old foam or butyl seal from the door and mirror area.
• Apply new butyl or foam sealing strip around the mirror opening to match the original sealing pattern.
• Good sealing helps keep wind noise and water out.

Step 9: Install the new mirror

• Feed the new mirror wiring harness and grommet through the hole in the door from outside.
• Seat the mirror base flat against the door, lining up the studs with the holes.
• From inside, install the mounting nuts by hand onto all three studs to avoid cross-threading.
• Use a 10mm socket and ratchet to snug the nuts.
• Then use a torque wrench with the 10mm socket to tighten each nut evenly to 9 Nm (80 in-lbs).
• Do not overtighten; you can crack the mirror base.

Step 10: Reconnect the mirror wiring

• Plug the mirror connector into the door harness until it clicks.
• Make sure the connector locking tab is fully engaged.
• Secure any harness clips or routing points so the wire does not rub sharp metal.

Step 11: Reinstall the door panel

• Bring the door panel back to the door and support it in front of the frame.
• Reconnect the window/lock switch connector and any courtesy light or speaker connectors by hand.
• Hook the top of the door panel over the window channel and press down to seat it.
• Align the plastic clips with their holes, then press around the edges of the panel to snap all clips back in place.

Step 12: Reinstall screws and sail panel

• Reinstall any bottom and side screws with a 7mm socket and ratchet.
• Reinstall the screw behind the inside door handle using a T15 Torx screwdriver.
• Snap the small trim cover back over the handle screw by hand.
• Position the sail panel over its clips and press firmly until it snaps into place.

Step 13: Reconnect the battery and test the mirror

• Reconnect the negative battery terminal with a 10mm socket and tighten securely.
• Turn ignition to ON (engine can remain off).
• Test mirror power adjustment using the door switch in all directions.
• If equipped, test power fold, mirror turn signal, blind-spot indicator, heating, and any camera view on the infotainment screen.
• Always compare function with the other side as a reference.

---

✅ After Repair

• Check that both mirrors adjust smoothly and hold position when driving on a short test route.
• Confirm there are no wind whistles or water leaks around the mirror area by driving at highway speed and later checking after a car wash or rain.
• If any function does not work (heat, fold, camera), recheck the harness connection and confirm the replacement mirror has all the same features as the original.
• Clean fingerprints off mirror glass and painted surfaces with glass cleaner and a soft cloth.

---

💰 DIY vs Shop Cost

Shop Cost: $500–$900 per side (parts + labor)

DIY Cost: $200–$450 per side (parts only, depending on options like cameras and blind-spot)

You Save: $300–$450 per side by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours per side.

---
