🔧 Express 3500 - Side View Mirror Replacement

Replacing a side view mirror on your Express 3500 usually means removing the interior door trim, unplugging the mirror wiring (if equipped), and swapping the mirror assembly. This restores safe visibility and proper mirror adjustment.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Work with the key off and keep fingers clear of the window regulator area.
• ⚠️ If your mirror is powered/heated, disconnecting the battery helps prevent accidental shorts.
• ⚠️ Support the mirror during removal so it doesn’t fall and chip paint.
• ⚠️ Door edges can be sharp; wear gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Flat-blade screwdriver
• Phillips screwdriver
• 7mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Torque wrench (inch-pound) (specialty)
• Painter’s tape
• Magnetic pickup tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Left or Right as needed - Qty: 1
• Mirror mounting nuts - Qty: 3
• Door trim panel clips - Qty: 5-10
• Butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window glass a few inches so you can grip the door panel safely.
• If equipped with power/heated mirrors, disconnect the negative battery cable using a 10mm socket.
• Put painter’s tape on the door paint below the mirror to protect it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel (mirror trim)

• At the front upper corner of the door (inside), pry off the small triangular trim piece using a trim removal tool set.
• Pull straight out to avoid breaking clips.

Step 2: Remove screws holding the door trim panel

• Remove any visible screws near the armrest/handle area using a Phillips screwdriver (some vans use a 7mm socket instead).
• If there’s a small cover hiding a screw, pop the cover off gently with a flat-blade screwdriver, then remove the screw.
• Put screws in one cup so you don’t lose them.

Step 3: Release the door trim panel clips

• Slide a trim removal tool set between the panel and the metal door and pop the clips loose around the edges.
• A “trim removal tool” is a plastic pry tool that helps you pop clips without damaging the panel.

Step 4: Lift the door trim panel off

• Lift the whole panel upward to unhook it from the top edge of the door.
• Disconnect any electrical connectors (window/lock switch) by pressing the tab and pulling apart by hand.
• Use a flashlight to see connector tabs clearly.

Step 5: Peel back the water shield (vapor barrier)

• Carefully peel back the plastic water shield near the mirror area.
• If the sticky sealer comes off messy, use butyl tape later to reseal it.
• Don’t tear it; it prevents water leaks.

Step 6: Unplug the mirror connector (if equipped)

• Find the mirror wiring connector inside the door near the mirror mounting area.
• Press the lock tab and unplug it by hand.
• If the connector is hard to reach, use a flashlight and gently guide it free.

Step 7: Remove the mirror mounting nuts

• Hold the mirror on the outside with one hand so it can’t drop.
• Remove the 3 mounting nuts using a 10mm socket, 1/4" drive ratchet, and 6" socket extension.
• If a nut falls into the door, retrieve it with a magnetic pickup tool.

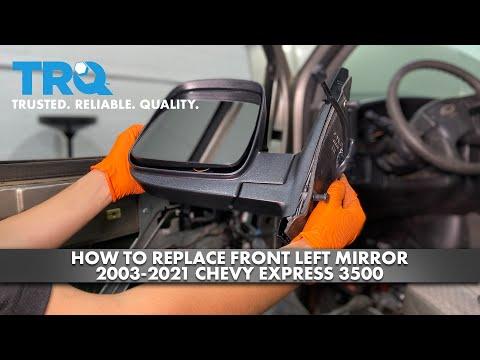

Step 8: Remove the mirror assembly

• Pull the mirror away from the door and guide the wiring through the hole (if equipped).
• Inspect the mounting surface and clean off dirt or old sealer by hand.

Step 9: Install the new mirror

• Feed the wiring through the door opening (if equipped) and seat the mirror on the studs.
• Thread the nuts on by hand first to prevent cross-threading.
• Tighten the nuts evenly using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) using an inch-pound torque wrench (specialty).
• An “inch-pound torque wrench” measures small fastener tightness accurately so you don’t crack plastic or strip studs.

Step 10: Reconnect wiring and reseal the water shield

• Plug the mirror connector back in by hand until it clicks.
• Press the water shield back into place; add butyl tape if it won’t stick.

Step 11: Reinstall the door trim panel

• Reconnect door switch connectors by hand.
• Hook the panel over the top edge of the door and press it down into place.
• Press around the edges to snap all clips in.
• Reinstall screws using a Phillips screwdriver or 7mm socket (whichever you removed).

Step 12: Reinstall the sail panel

• Line it up and press it straight in until the clips snap in place.
• Remove the painter’s tape from the door.

---

✅ After Repair

• If you disconnected the battery, reconnect the negative cable using a 10mm socket.
• Turn the key on and test mirror functions: adjust up/down/left/right, heat (if equipped), and any turn signal indicator (if equipped).
• Check that the window and door locks work before fully closing up tools.
• Take a short drive and confirm the mirror is stable and vibration-free.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $60-$300 (parts only)

You Save: $120-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
