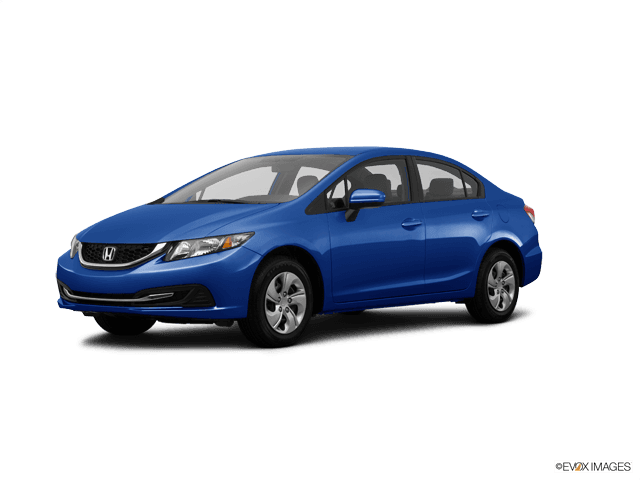

🔧 Civic - Side View Mirror Replacement

You’ll remove the interior door trim, unplug the mirror wiring, and unbolt the mirror from the door. Then you’ll install the new mirror, reconnect everything, and verify all functions (mirror movement, heat, and camera/turn signal if equipped).

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (first time)

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface with the car in Park and the ignition OFF.
• ⚠️ Disconnect the negative battery terminal before unplugging door wiring to reduce risk of shorts and warning lights.
• ⚠️ Support the door panel so it doesn’t hang by the wiring harness.
• ⚠️ Don’t pull on wires; pull on connectors (the plastic plugs).
• ⚠️ If your mirror has the passenger-side camera, handle it gently and keep the lens clean.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4")
• Phillips #2 screwdriver
• Trim removal tool set (plastic) (specialty)
• Pick tool (specialty)
• Torque wrench (in-lb capable)
• Needle-nose pliers
• Painter’s tape (1")
• Shop towels
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left/driver or right/passenger, matched to options) - Qty: 1
• Door trim panel retainers (clips) - Qty: 5-10
• Mirror mounting gasket (if not included with mirror) - Qty: 1
• Butyl tape (weather-seal strip) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn ignition OFF, and open the window on the side you’re working on.
• Use painter’s tape (1") to protect the painted door edge and the area below the mirror.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Trim tool = plastic pry tool to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the mirror “sail” trim (small triangle cover)

• Use a trim removal tool set (plastic) (specialty) to gently pry off the interior triangular trim at the front top corner of the door (by the mirror).
• If it has a small clip tether, release it with a pick tool (specialty).

Step 2: Remove the door panel fasteners

• In the interior door pull/handle pocket area, remove the cover with a trim removal tool set (plastic) (specialty).
• Remove the exposed screw(s) using a Phillips #2 screwdriver.
• At the bottom/edge of the door panel, remove any additional screw(s) using a Phillips #2 screwdriver.

Step 3: Pop the door panel clips loose

• Slide a trim removal tool set (plastic) (specialty) between the door panel and the metal door.
• Pry near each clip location until it pops free (you’ll hear a snap). Work around the sides and bottom.
• Pry near clips, not in the middle.

Step 4: Lift the door panel up and disconnect wiring

• Lift the whole door panel straight up to unhook it from the window ledge.
• Support the panel with one hand (or rest it on a box), then unplug connectors by pressing the tab and pulling the plug:
  • Use a pick tool (specialty) only if the tab is stubborn (don’t break it).
• If equipped with a door handle cable, unhook it carefully (a cable is a small wire with a plastic end that snaps into the handle).

Step 5: Peel back the vapor barrier (water shield)

• Near the mirror corner, gently peel back the plastic water shield enough to access the mirror mounting area.
• If the sticky seal (butyl) stretches, use shop towels to keep it clean and reuse it, or plan to replace it with butyl tape.

Step 6: Unplug the mirror harness

• Locate the mirror electrical connector near the front upper door area.
• Press the connector lock tab and unplug it (use needle-nose pliers only to assist grip, not to crush it).
• Pull on the connector, not the wires.

Step 7: Remove the mirror mounting nuts

• Hold the mirror with your outside hand so it doesn’t fall or scratch paint.
• Use a 10mm socket, 6" socket extension (1/4"), and 1/4" drive ratchet to remove the three mounting nuts.
• Remove the mirror from the outside of the door.

Step 8: Transfer parts if needed (gasket/trim pieces)

• If the new mirror does not include the foam gasket, transfer/install the mirror mounting gasket so it seals against wind and water.
• Wipe the door mounting surface clean with shop towels.

Step 9: Install the new mirror

• Set the new mirror in place from the outside and align the studs through the door.
• Start all three nuts by hand first to avoid cross-threading.
• Tighten the nuts using a 10mm socket and 1/4" drive ratchet, then finish with a torque wrench (in-lb capable) to: Torque to 9 Nm (80 in-lb).

Step 10: Reconnect mirror wiring (and camera/turn signal if equipped)

• Plug the mirror connector back in until it clicks.
• If your mirror has a passenger-side camera, make sure the connector is fully seated and routed exactly like before so it won’t rub the window track.

Step 11: Reinstall the vapor barrier

• Press the plastic water shield back onto the door using the existing adhesive.
• If the seal is damaged or won’t stick, apply butyl tape and press the shield firmly all the way around.

Step 12: Reinstall the door panel

• Reconnect all door panel connectors (window switch, lock switch, etc.) by pushing them in until they click.
• Hang the top of the door panel onto the window ledge first, then press downward to seat it.
• Use your palm to press around the edges to snap all clips back in.
• Reinstall screws using a Phillips #2 screwdriver (snug only). If using a torque wrench: Torque to 2 Nm (18 in-lb).
• Reinstall the sail trim by pressing it back into place.

Step 13: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket and tighten securely.

---

✅ After Repair

• Turn the ignition ON and test mirror movement in all directions using the mirror switch.
• If equipped, test mirror heat (rear defogger on) and verify the glass warms after a few minutes.
• If equipped, test the mirror turn signal and blind spot camera image; confirm the picture is stable and not angled oddly.
• Drive at highway speed and listen for wind noise; if present, recheck gasket seating and nut torque.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, more if camera-equipped)

DIY Cost: $90-$450 (parts only, depends on options/paint match)

You Save: $160-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
