🔧 Escape - Side View Mirror Replacement

You’ll remove the inner door trim panel to access the mirror wiring connector and the three mirror mounting nuts. Then you’ll swap the mirror assembly, reconnect the harness, and test all mirror functions before reassembling the door.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ The front door contains a side airbag; disconnect the battery and wait before unplugging door wiring.
• ⚠️ Support the mirror while removing the last nut so it doesn’t fall and chip paint.
• ⚠️ Keep the window fully up while working; avoid pinching the glass run channel.
• ⚠️ Battery disconnect is recommended: remove the negative cable and wait 10 minutes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 1/4" drive ratchet
• 1/4" drive extension (3"-6")
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T20 screwdriver
• Torx T25 screwdriver
• Trim removal tool (plastic)
• Pick tool
• Torque wrench (in-lb)
• Painter’s tape
• Shop towels
• Flashlight
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (LH or RH, matched to options: heated/turn signal/puddle lamp/memory) - Qty: 1
• Door trim panel clips - Qty: 2-6

---

📋 Before You Begin

• Park your Escape on level ground and turn the ignition OFF.
• Lower the window slightly, then raise it fully (this gives you room to grab the panel without hitting the glass).
• Use 10mm wrench to disconnect the negative battery cable, then wait 10 minutes.
• Apply painter’s tape along the door edge near the mirror to help prevent paint chips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel (mirror trim)

• At the top front of the door (by the mirror), use a trim removal tool (plastic) to pop off the small triangular trim panel.
• If there’s a small connector behind it (some trims do), release the lock with a pick tool and unplug it.

Step 2: Remove the door handle/armrest screws

• Use a pick tool to lift the small covers in the interior pull handle/armrest area.
• Remove the exposed fasteners using a 7mm socket and 1/4" drive ratchet.
• If equipped, remove any additional door-trim screws near the handle area using a Torx T20 screwdriver.

Step 3: Release the door trim panel

• Starting at the bottom edge, slide a trim removal tool (plastic) between the panel and the door and pop the clips free.
• Work around the sides until all clips release. Pull straight out to save clips.

Step 4: Lift the panel off and disconnect wiring

• Lift the door panel upward to unhook it from the window ledge.
• Unplug the door switch connectors by releasing the locking tabs with a pick tool.
• If equipped, disconnect the courtesy/puddle lamp connector at the bottom of the panel.
• For the door handle cable: rotate the cable housing out of its bracket, then unhook the cable end from the handle.

Step 5: Disconnect the mirror electrical connector

• Locate the mirror harness connector inside the door near the mirror area.
• Release the lock with a pick tool and unplug the connector.

Step 6: Remove the mirror mounting nuts

• Support the mirror from the outside with one hand and a shop towel under it.
• Remove the three mirror nuts using a 10mm socket, 1/4" drive ratchet, and extension (3"-6").

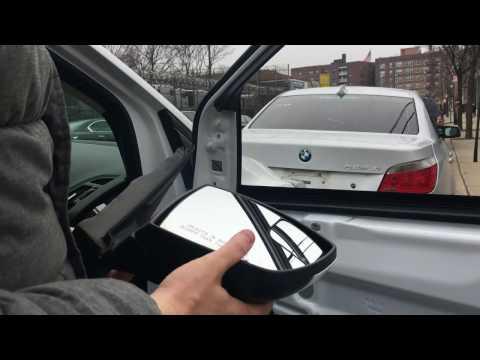

Step 7: Remove the mirror assembly

• Feed the mirror harness and grommet through the door opening and remove the mirror.
• Clean the mounting surface using shop towels.

Step 8: Install the new mirror

• Feed the harness/grommet through the opening and set the mirror onto the door.
• Start all three nuts by hand to avoid cross-threading.
• Tighten the nuts evenly using a 10mm socket and 1/4" drive ratchet.
• Final-tighten using a torque wrench (in-lb): Torque to 10 Nm (89 in-lb).

Step 9: Reconnect wiring and reassemble the door panel

• Plug in the mirror connector until it clicks (use flashlight to verify it’s fully seated).
• Reconnect all door panel electrical connectors and the door handle cable.
• Hang the panel on the top window ledge, then press the panel in to engage clips.
• Reinstall fasteners using a 7mm socket and any Torx fasteners using a Torx T20 screwdriver.
• Snap the sail panel back on by hand.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• Turn ignition ON and test mirror movement (up/down/left/right).
• If equipped, test heated mirrors, turn signal on the mirror, puddle lamp, and memory positions.
• Verify the window and door lock switches work.
• Drive and listen for wind noise; if present, recheck mirror seating and nut torque.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹12,000 (parts + labor, per side)

DIY Cost: ₹2,500-₹9,500 (parts only, per side)

You Save: ₹1,500-₹4,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
