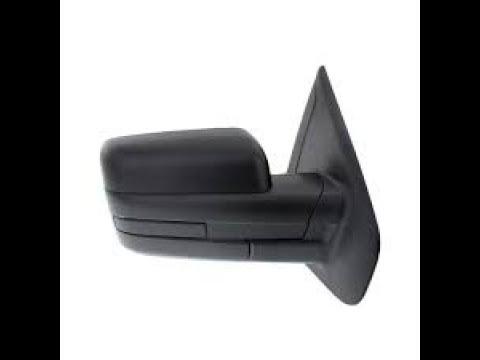

🔧 Side View Mirrors - Replacement

Replacing the side view mirrors on your F-150 means removing the interior trim at each front door, unplugging the mirror connector, and swapping in the new assembly. This is usually a straightforward job, but take care not to crack the door panel or drop the mirror while removing the last fastener.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable before unplugging door wiring.
• Support the mirror with one hand while removing the last mounting nut.
• Be careful around the door trim clips; they can break if pried too hard.
• If your mirror has power heat or turn signals, make sure the connector is fully seated during reassembly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 8mm socket
• 1/4-inch ratchet
• Trim panel tool
• Phillips screwdriver
• Torx T20 screwdriver
• Flat blade screwdriver
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Qty: 1 per side
• Door trim clip set - Qty: 1 set
• Foam mirror seal - Qty: 1 per side

---

📋 Before You Begin

• Lower the window fully on the door you are working on.
• Turn the ignition off and remove the key.
• Disconnect the negative battery cable.
• Have a small container ready for trim screws and clips.
• Work one side at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door sail panel

• Use a trim panel tool to gently pry off the small triangular trim cover at the front upper corner of the door.
• If equipped, disconnect the speaker or tweeter connector from the panel.

Step 2: Remove the interior door trim

• Use a 7mm socket and Phillips screwdriver to remove the visible screws from the door panel.
• Use the trim panel tool to release the clips around the edge of the door panel.
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect any electrical connectors for switches or lights.

Step 3: Disconnect the mirror wiring

• Peel back the water shield carefully if it blocks access to the mirror connector.
• Press the connector tab and unplug the mirror harness.

Step 4: Remove the mirror fasteners

• Use an 8mm socket with a 1/4-inch ratchet to remove the mirror mounting nuts.
• Hold the mirror from the outside while removing the last nut so it does not fall.
• Remove the mirror assembly from the door.

Step 5: Install the new mirror

• Place the new mirror into position on the door.
• Start all mounting nuts by hand first.
• Use the 8mm socket to tighten the nuts evenly.
• Torque to 8 Nm (71 ft-lbs).

Step 6: Reconnect and reassemble the door

• Plug the mirror connector back in until it clicks.
• Reinstall the water shield if it was moved.
• Reconnect the door panel electrical connectors.
• Hook the door panel on the top ledge, then press the clips back in place.
• Install the screws with the 7mm socket and Phillips screwdriver.
• Reinstall the sail panel.

Step 7: Repeat for the other side if needed

• If both mirrors are being replaced, repeat the same steps on the opposite door.
• Replace in pairs for a matched look.

---

✅ After Repair

• Reconnect the negative battery cable.
• Turn the key on and test mirror adjustment, heat, and turn signal functions if equipped.
• Check that the mirror glass is secure and the housing does not wobble.
• Make sure the door panel sits flush and no clips are loose.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $80-$300 (parts only)

You Save: $170-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
